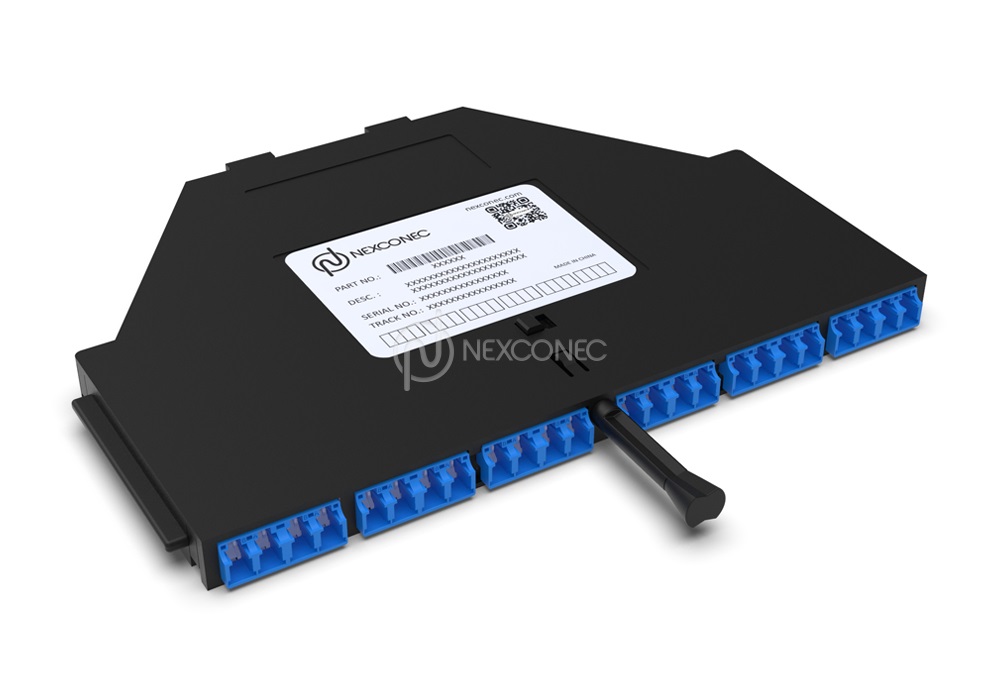

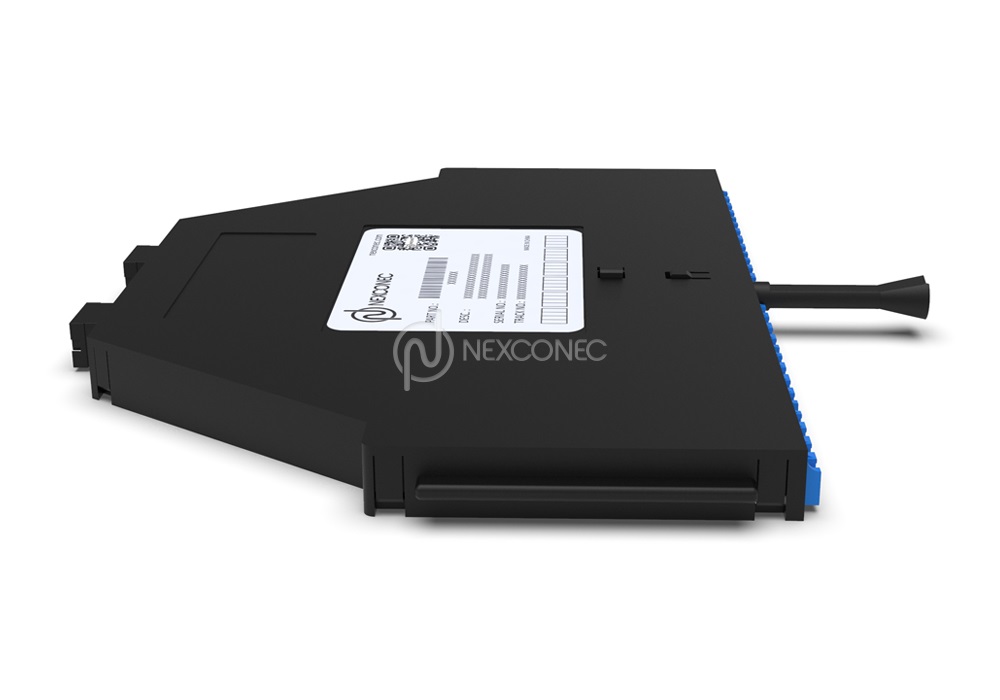

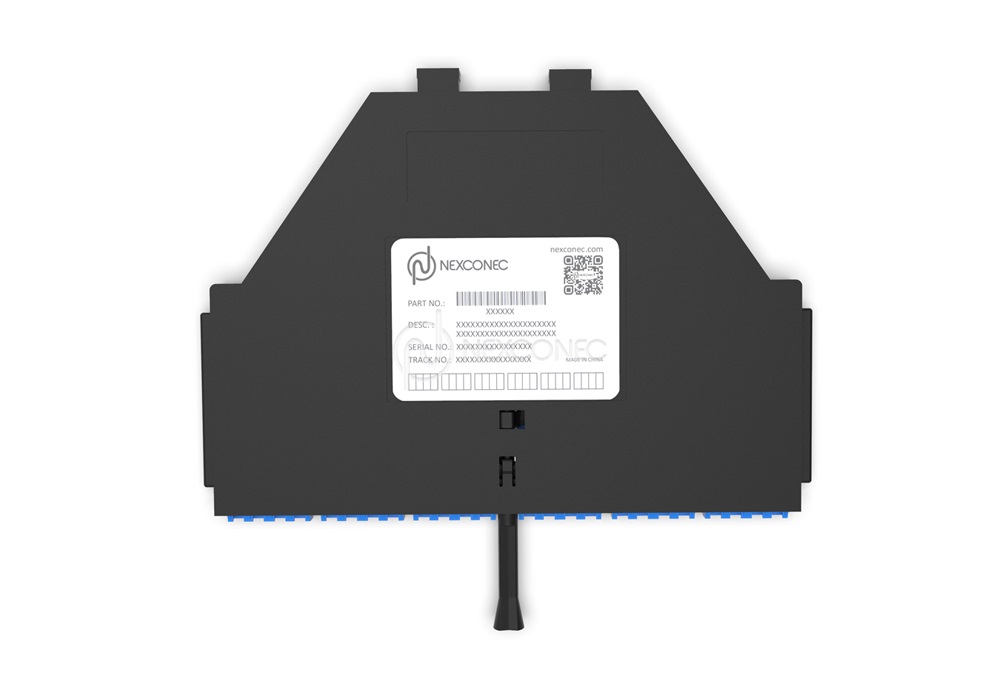

NGX CASSETTE MTP®/MPO (BASE-12) - NGXCAxx
NEXCONEC® NGX cassettes are pre-terminated modules MPO-LC/SC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easy plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144F. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Single mode and Multimode fiber options
- Available in 12, and 24 fiber count
- Available in Polarity A/C or Universal Bx as per TIA/EIA-568-C.3
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
- Flame retardant PC+ABS material
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Single mode and Multimode fiber options
- Available in 12, and 24 fiber count
- Available in Polarity A/C or Universal Bx as per TIA/EIA-568-C.3
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
- Flame retardant PC+ABS material
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus Wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 10G/ 40G to 10G transition
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Footprint | NGX |
| Dimensions (WxDxH) | 191.20 x 130 x 12.60 mm |
| Material | PC+ABS |
| Housing Color | Black |
| Application | NGX Panels |
| Fiber Capacity | 24FO in LC, 12FO in SC |

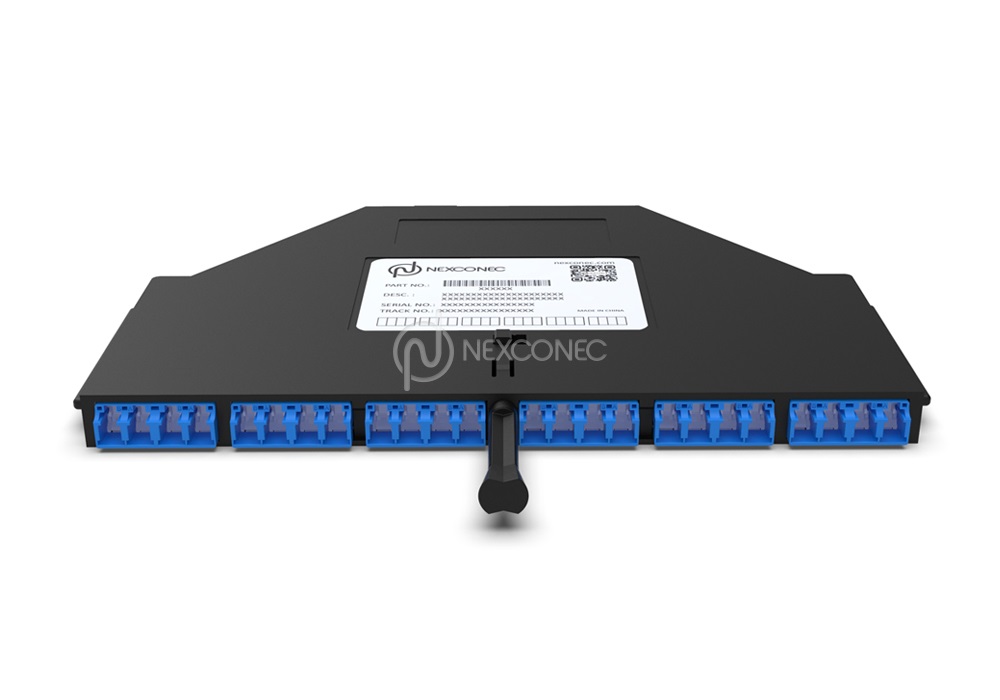

| Front Adapter Type | 6x LC Quad / 6x SC Duplex |

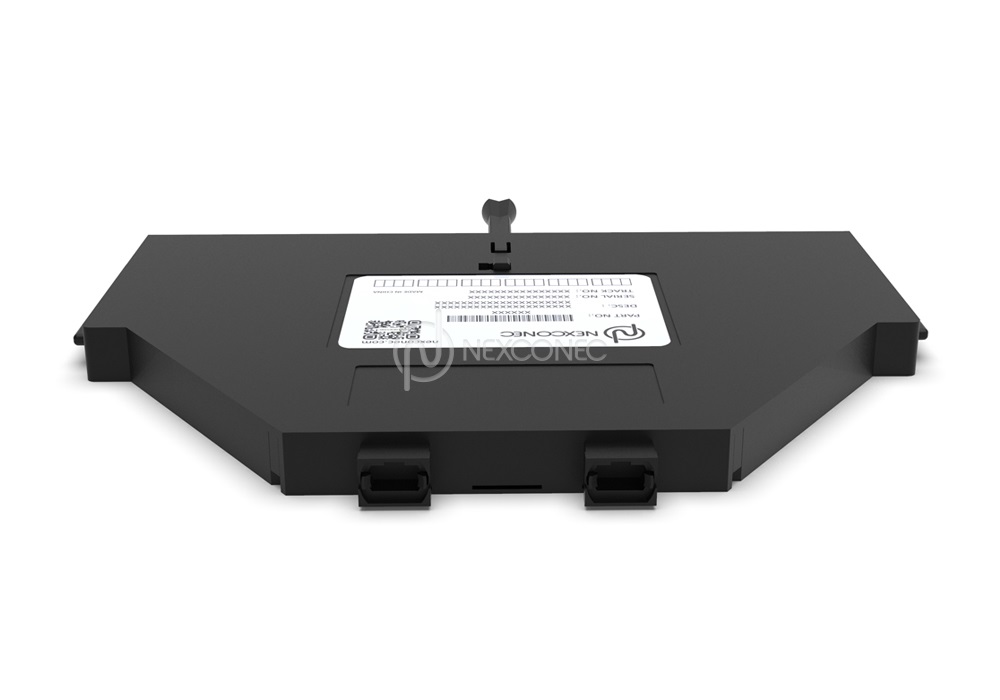

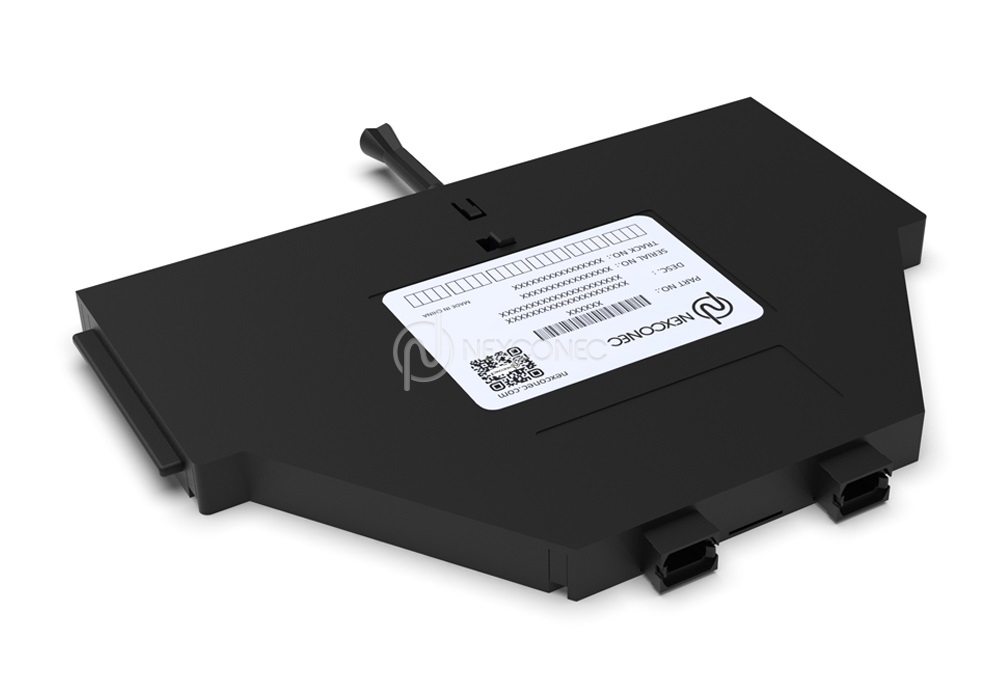

| Rear Adapter Type | 2x MTP®/MPO (Base-12) |
| Polarity | Polarity A/C or Universal Bx as per TIA/EIA-568-C.3 |
| Compliance | RoHS, REACH & SvHC |
| Operating Temperature | -10 ~ +60°C |
| Weight | 0.25 Kg |
PERFORMANCE
| Parameters | Units | SM MPO | SM LC/SC | MM MPO | MM LC/SC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 | ≤ 0.60 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Part Number | Product Description |
|---|---|
| NGXCA01 | NGX Module (Base-12) MPO (ELITE) M-LC/UPC Premium 24FO SMF OS2 Polarity A/C |
| NGXCA01U | NGX Module (Base-12) MPO (ELITE) M-LC/UPC Premium 24FO SMF OS2 Polarity Universal Bx |
| NGXCA02 | NGX Module (Base-12) MPO (ELITE) M-LC/APC Premium 24FO SMF OS2 Polarity A/C |
| NGXCA02U | NGX Module (Base-12) MPO (ELITE) M-LC/APC Premium 24FO SMF OS2 Polarity Universal Bx |
| NGXCA03 | NGX Module (Base-12) MPO (ELITE) M-LC Premium 24FO MM OM3/4 Polarity A/C |
| NGXCA03U | NGX Module (Base-12) MPO (ELITE) M-LC Premium 24FO MM OM3/4 Polarity Universal Bx |
| NGXCA04 | NGX Module (Base-12) MPO (ELITE) M-SC/UPC Premium 12FO SMF OS2 Polarity A/C |
| NGXCA05 | NGX Module (Base-12) MPO (ELITE) M-SC/APC Premium 12FO SMF OS2 Polarity A/C |
| NGXCA06 | NGX Module (Base-12) MPO (ELITE) M-SC Premium 12FO MM OM3/4 Polarity A/C |
| NGXCA07 | NGX Module (Base-12) MPO (ELITE) M-LC Premium 24FO MM OM5 Polarity A/C |
| NGXCA07U | NGX Module (Base-12) MPO (ELITE) M-LC Premium 24FO MM OM5 Polarity Universal Bx |
