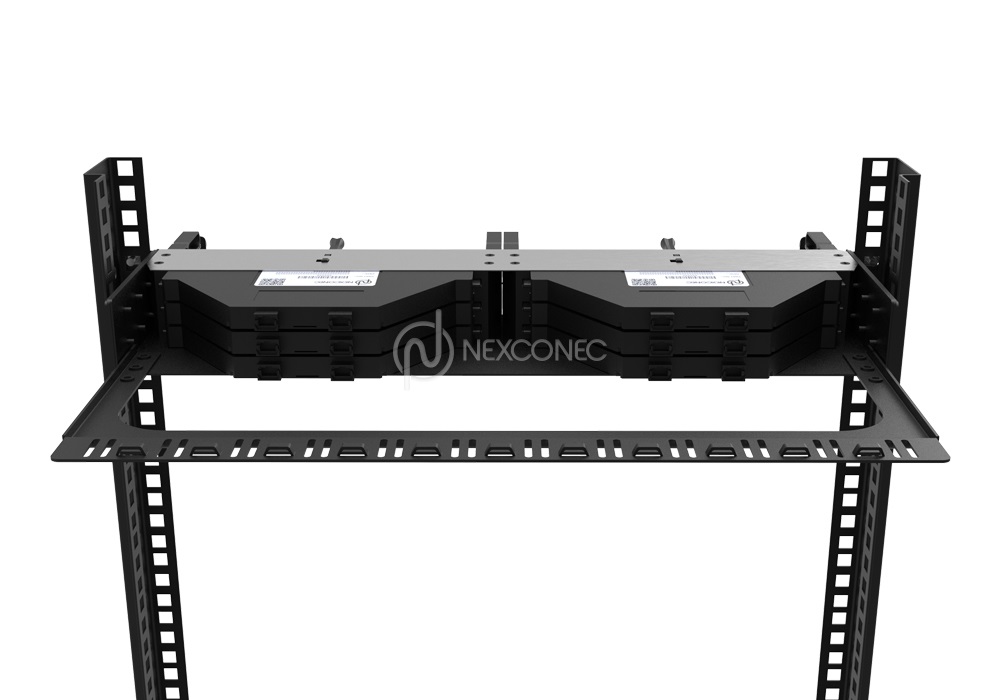

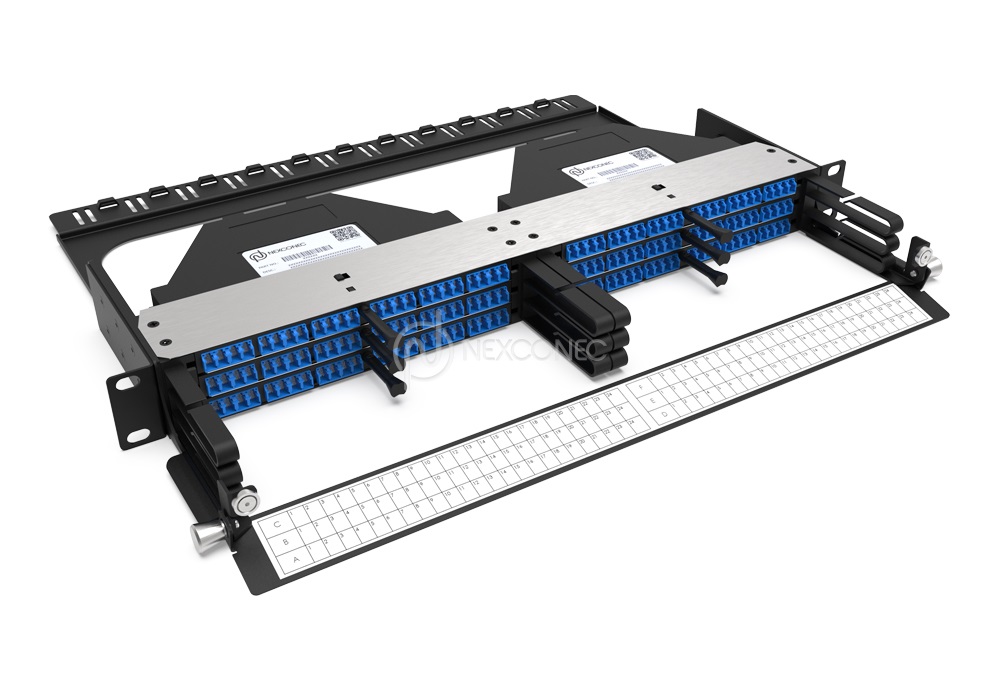

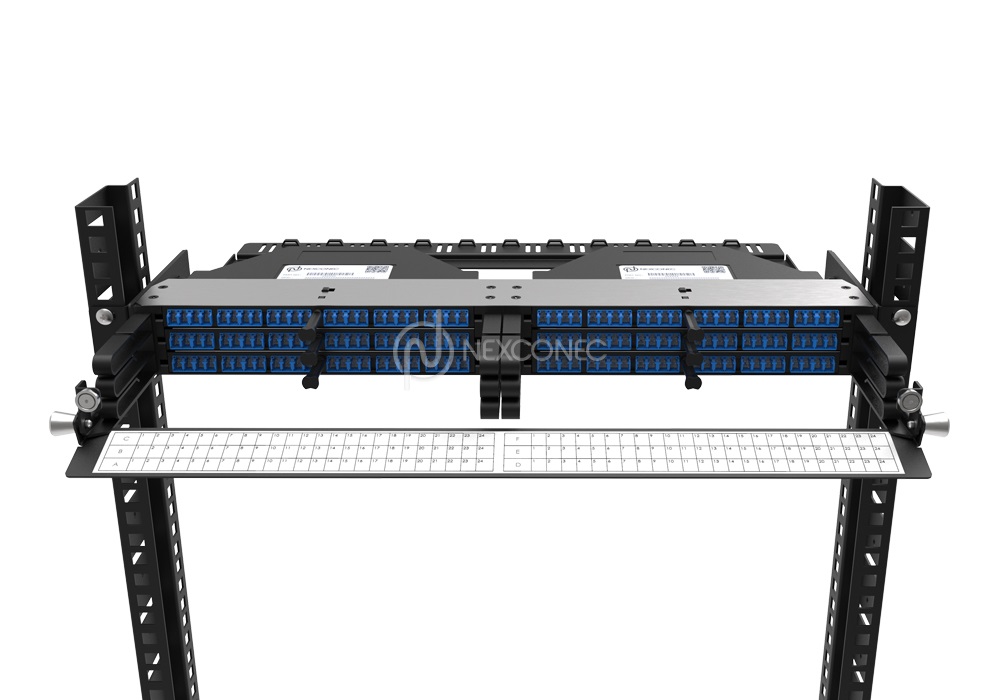

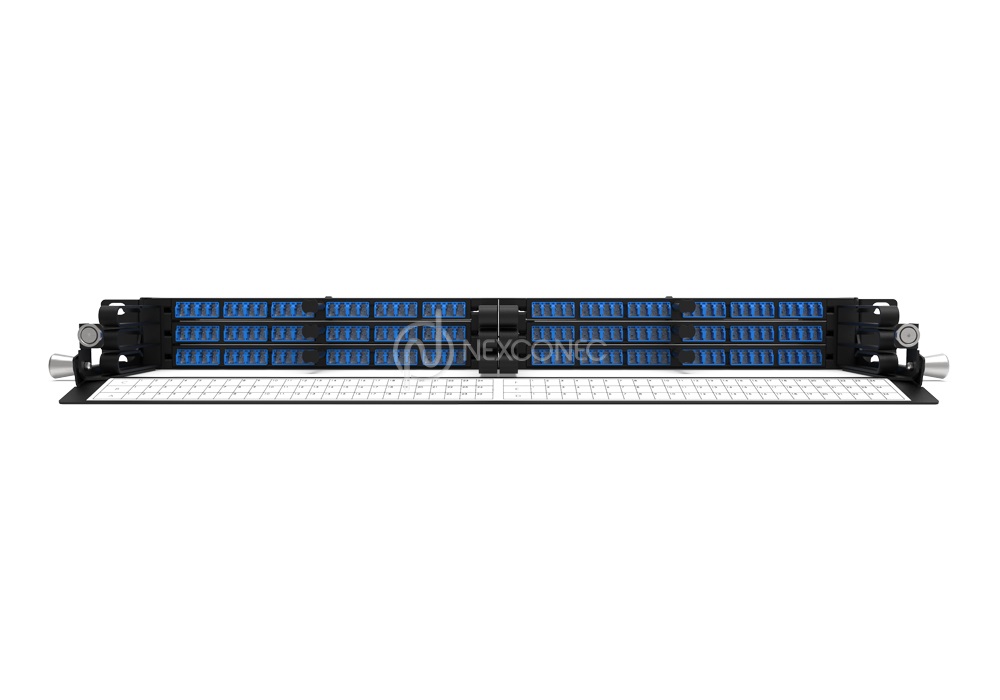

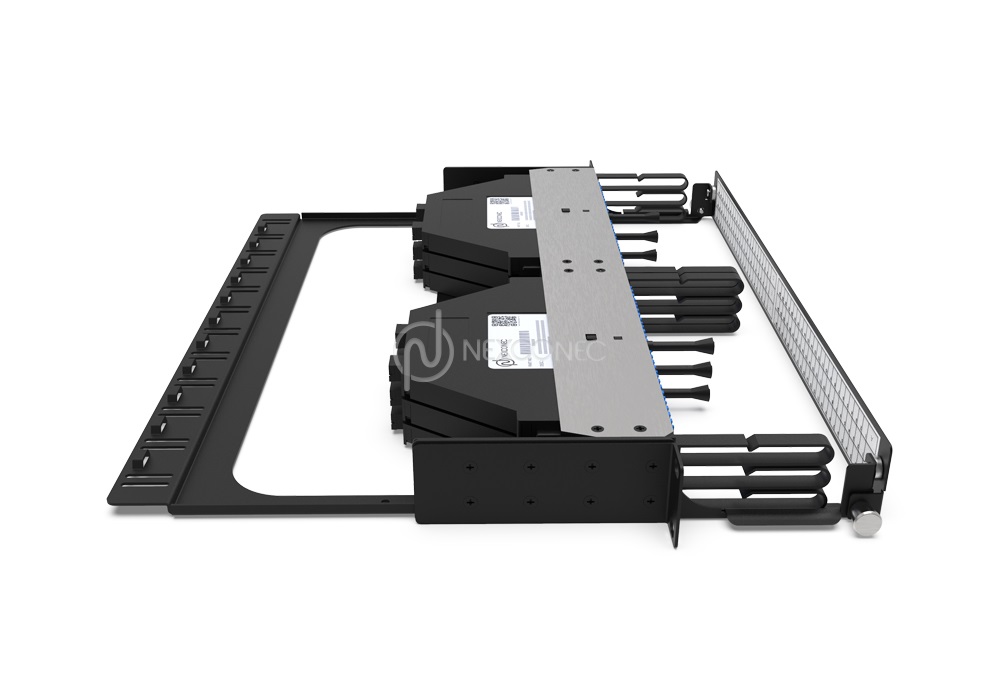

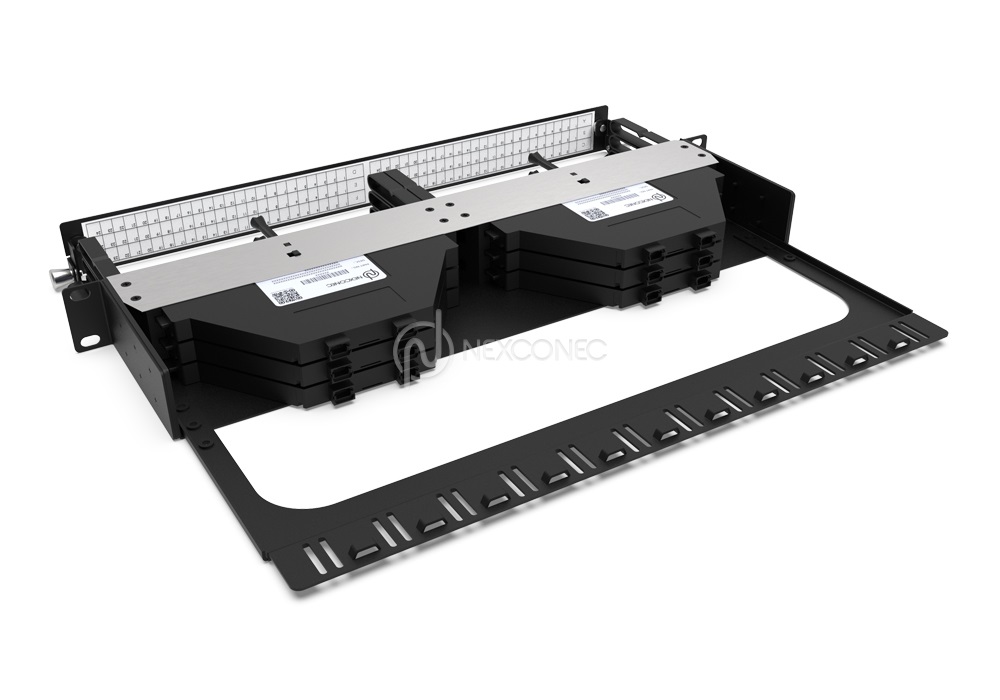

1U NGX HD MODULAR PANEL (UP TO 144FO) - NGXPP01

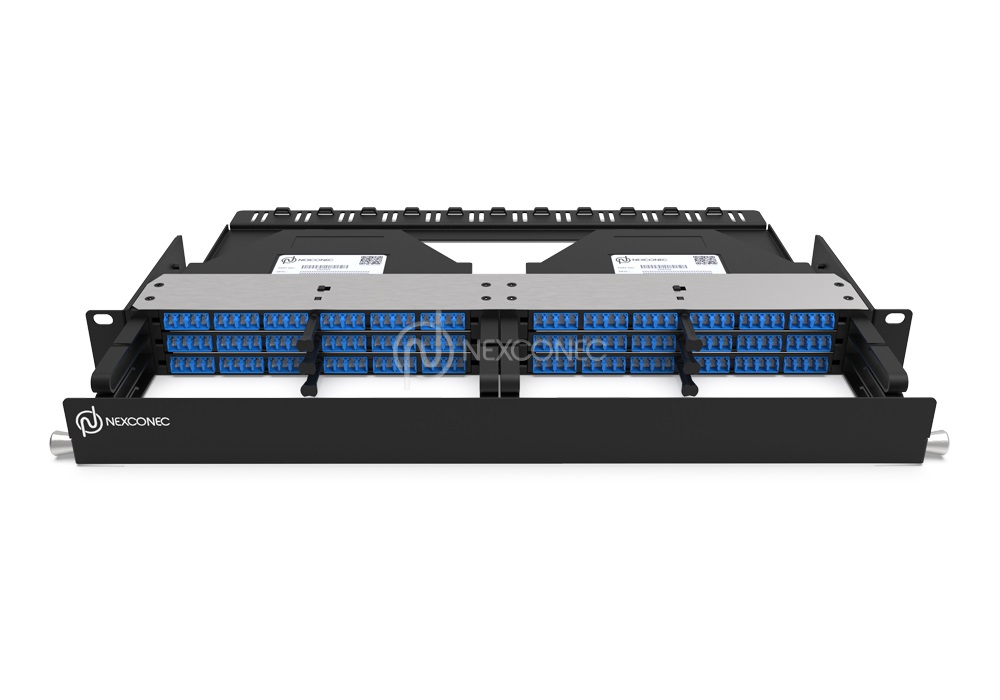

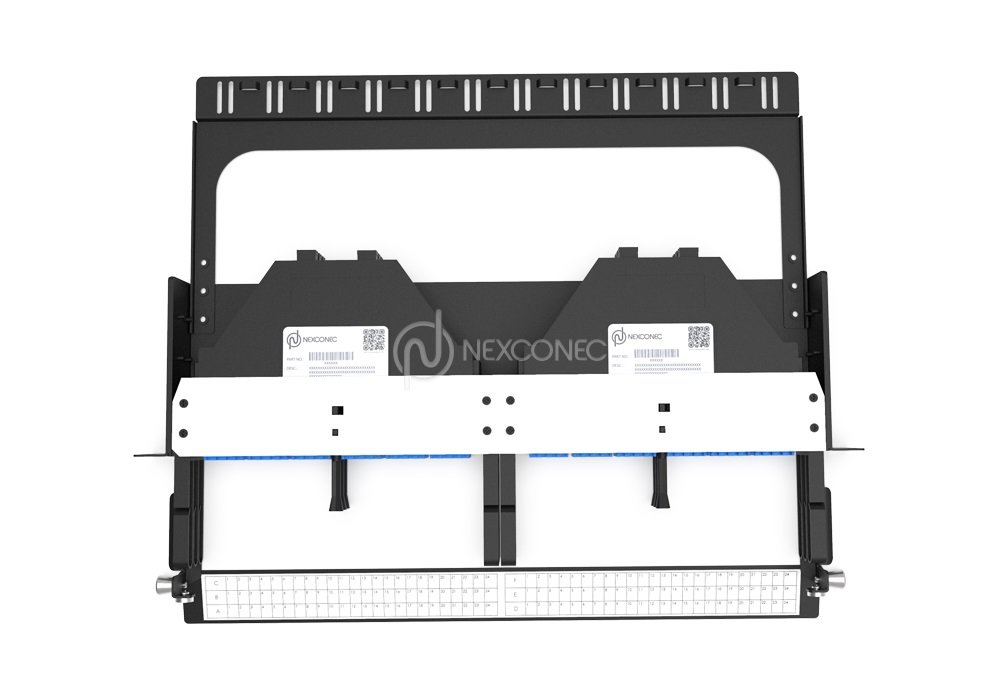

NEXCONEC® NGXPP01 is a high-density 1U modular patch panel supporting up to six NGX modules for a maximum of 144 LC fiber connections. Designed for versatile network applications, it accommodates MPO-based systems, pre-terminated assemblies, patching, transition modules (40G-10G), and splicing solutions. The panel features easy front access with a hinged door for cable management and protection, along with rear access for simplified installation.

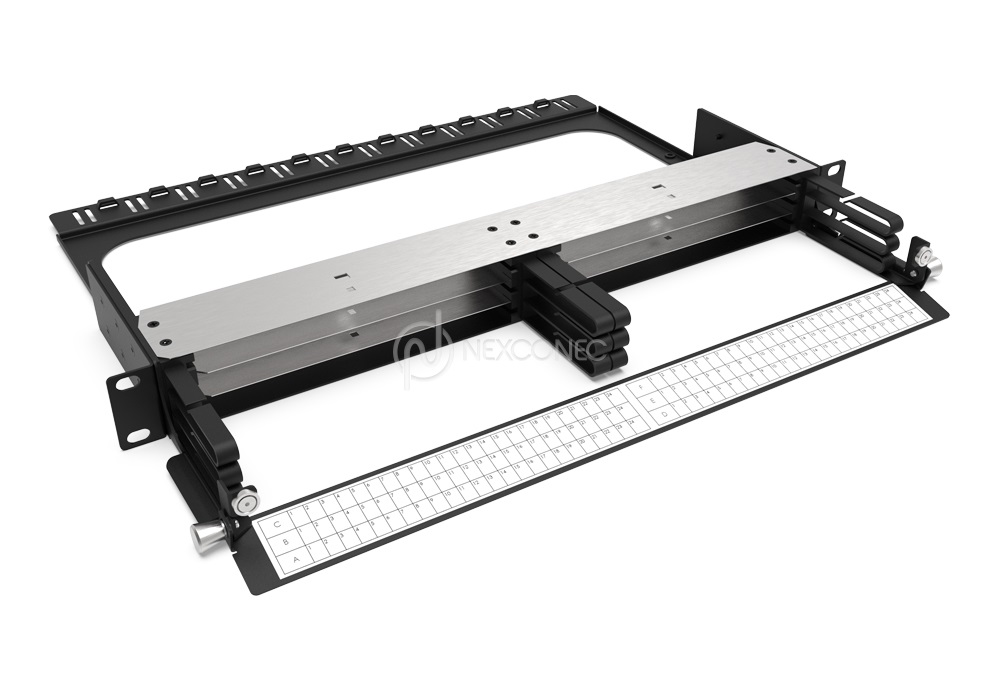

Supplied unloaded, it enables flexible, on-demand configuration using separately ordered modules and plates.
PRODUCT HIGHLIGHTS
- 6 Slots NGX in 1U space
- Up to 144FO in LC
- Modular with MTP®/MPO, Splicing, Direct Patching, Pre-terminated module or Copper module
- Modular Flexibility and Robust Construction
- Open chassis free access module installation with front and rear access
- RoHS, REACH and SVHC
PRODUCT INFORMATION
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
 VISIO.vsdx |
Download |
FEATURES
- 6 Slots NGX in 1U space
- Up to 144FO in LC
- Modular with MTP®/MPO, Splicing, Direct Patching, Pre-terminated module or Copper module
- Modular Flexibility and Robust Construction
- Open chassis free access module installation with front and rear access
- RoHS, REACH and SVHC
APPLICATIONS
- Datacenter & Enterprise network
- Indoor applications
- Custom Network Configurations
- Accepts Indoor and Outdoor Cables
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Rack 19” |
| Opening Type | Fixed |
| Access Type | Front and Rear loading of modules |
| Front Cable Management | Removable Hinged drop-down door |
| Cable Entry Direction | Removable rear manager |
| Rear Cable Management | Cable manager |
| Height Unit | 1U |
| Slot Type | NGX Modules |
| Number of Slots | 6 Slots |
| Fiber Capacity | 144FO in LC |
| Material | Metal Part: Cold Rolled Steel & Stainless Steel | Plastic Part: PC+ABS |
| Housing Color | Metal Part: Black (RAL 9004) | Plastic Part: Grey Blue (RAL 5008) |
| Application | Indoor IP20 |
| Lockable | Optional |
| Dimensions (W x D x H) | 485.5 x 415.4 x 44 mm |
| Weight | 3KG |
| Material Compliant | RoHS, REACH / SVHC |
| Part Number | Product Description |
|---|---|
| NGXPP01 | 1U 6 Slots NGX Modular Patch Panel - Unloaded |
