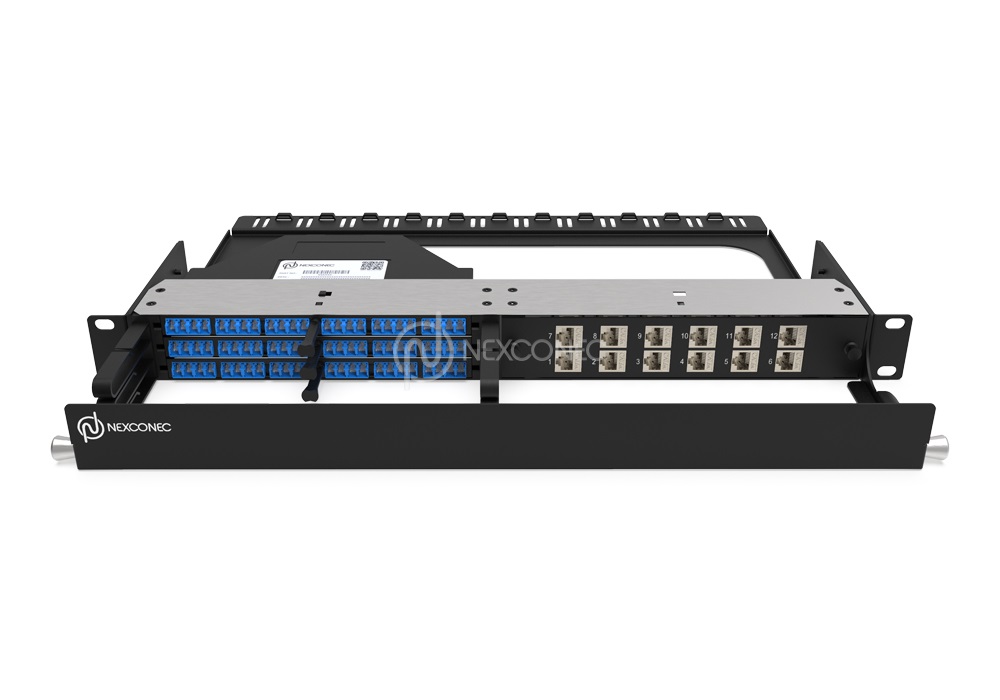

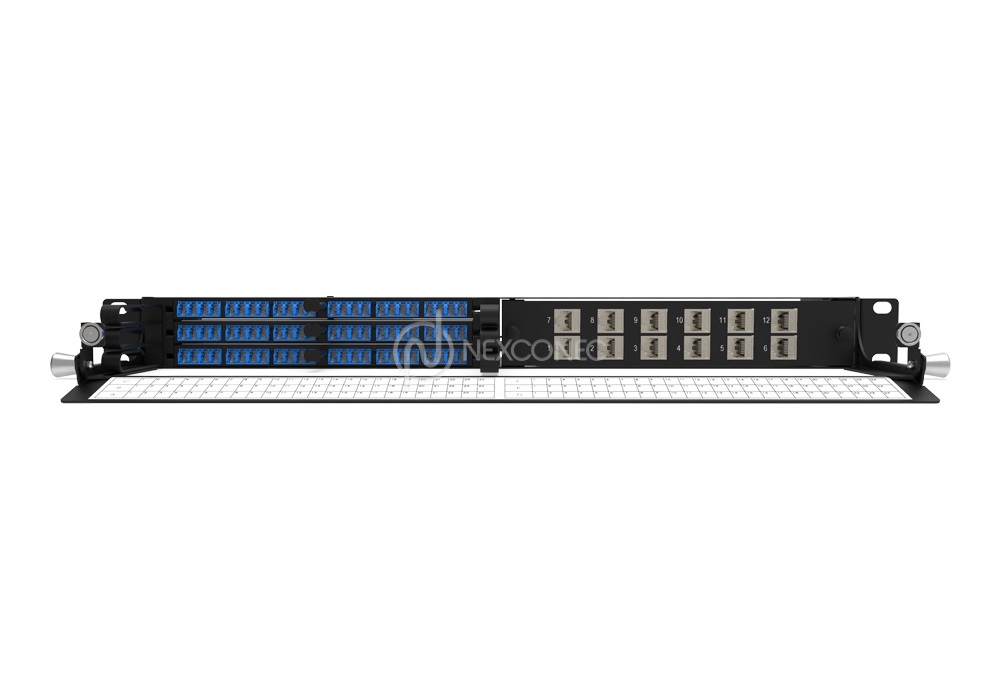

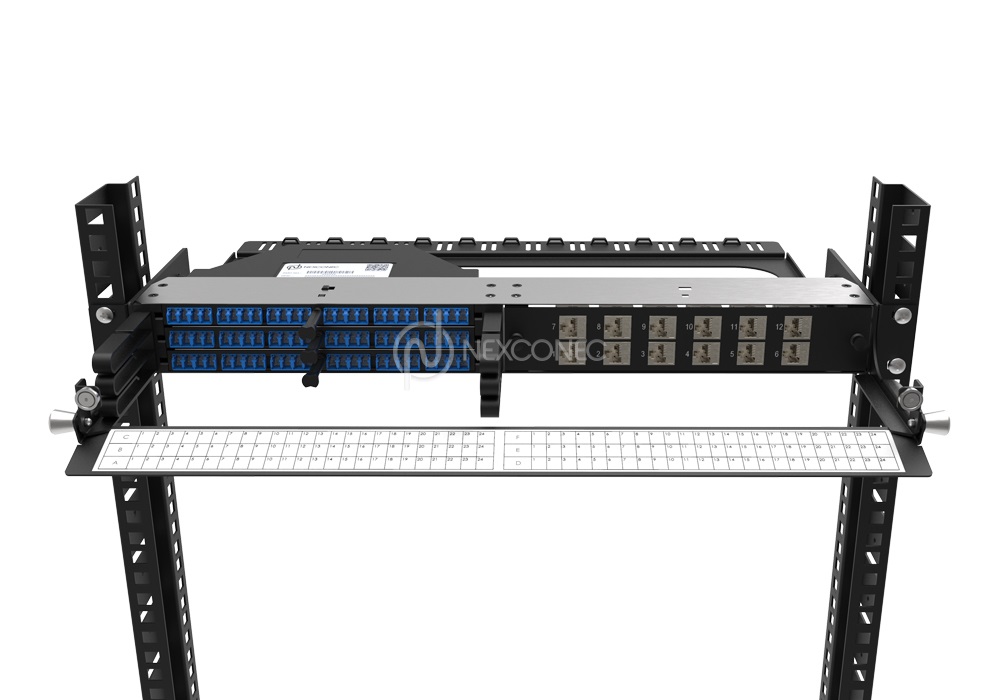

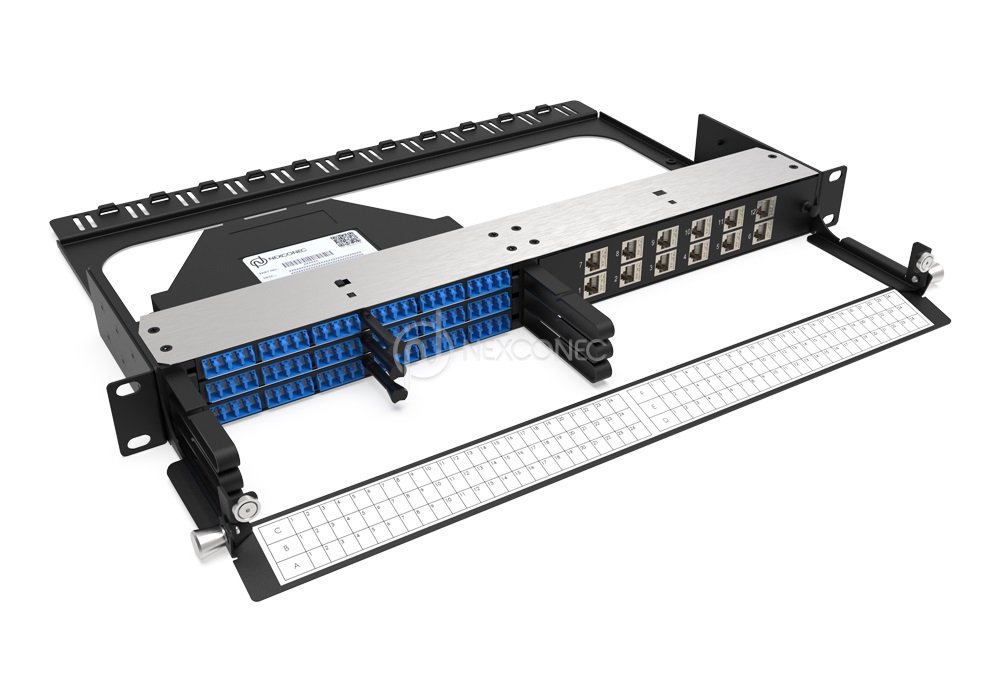

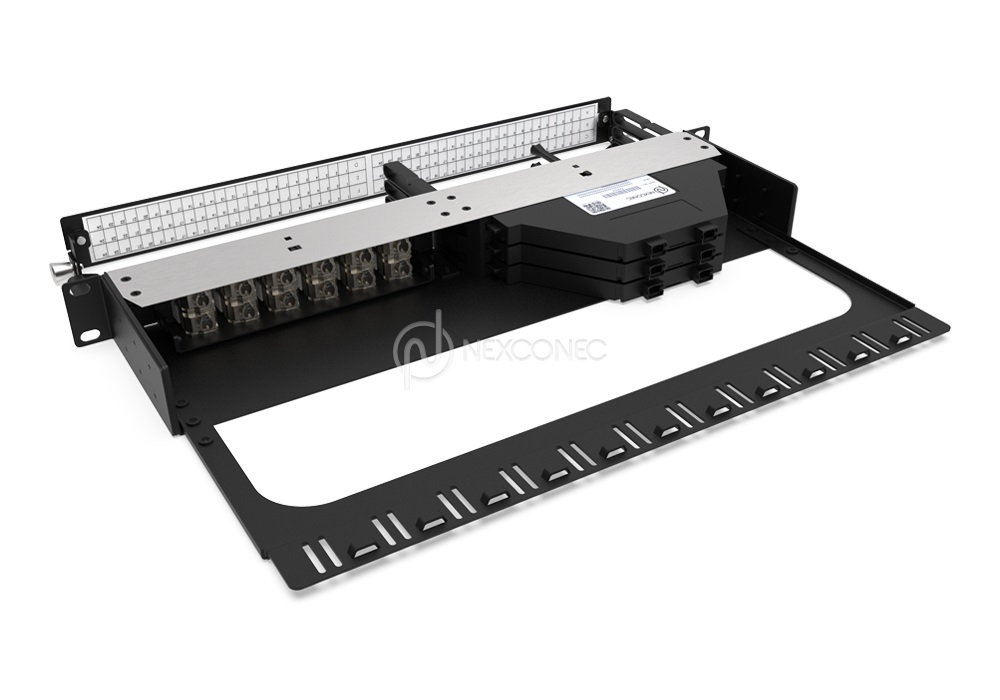

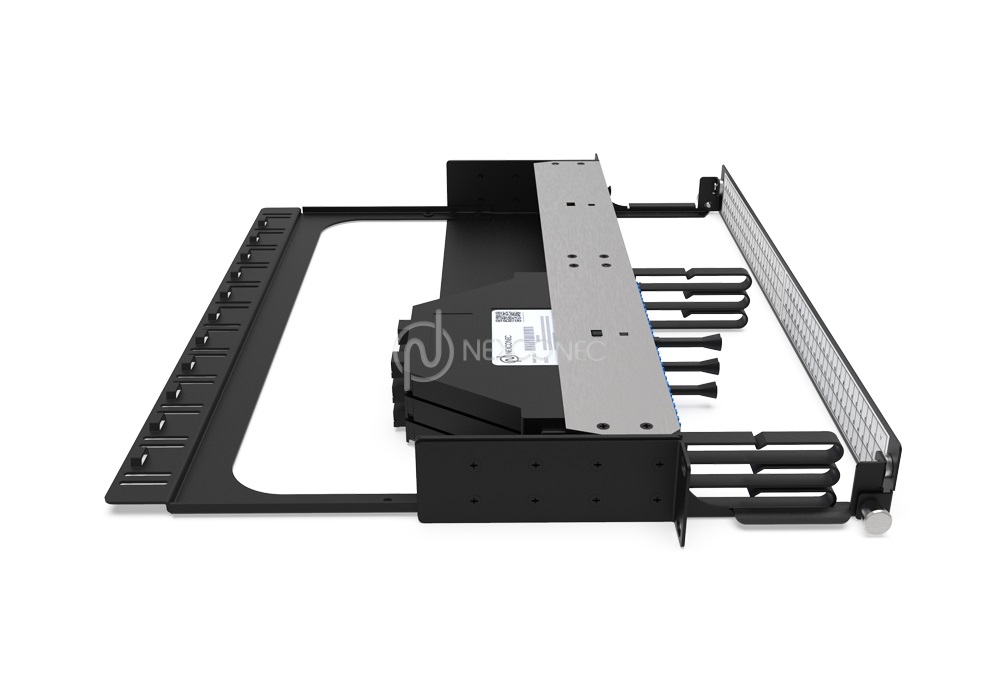

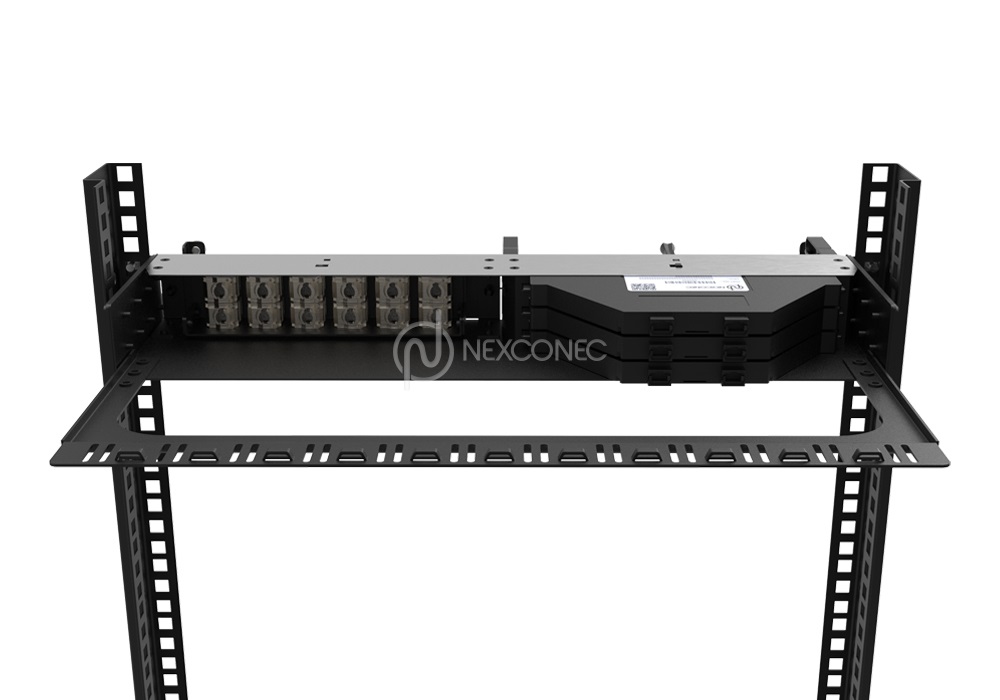

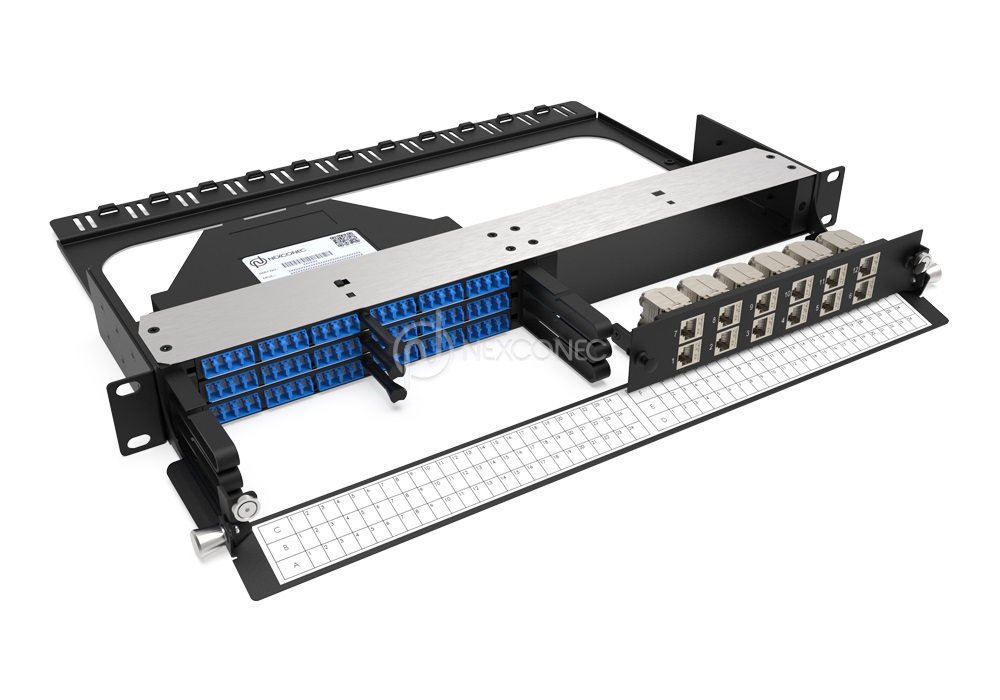

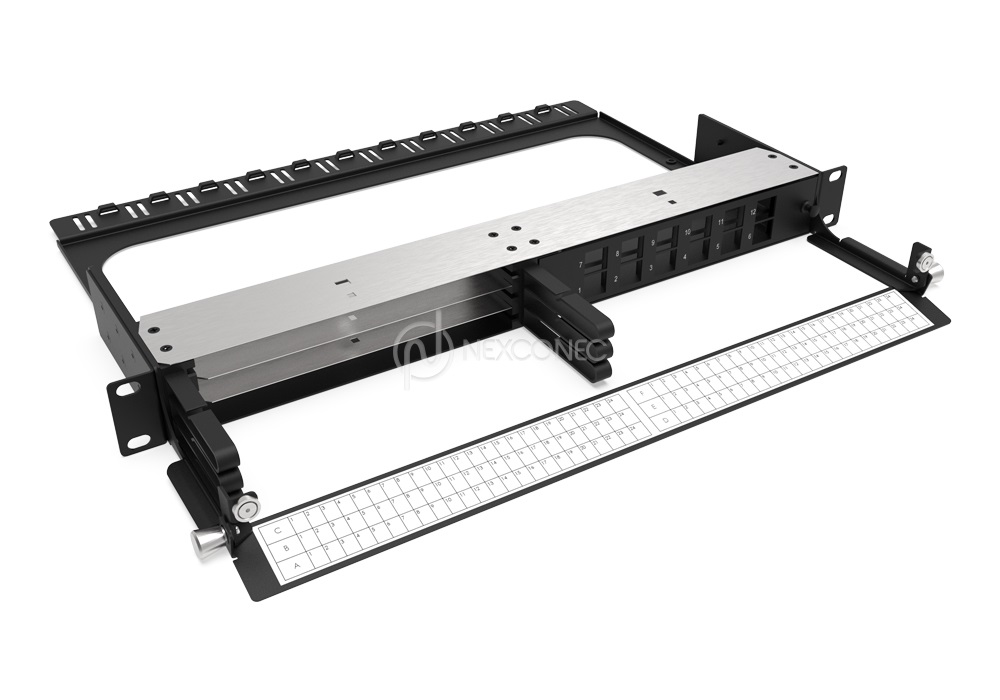

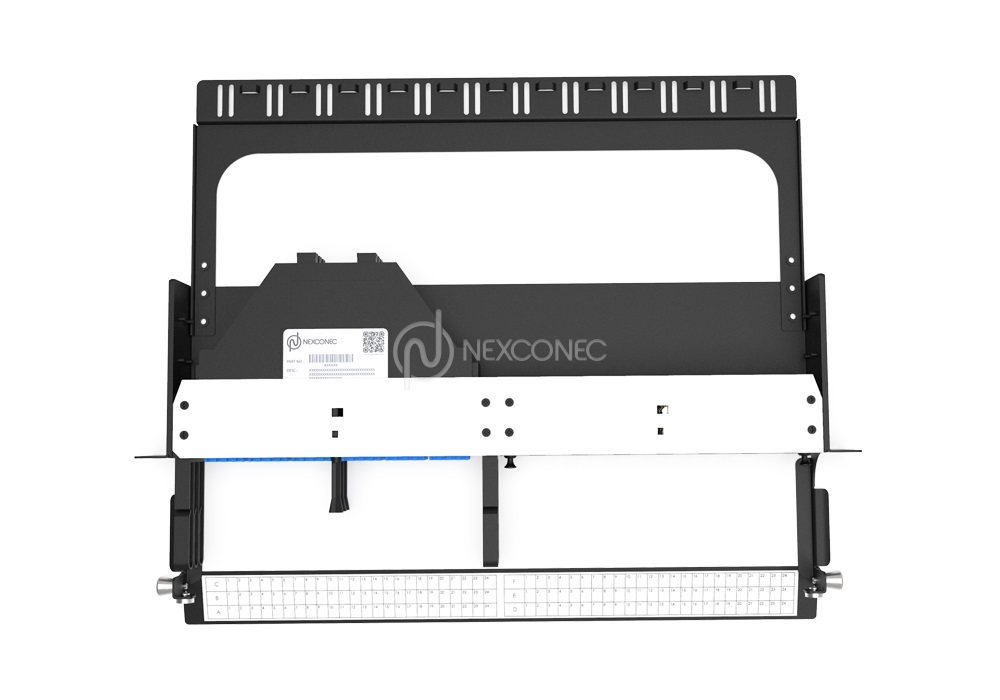

1U NGX Hybrid Fiber & Copper Modular Panel – NGXPP03
NEXCONEC® NGX High-Density Frame accepts up to 3 NGX Modules for a total of 72FO with LC configuration and 12 Keystone jacks. Modular Fiber panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru, Next-Gen Transition modules 40G-10G, or conventional splicing. Copper module available with Cat6, Cat6A Shielded & Unshielded.
Easy front access with cable manager and removable hinged door, which provides protection of the patch cords as well as labelling. The NGX panels are supplied unloaded and the modules and plates supplied separately.
PRODUCT HIGHLIGHTS
- 3 Fiber slots NGX in 1U space
- Up to 72FO in LC
- Up to 12 Keystones Jacks 6/6A UTP & STP
- Modular Fiber connectivity with MTP®/MPO, Splicing, Direct Patching, Pre-terminated module
- Open chassis free access module installation with front and rear access
FEATURES
- 3 Fiber slots NGX in 1U space
- Up to 72FO in LC
- Up to 12 Keystones Jacks 6/6A UTP & STP
- Modular Fiber connectivity with MTP®/MPO, Splicing, Direct Patching, Pre-terminated module
- Open chassis free access module installation with front and rear access
APPLICATIONS
- Datacenter & Enterprise network
- Indoor applications
- Custom Network Configurations
- Accepts Indoor and Outdoor Cables
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Rack 19” |
| Opening Type | Fixed |
| Access Type | Front and Rear loading of modules |
| Front Cable Management | Removable Hinged drop-down door |
| Cable Entry Direction | Removable rear manager |
| Rear Cable Management | Cable manager |
| Height Unit | 1U |
| Slot Type | NGX Modules |
| Number of Slots | 3 NGX Fiber Module / 12 Ports Keystone Jacks |
| Fiber Capacity | 72FO in LC |
| Material | Metal Part: Cold Rolled Steel & Stainless Steel | Plastic Part: PC+ABS |
| Housing Color | Metal Part: Black (RAL 9004) | Plastic Part: Grey Blue (RAL 5008) |
| Application | Indoor IP20 |
| Lockable | Optional |
| Dimensions (W x D x H) | 485.5 x 415.4 x 44 mm |
| Weight | 3KG |
| Material Compliant | RoHS, REACH / SVHC |
| Part Number | Product Description |
|---|---|
| NGXPP03 | 1U 6 Slots NGX Hybrid Modular Patch Panel - Unloaded |
