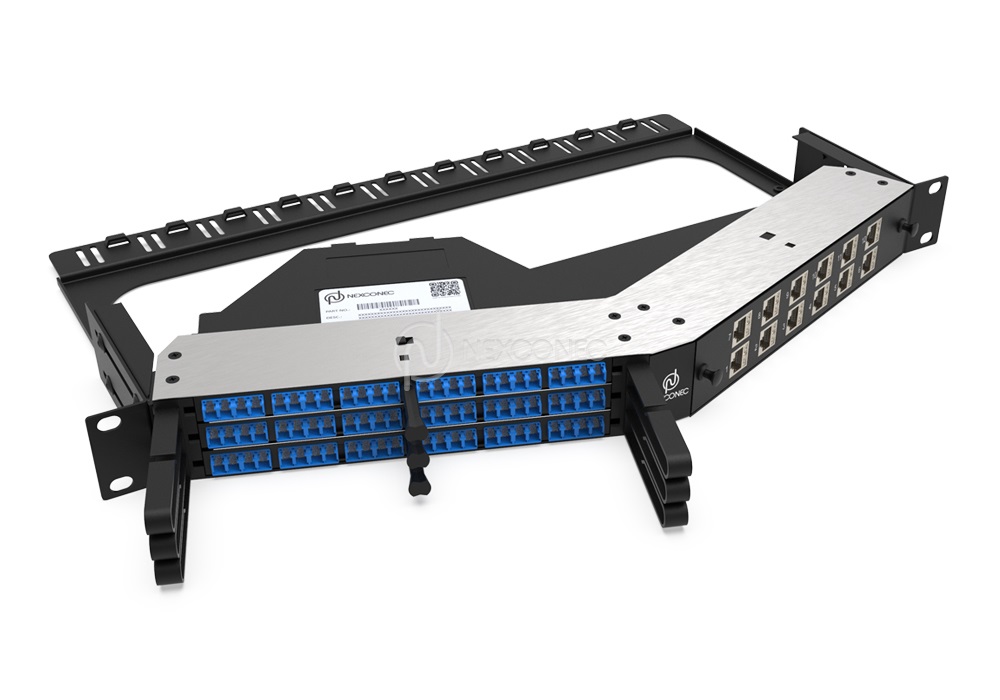

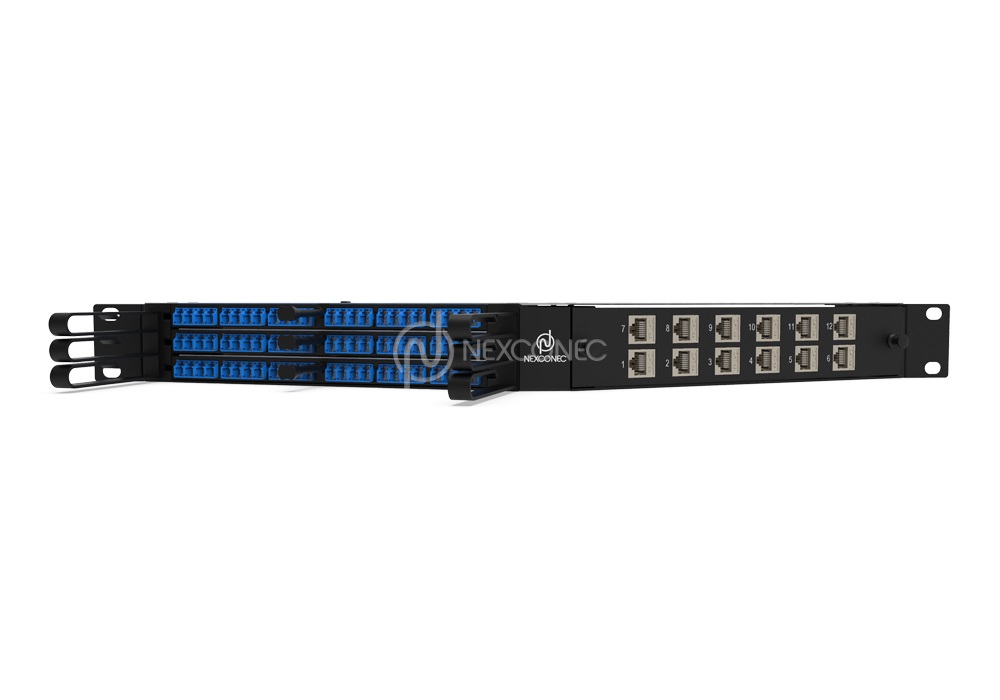

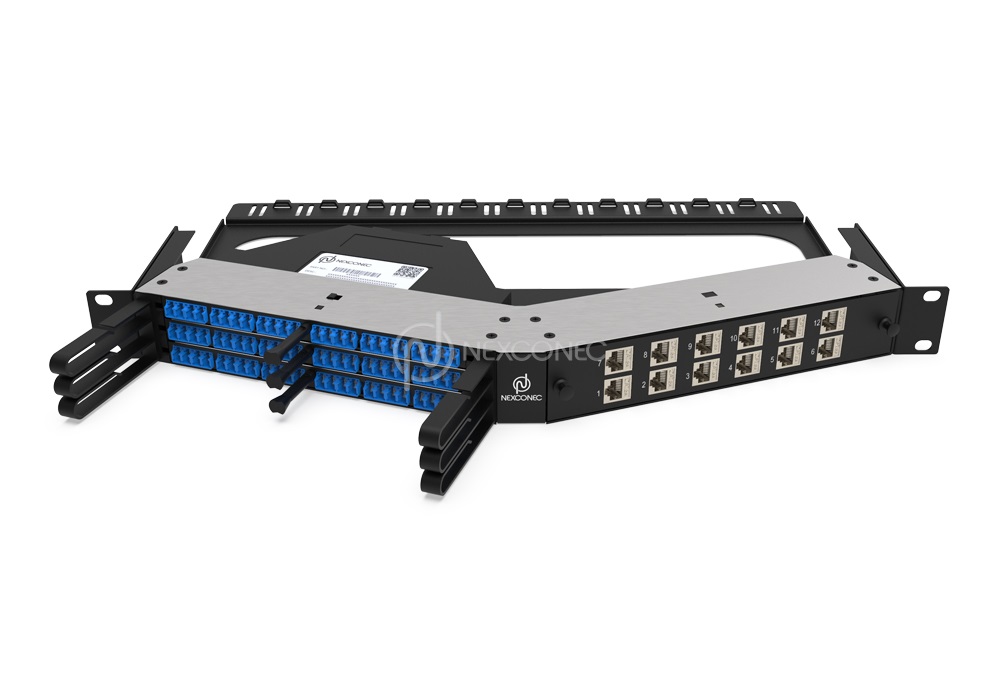

1U NGX Hybrid Fiber & Copper Angled Modular Panel – NGXPP04

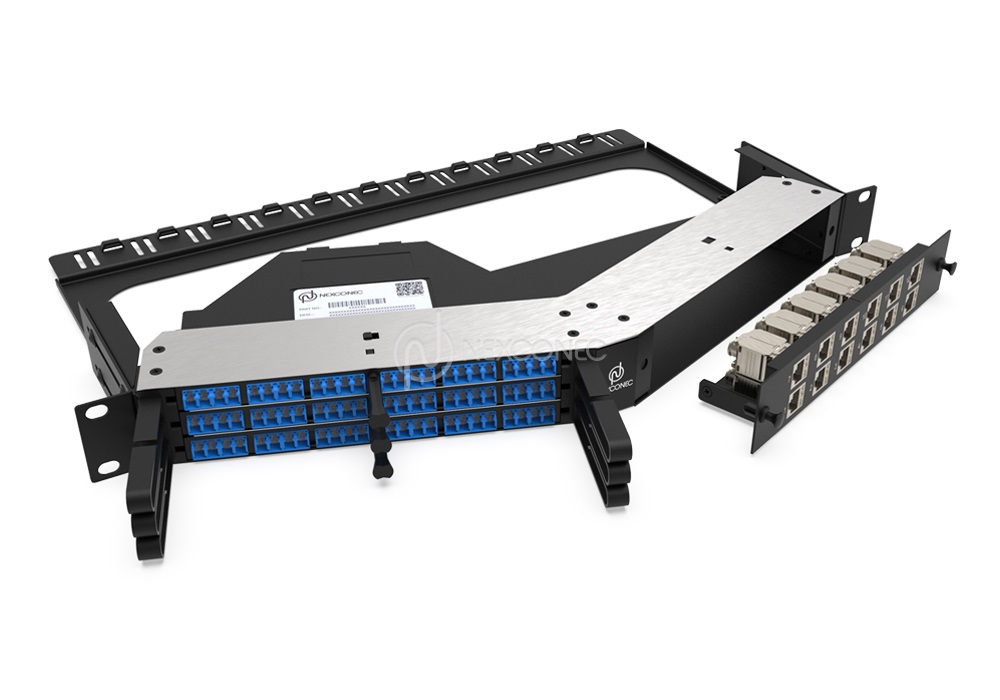

NEXCONEC® NGX Angled High-Density Frame accepts up to 3 NGX Modules for a total of 72FO with LC configuration and 12 Keystone jacks. Modular Fiber panel for multi-application with MPO System, Pre-terminated custom modules, PatchThru, Next-Gen Transition modules 40G-10G, or conventional splicing. Copper module available with Cat6, Cat6A Shielded & Unshielded.

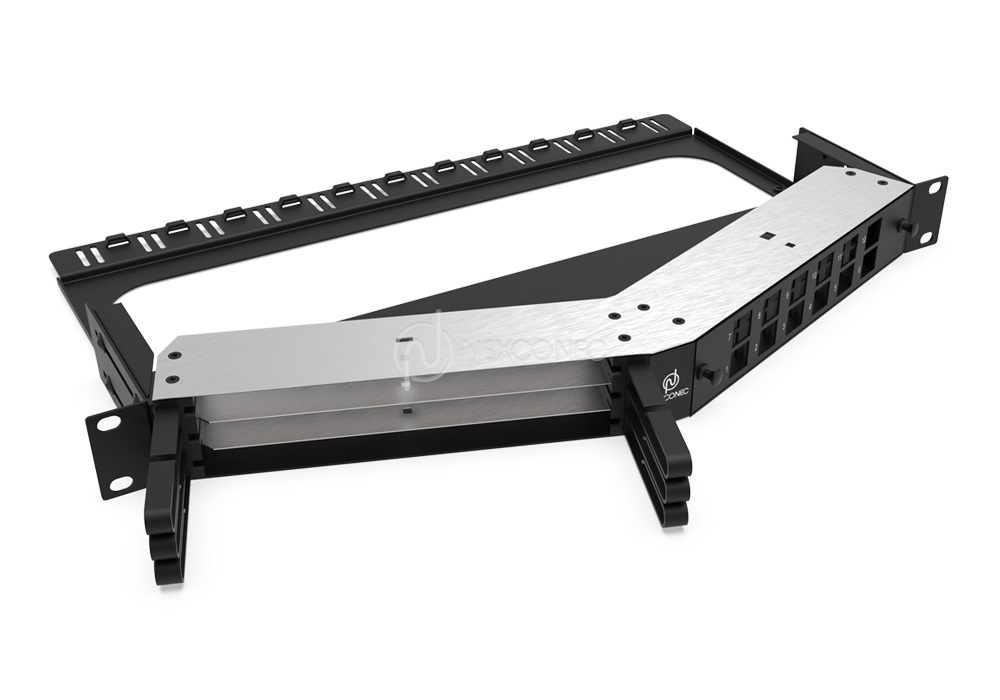

Angled front with side manager for a better lateral routing of the cabling. Panel supplied unloaded and the modules and plates supplied separately.
PRODUCT HIGHLIGHTS
- 3 Fiber slots NGX in 1U space
- Up to 72FO with LC
- Up to 12 Keystones Jacks 6/6A UTP & STP
- Modular Fiber connectivity with MTP®/MPO, Splicing, Direct Patching, Pre-terminated module

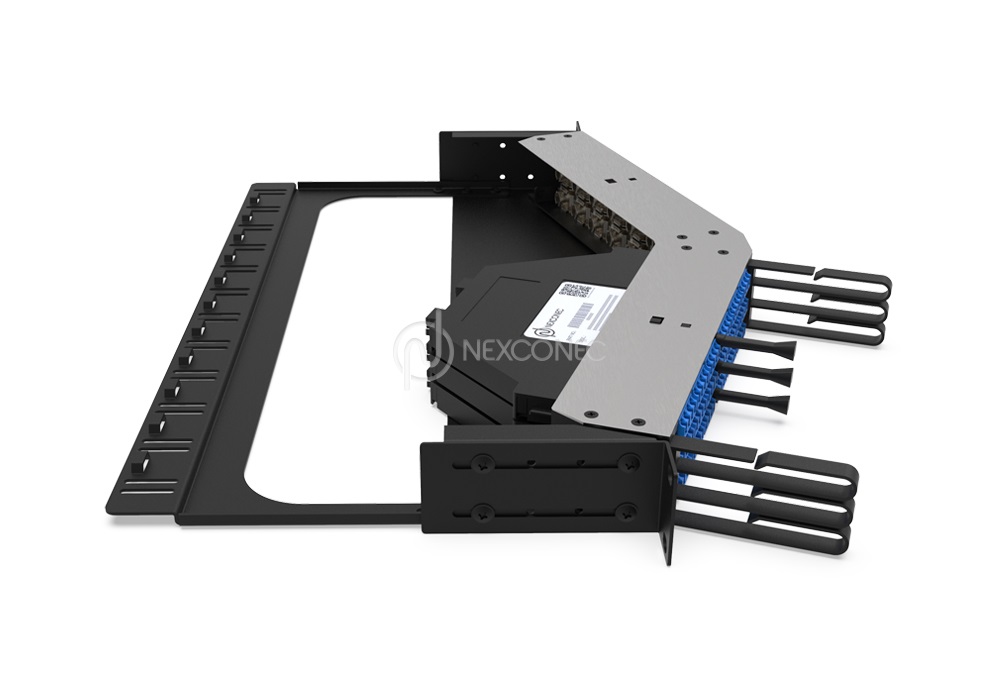

- Open angled chassis free access module installation with front and rear access
FEATURES
- 3 Fiber slots NGX in 1U space
- Up to 72FO with LC
- Up to 12 Keystones Jacks 6/6A UTP & STP
- Modular Fiber connectivity with MTP®/MPO, Splicing, Direct Patching, Pre-terminated module
- Open angled chassis free access module installation with front and rear access
APPLICATIONS
- Datacenter & Enterprise network
- Indoor applications
- Custom Network Configurations
- Accepts Indoor and Outdoor Cables
SPECIFICATIONS
| Parameters | Value |
|---|---|

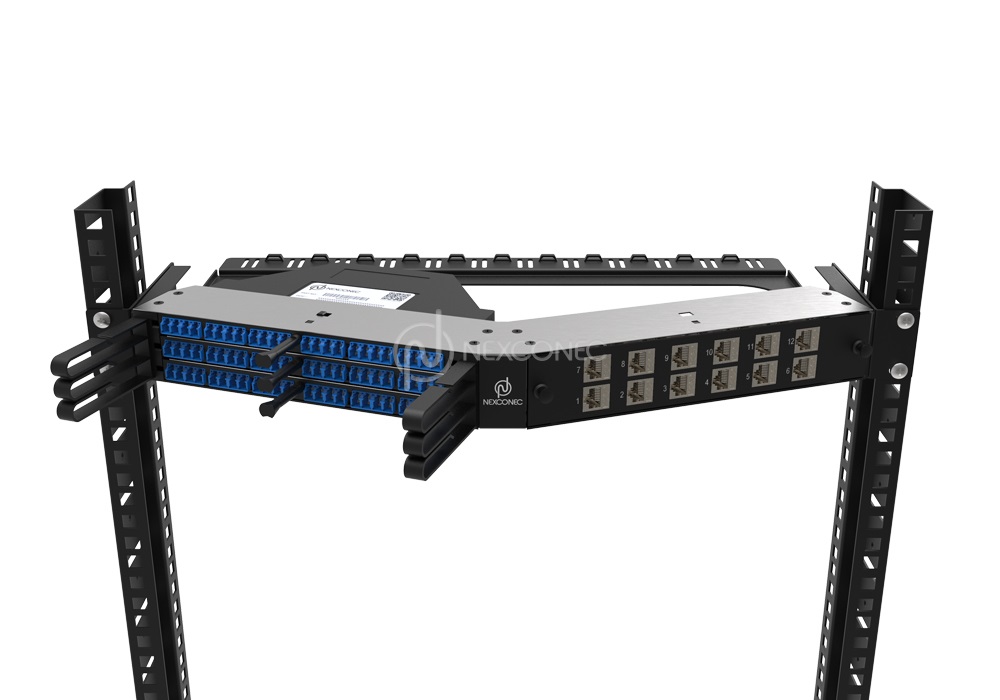

| Mounting Type | Rack 19” |
| Opening Type | Fixed |
| Access Type | Front and Rear loading of modules |
| Front Cable Management | Side Cable Manager |
| Cable Entry Direction | Rear |

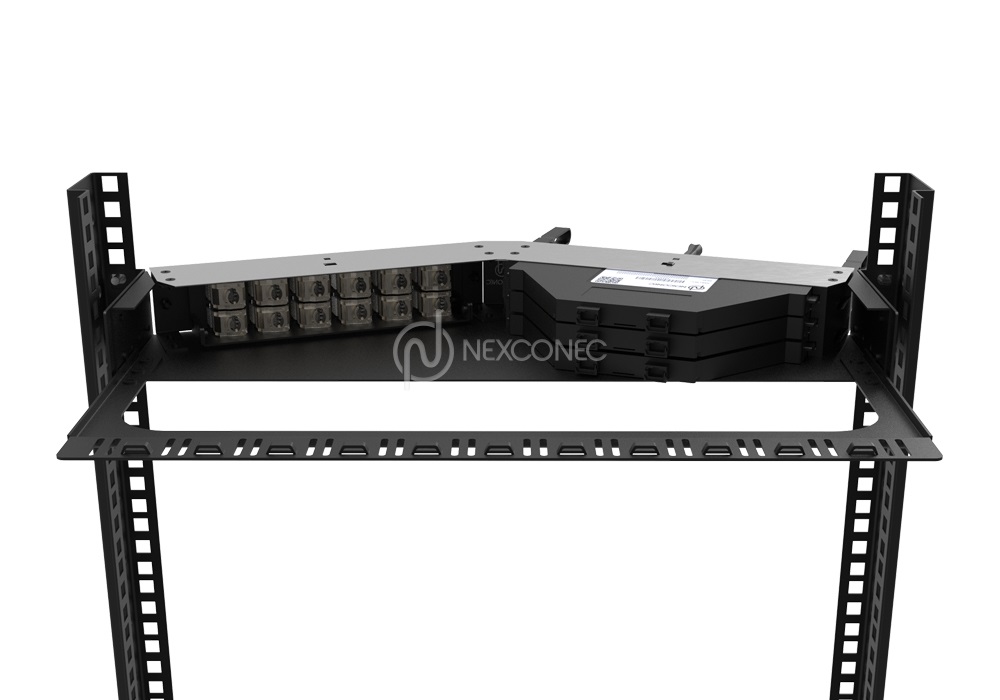

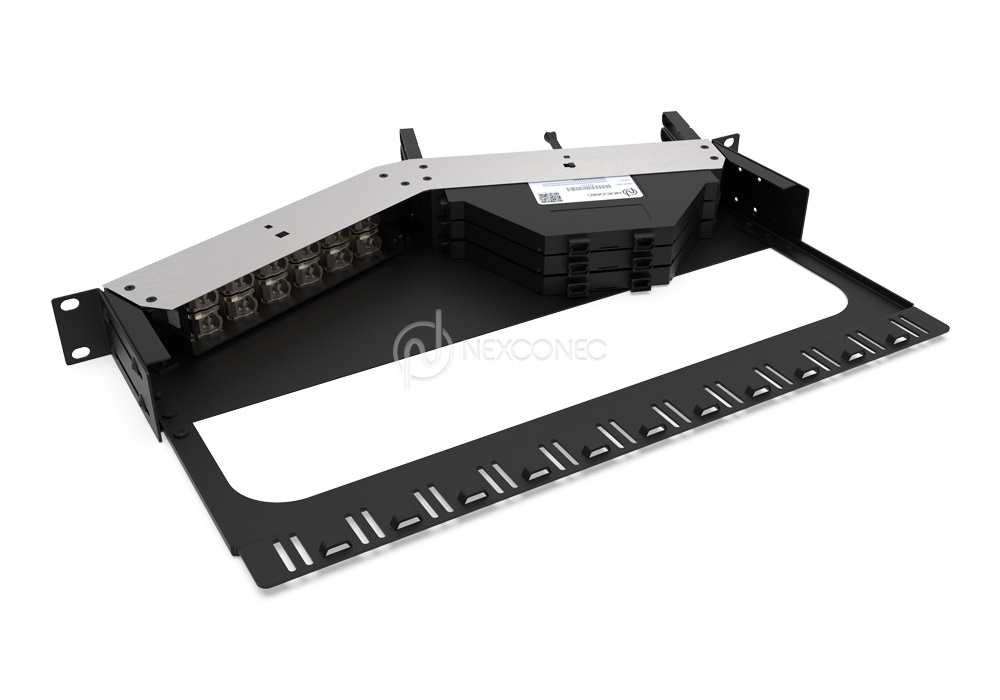

| Rear Cable Management | Cable manager |
| Height Unit | 1U |
| Slot Type | NGX Modules |
| Number of Slots | 3 NGX Fiber Module / 12 Ports Keystone Jacks |
| Fiber Capacity | 72FO in LC |
| Material | Metal Part: Cold Rolled Steel & Stainless Steel | Plastic Part: PC+ABS |
| Housing Color | Metal Part: Black (RAL 9004) | Plastic Part: Grey Blue (RAL 5008) |
| Application | Indoor IP20 |
| Lockable | Optional |
| Dimensions (W x D x H) | 488 x 306.6 x 43.8 mm |
| Weight | 3KG |
| Material Compliant | RoHS, REACH / SVHC |
| Part Number | Product Description |
|---|---|
| NGXPP04 | NGX Hybrid Angled Modular Chassis 1U Fiber/Copper (6 Fiber NGX Slots / 12P KJ) - Unloaded |
