Micro Cable Flex Armored Indoor/Outdoor

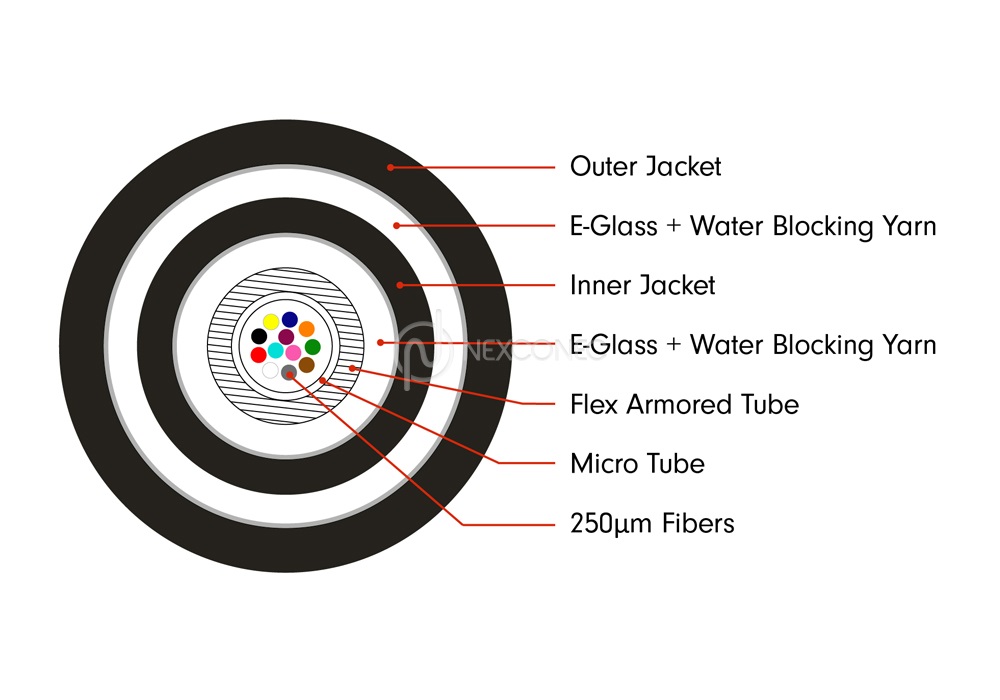

NEXCONEC® Indoor & Outdoor Microcore Flex Armored cable contains 12 fibers of 250μm fibers in a micro tube, which is accommodated in the helical flex armored tube, then with E-glass, Kevlar and water blocking yarn added in the cable to make ideal use in the indoor/outdoor environment where anti-rodent is needed.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Standard SM and MM fibers available
- Compact cable construction
- Individually colored optical fibers
- UV resistant outer jacket
- Suitable for internal/external or direct burial applications
- Suitable for environments where impact protection is required
| Parameters | Units | Value | |
|---|---|---|---|
| Fiber Count | 12FO | 24FO | |
| Outer Jacket Diameter | mm | 4.5±0.2 | 5.5±0.1 |
| Inner Jacket Diameter | mm | 3.0±0.1 | 4.0±0.1 |
| Flex Armored Tube Diameter | mm | 2.1±0.05 | 3.2±0.1 |
| Cable Jacket Material | UV-LSZH (Black) | ||
| Strength Member | E-glass, Kevlar | ||
| Tensile Strength (Long Term) | N | 150 | 80 |
| Tensile Strength (Short Term) | N | 500 | 150 |
| Crush Resistance (Long Term) | N/100mm | 600 | 500 |
| Crush Resistance (Short Term) | N/100mm | 1200 | 2000 |
| Min. Bending Radius | mm | 10D (Static)/20D (Dynamic) | |
| Storage Temperature | °C | -40 ~ +70 | |
| Operating Temperature | °C | -40 ~ +70 | |
| Installation Temperature | °C | -10 ~ +50 | |
| Cable Weight | Kg/Km | 38 Kg | 55 Kg |
