LGX Zero RU Bracket - MP3BK01

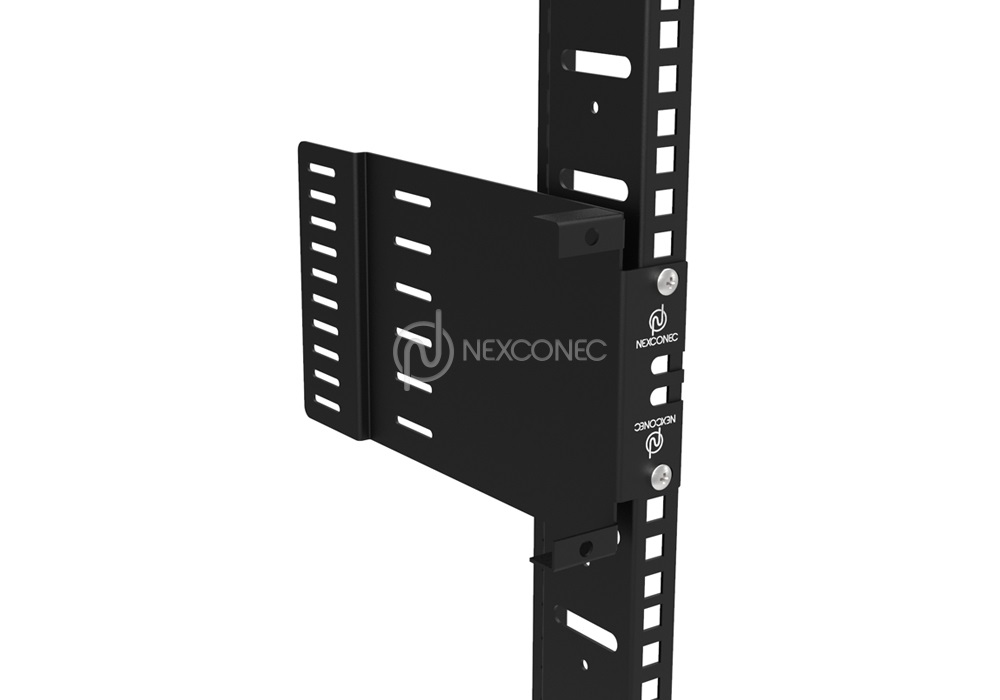

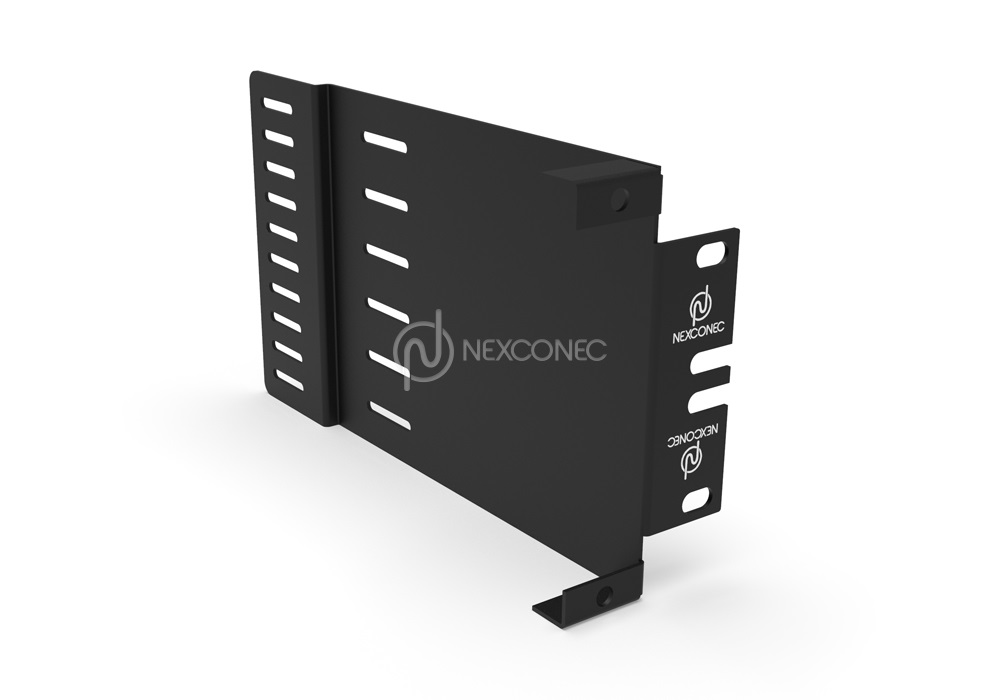

The Zero RU Bracket adds an additional patch panel location to free up extra space in the cabinet. The bracket installs vertically in the cabinet rail and creates a convenient point for distribution of patch cables within the vertical racking system. The Zero RU bracket accepts any NEXCONEC® LGX modules and plates. The Bracket is supplied unloaded and the modules and plates are supplied separately.
PRODUCT HIGHLIGHTS
- Zero RU mounting bracket
- Space saving and utilizing solutions
- 1 Slots LGX (Up to 24FO in LC)

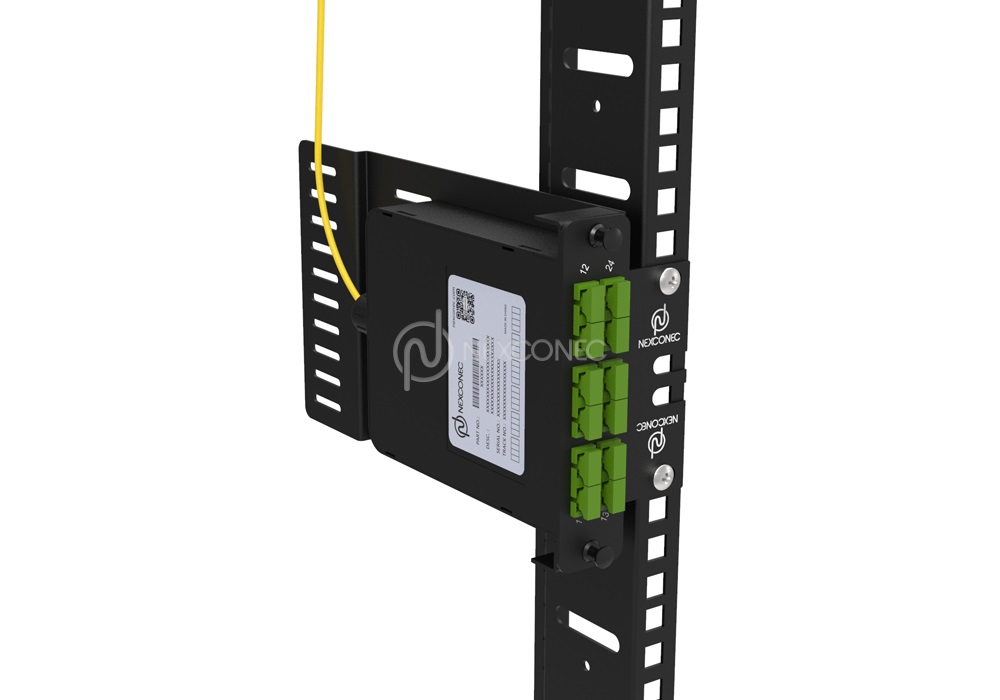

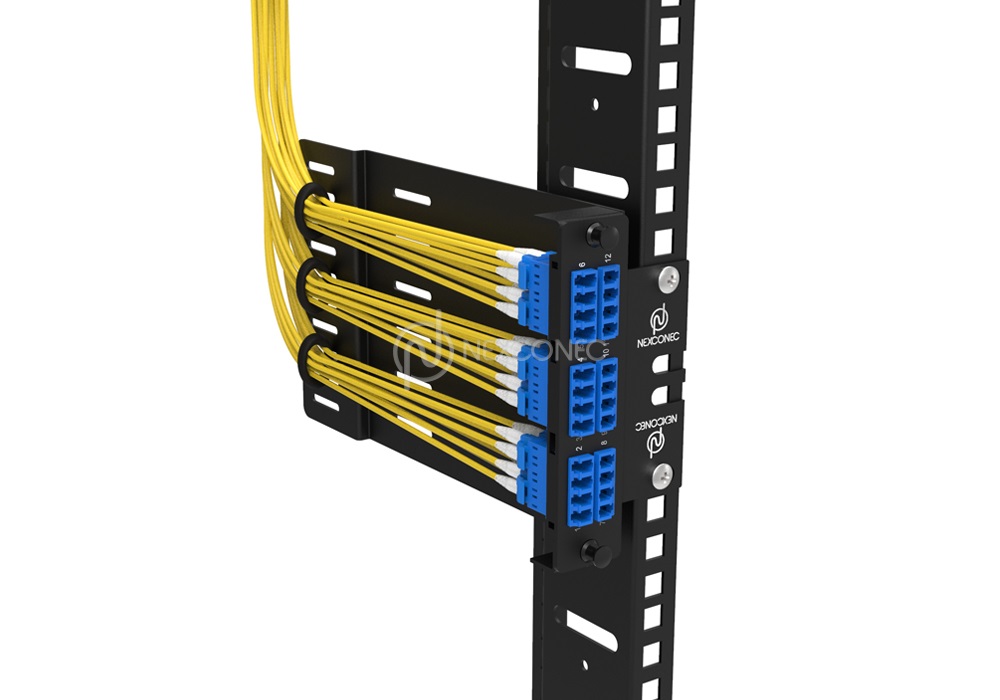

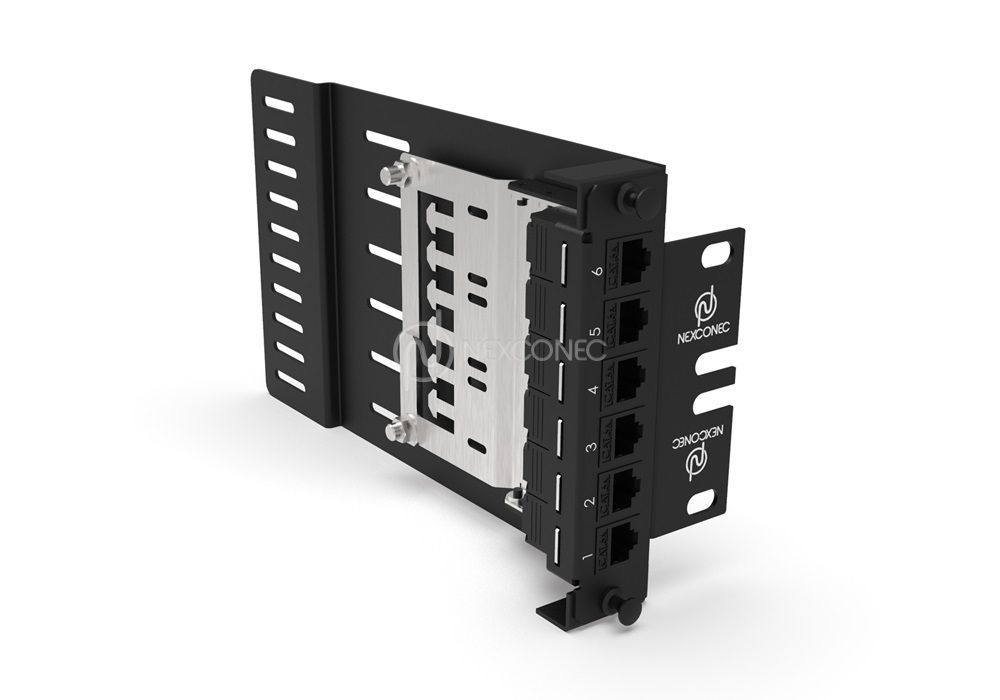

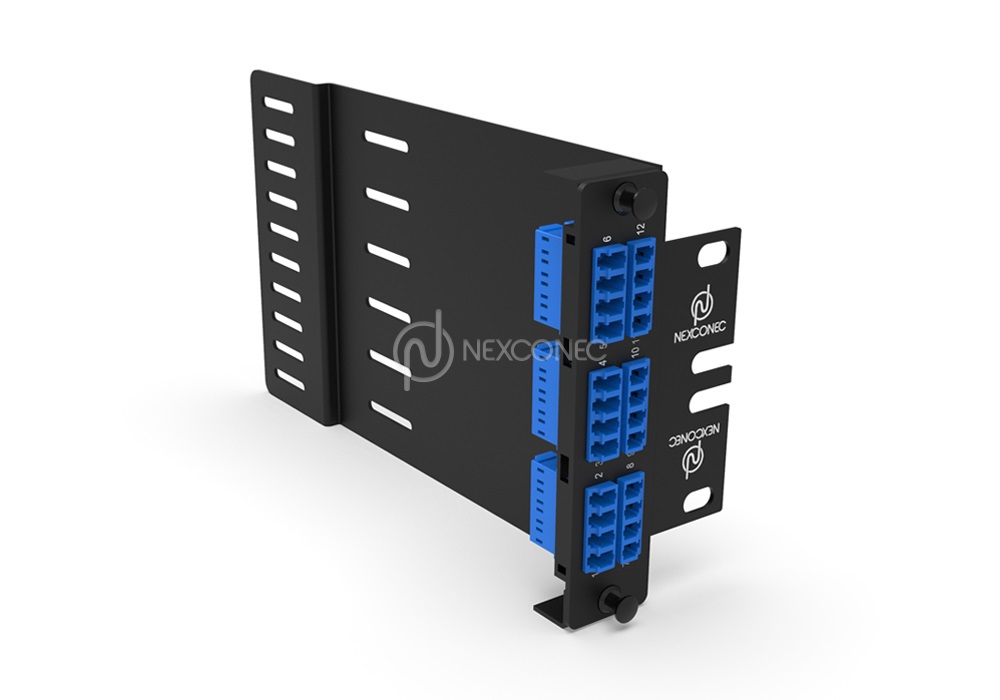

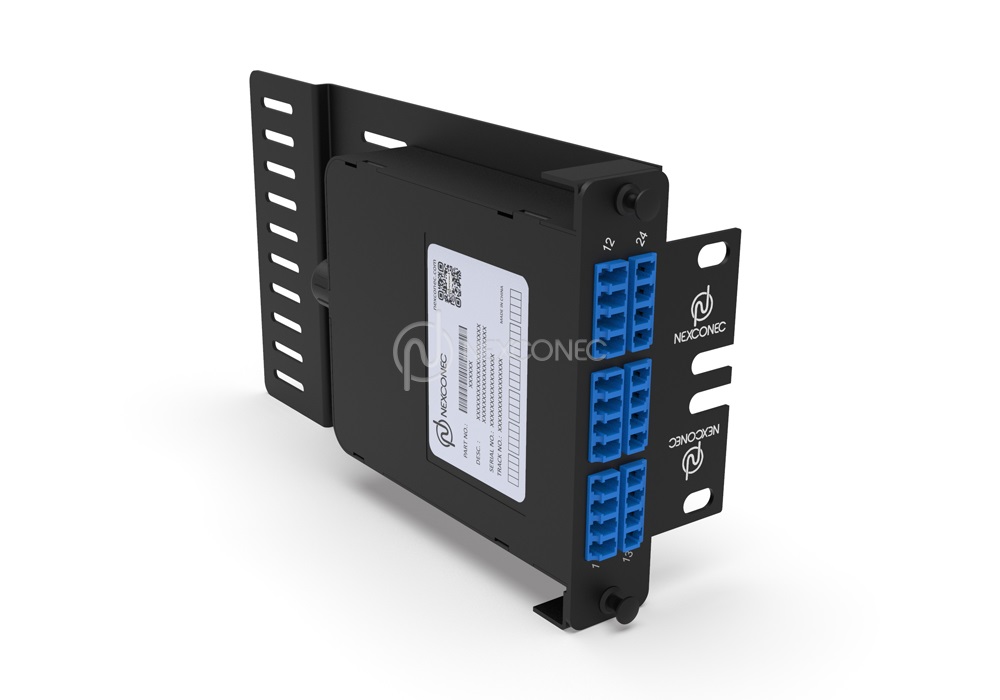

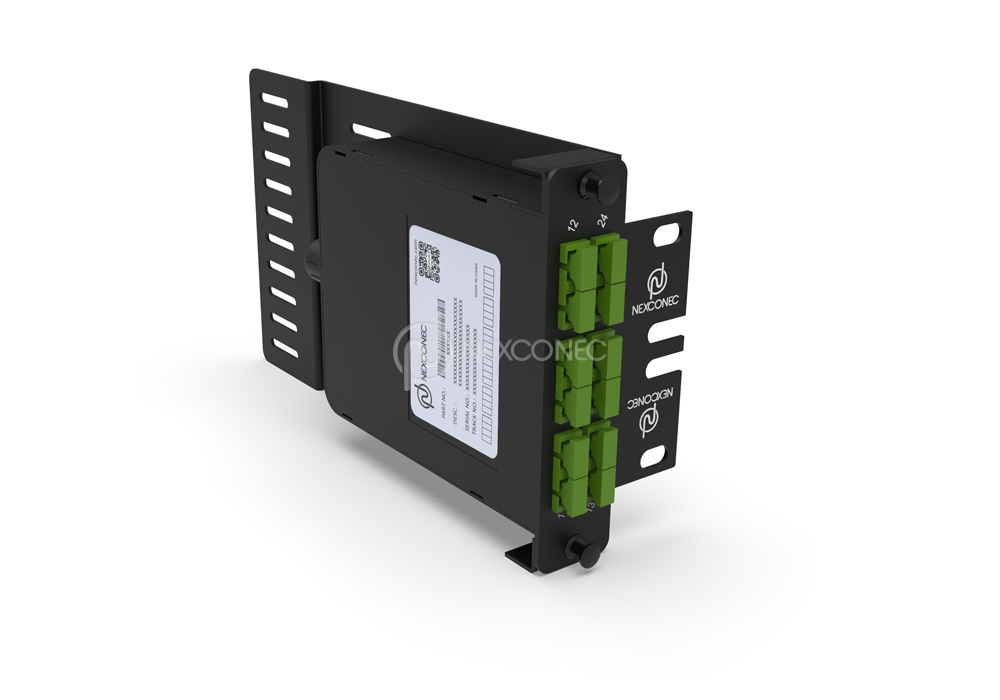

- Modular with MPO Cassette, Splice Cassette or Adapter plates
- Rear cable support
- Datacenter & Enterprise network
PRODUCT INFORMATION
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
 VISIO.vsdx |
Download |
FEATURES
- Zero RU mounting bracket
- Space saving and utilizing solutions
- 1 Slots LGX (Up to 24FO in LC)
- Modular with MPO Cassette, Splice Cassette or Adapter plates
- Rear cable support
APPLICATIONS
- Datacenter & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables, MTP®/MPO trunks and Splicing
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Vertical Left and right rack mounting |
| Access Type | Front access |
| Cable Entry Direction | Rear |
| Rear Cable Management | Rear cable support |
| Slot Type | LGX Modules and LGX Plates |
| Number of Slots | 1 Slot |
| Fiber Capacity | 24FO in LC / 12FO in SC |
| Height Unit | 130 mm |
| Dimensions (W x D x H) | 62 x 220 x 135 mm |
| Material | Cold Rolled Steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Net Weight | 0.5 KG |
| Material Compliant | RoHS, REACH / SVHC |
| Part Number | Product Description |
|---|---|
| MP3BK01 | Zero RU LGX Bracket, 1 Slot - Unloaded |
