HD Zero RU Bracket - MP4BK01

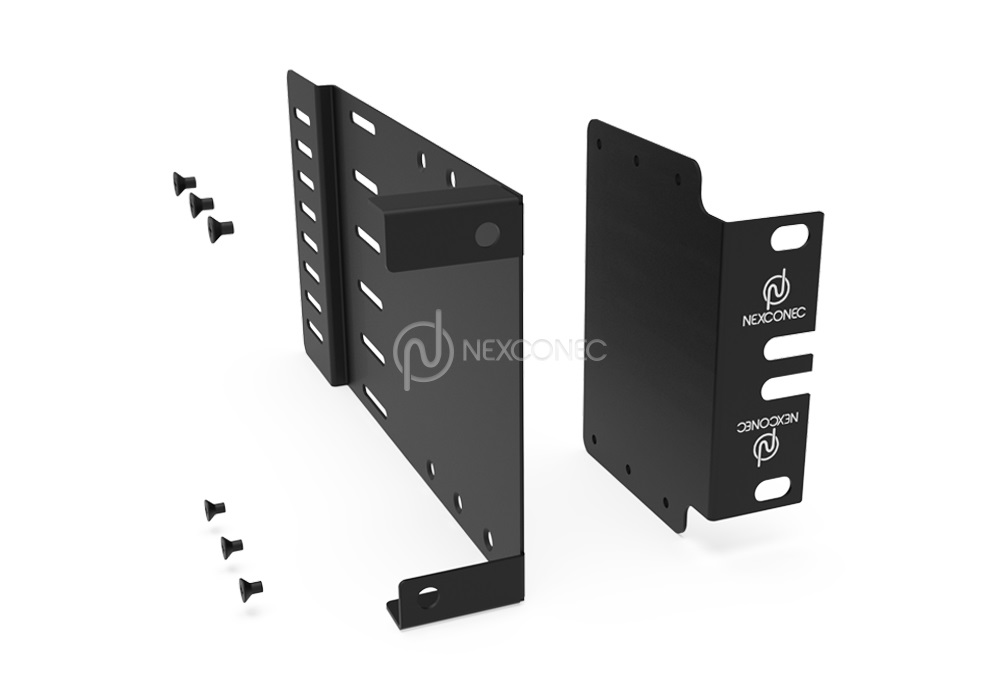

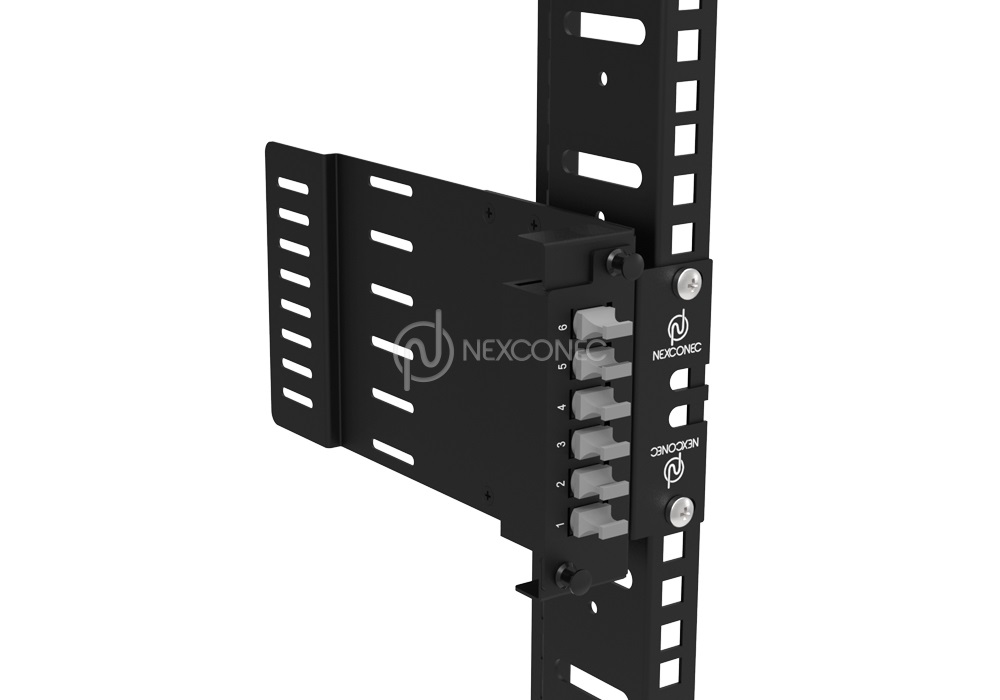

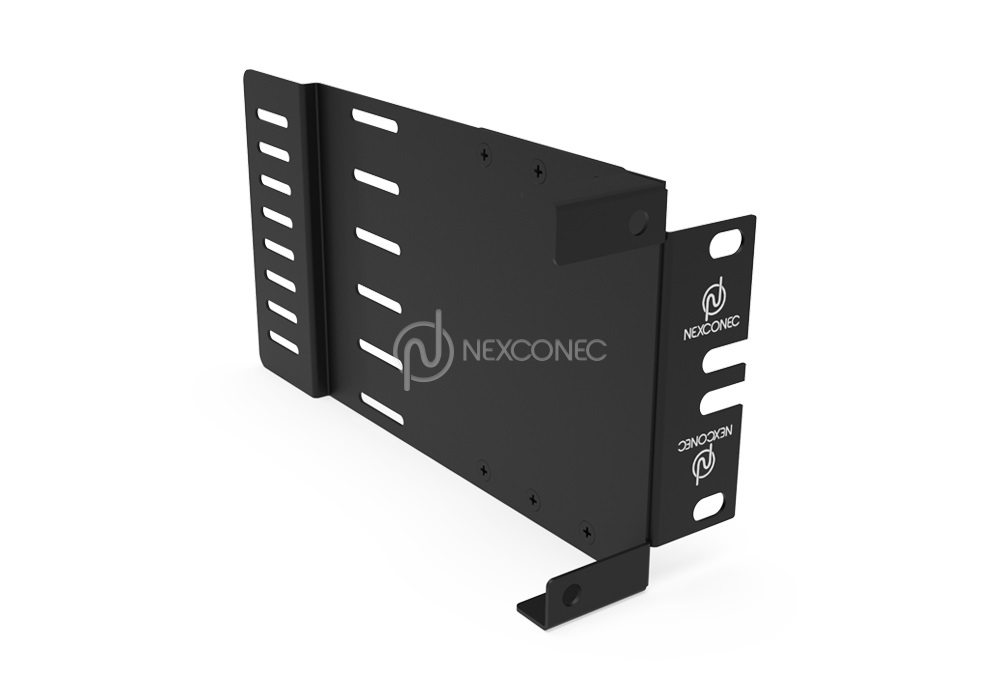

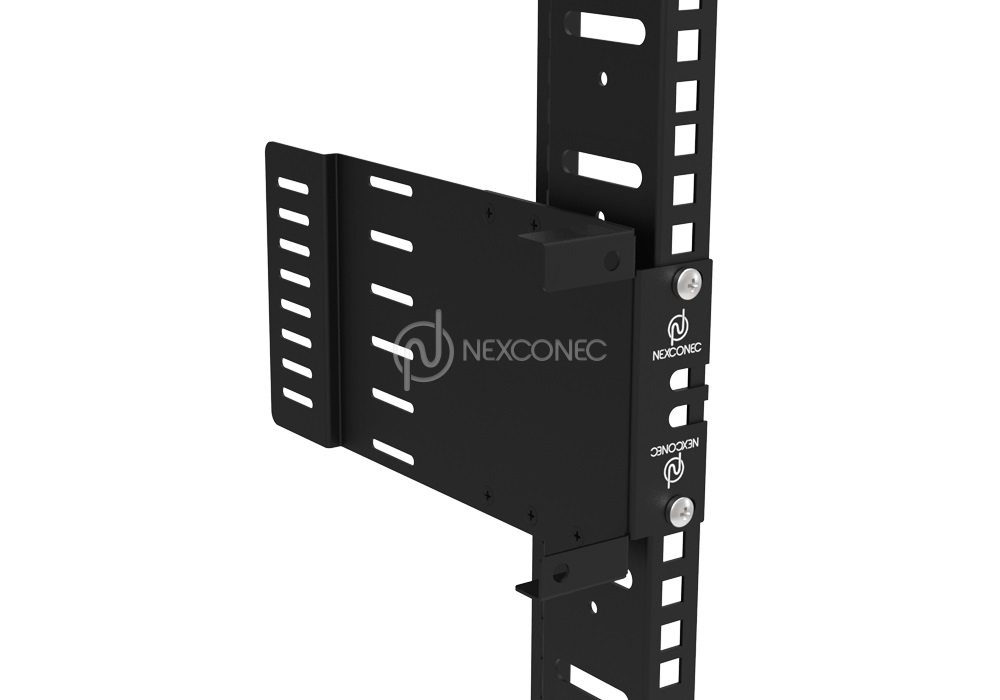

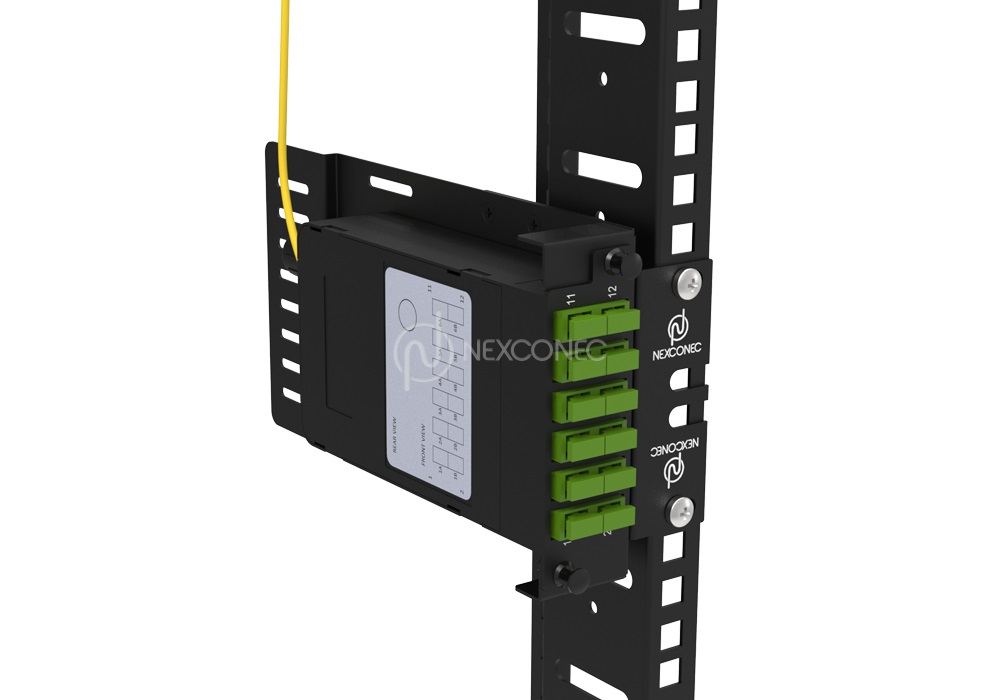

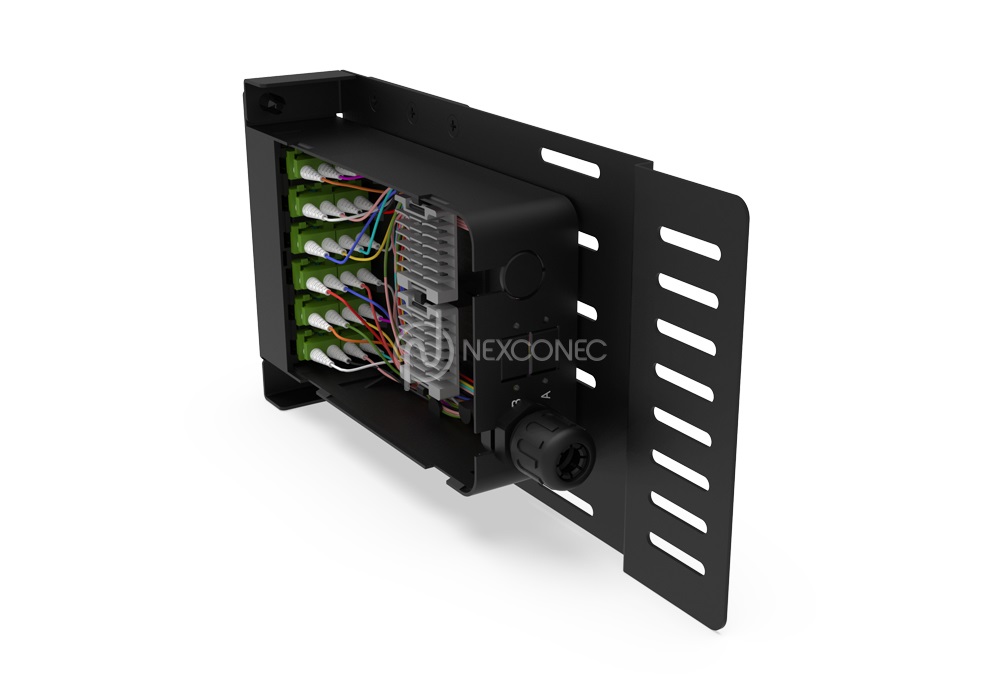

NEXCONEC® introducing the HD Zero RU Bracket, a state-of-the-art product designed to enhance your networking infrastructure. This innovative detachable bracket offers a sleek and space-saving solution for mounting HD zero rack unit equipment effortlessly to free up extra space in the cabinet. The bracket installs vertically in the cabinet rail and creates a convenient point for distribution of patch cables within the vertical racking system.

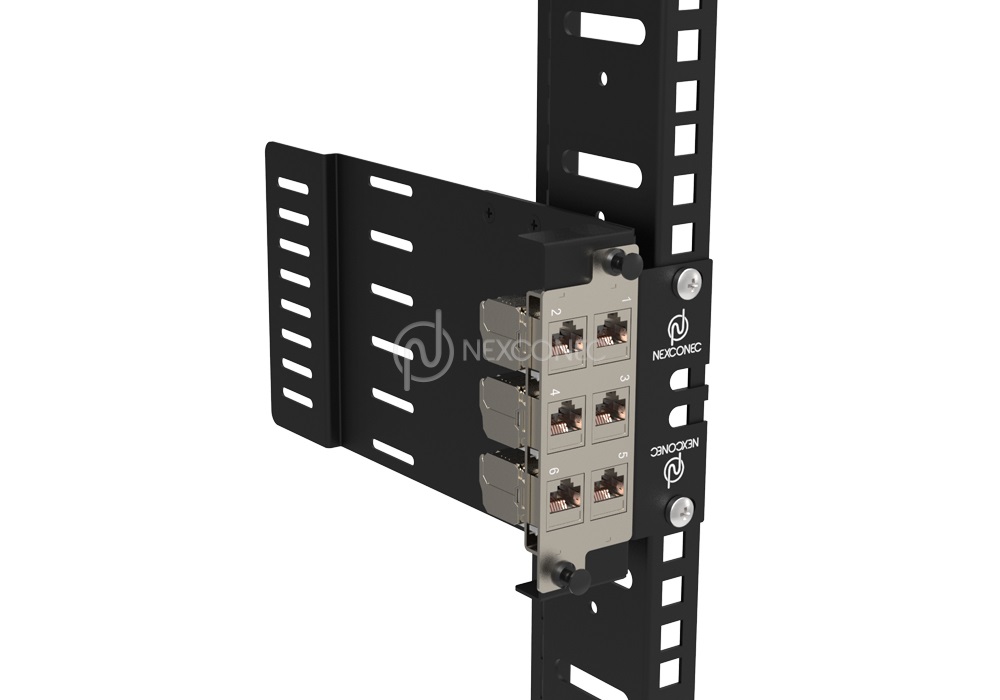

The HD Zero RU bracket accepts all types of Nexconec HD range modules and plates. The Bracket is supplied unloaded and the modules and plates are supplied separately.
PRODUCT HIGHLIGHTS
- Zero RU detachable mounting bracket
- Space saving and utilizing solutions
- 1 Slot HD (Up to 24FO in LC)

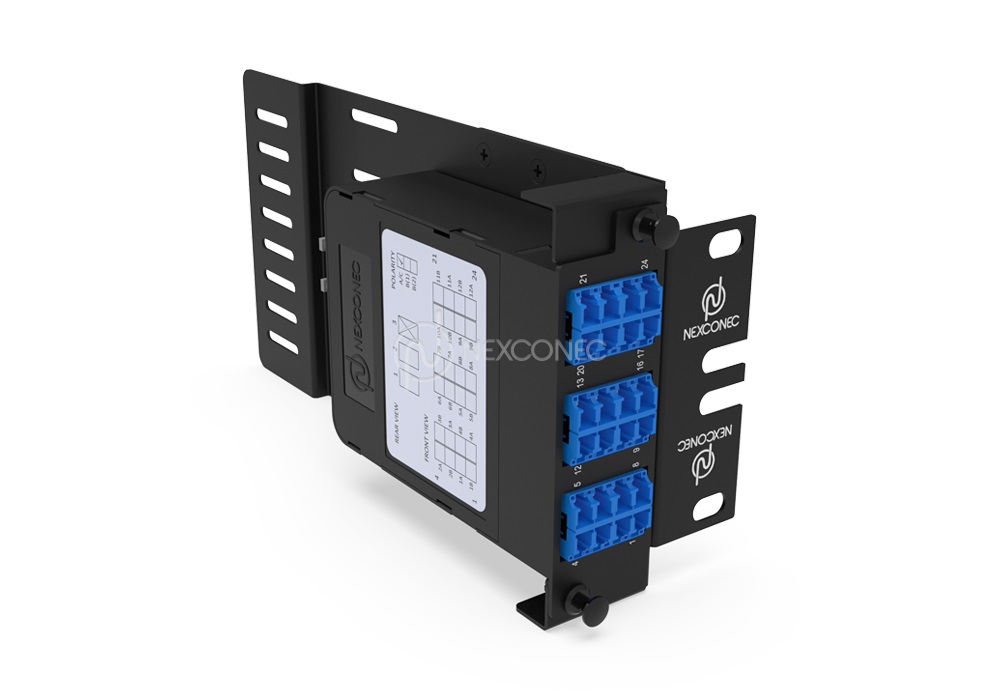

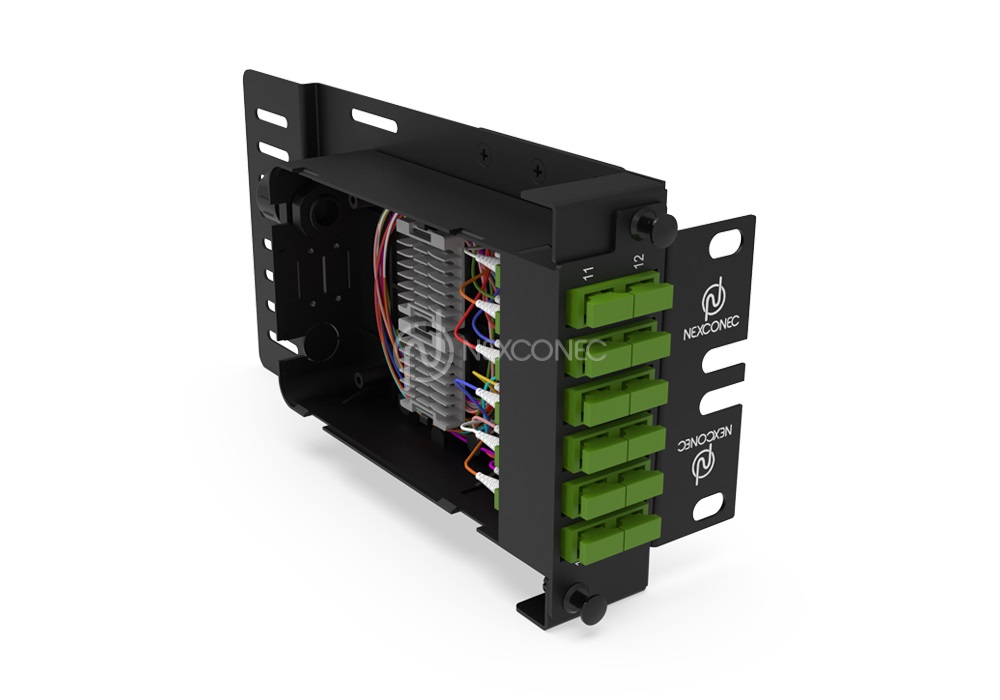

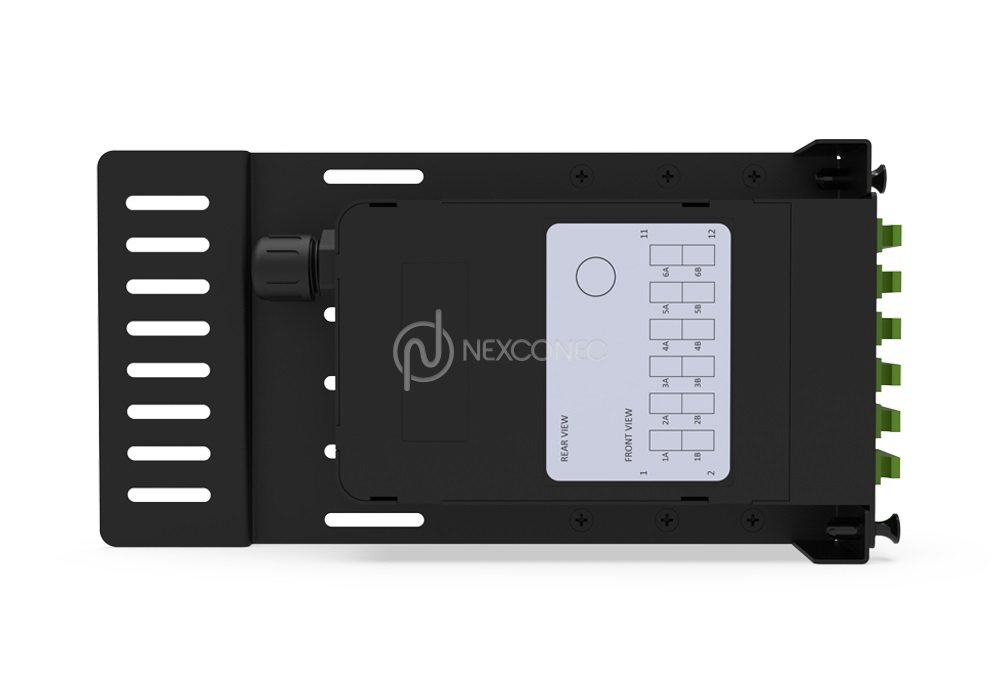

- Modular with MPO Cassette, Splice Cassette or Adapter plates
- Rear cable support
FEATURES
- Zero RU detachable mounting bracket
- Space saving and utilizing solutions
- 1 Slot HD (Up to 24FO in LC)
- Modular with MPO Cassette, Splice Cassette or Adapter plates
- Rear cable support
APPLICATIONS
- Datacenter & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables, MTP®/MPO trunks and Splicing
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Vertical Left and Right rack mounting (Detachable) |
| Access Type | Front access |
| Cable Entry Direction | Rear |
| Rear Cable Management | Rear cable support |
| Slot Type | HD Modules and HD Plates |
| Number of Slots | 1 Slot |
| Fiber Capacity | 24FO in LC / 12FO in SC |
| Height Unit | 114 mm |
| Dimensions (W x D x H) | 67 x 215 x 114 mm |
| Material | Cold Rolled Steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Net Weight | 0.5 KG |
| Material Compliant | RoHS, REACH / SVHC |
| Part Number | Product Description |
|---|---|
| MP4BK01 | Zero RU HD Bracket, 1 Slot - Unloaded |
