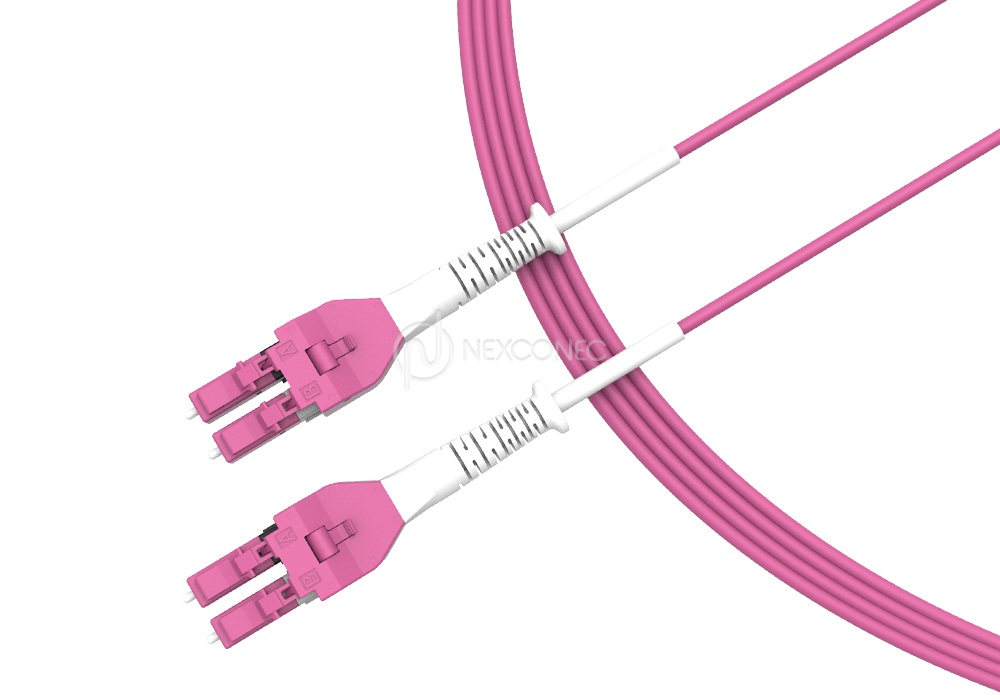

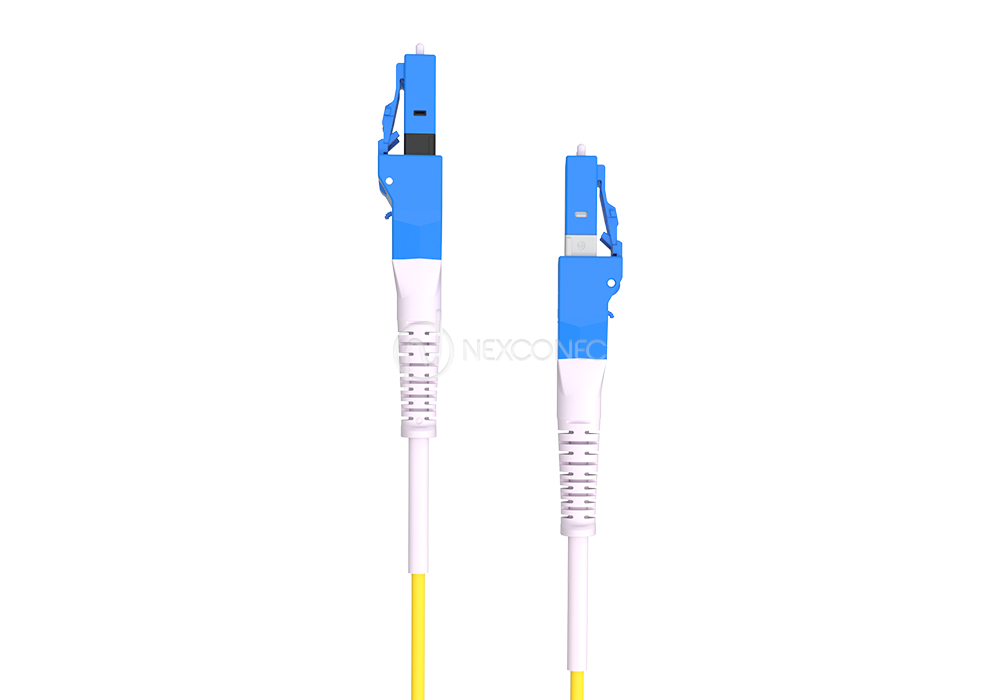

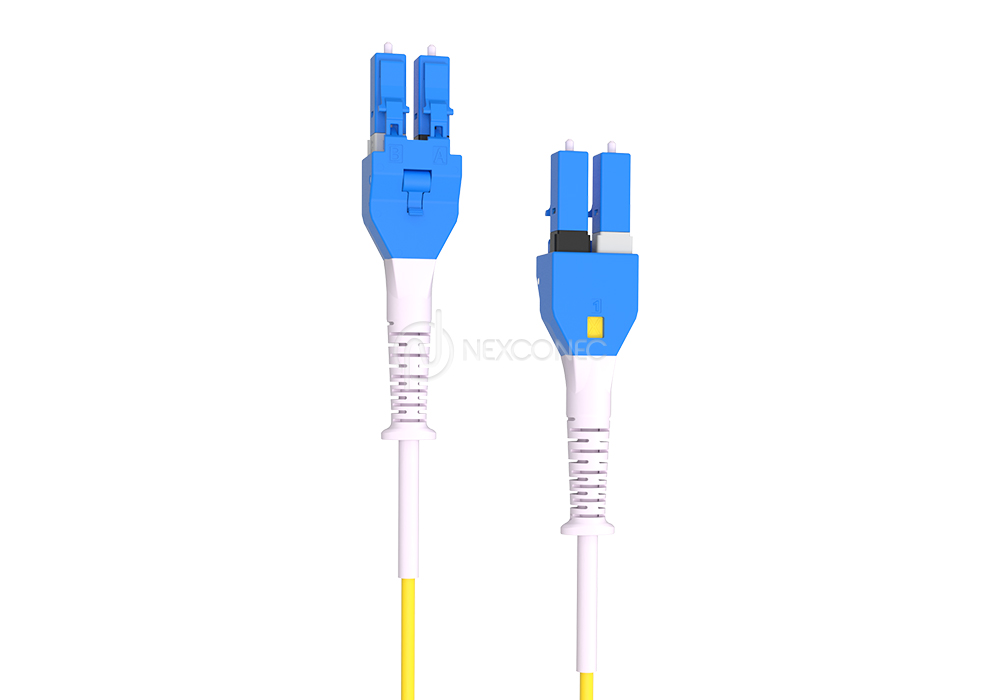

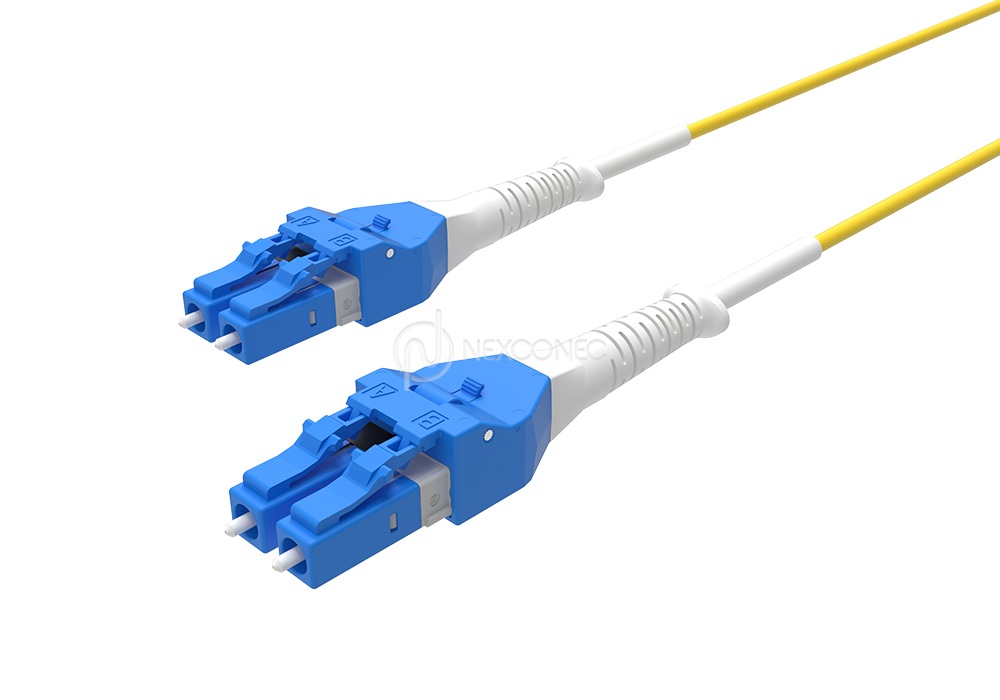

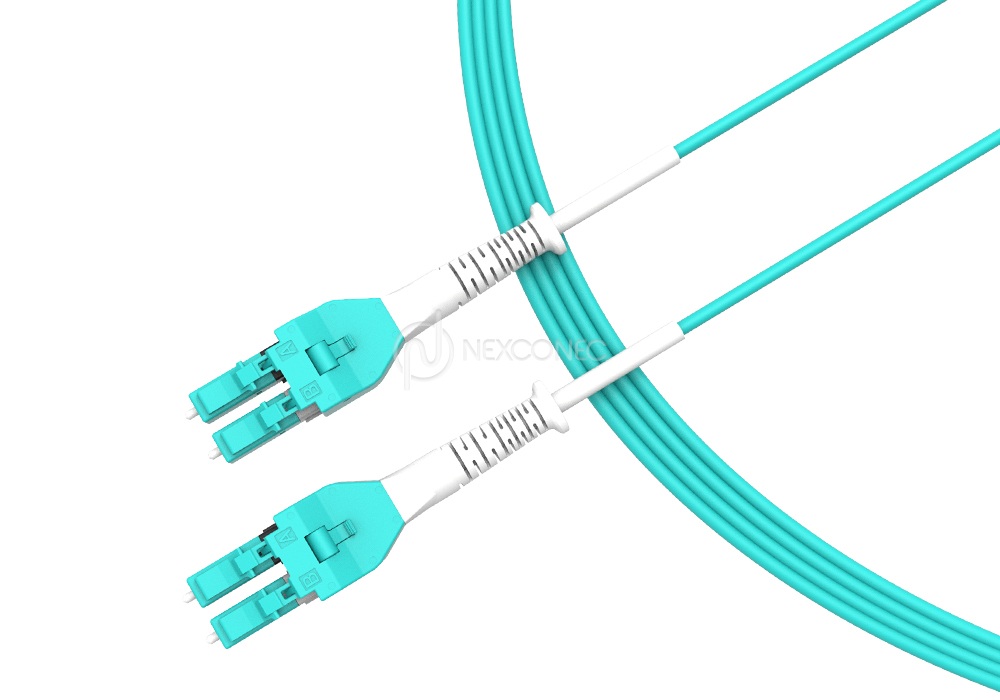

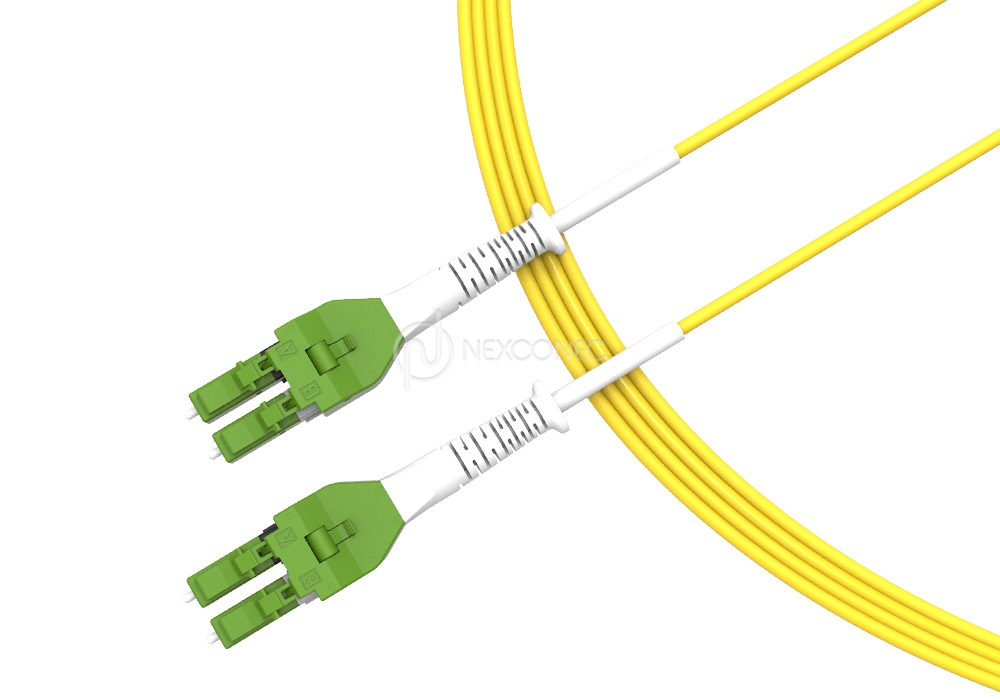

HD Push-Pull Reversible Uniboot LC

The NEXCONEC^® LC Uniboot Push-Pull Reversible Boot Connector Patch Cord is designed to incorporate a reinforced boot for a quick push-pull insertion and removal of the connector without tools or tab requirements. This innovative design helps conserve precious space in high-density panels, and the connector features an easy mechanism to switch polarity within the boot during installation.

The distinctive design employs a uniboot to house 2.0 mm jacketed cables. This feature not only decreases cable density but also simplifies cable management in the context of contemporary high-density applications. Both PC and APC polish types are available to achieve AB polarity interchange without crossing fibers.

PRODUCT HIGHLIGHTS

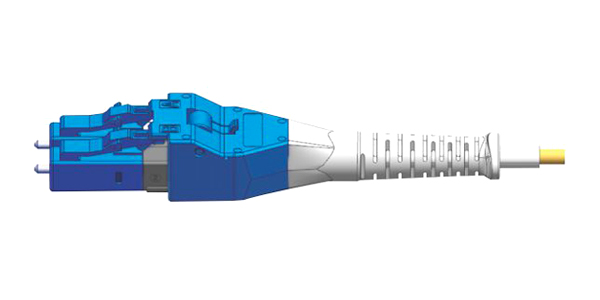

Tool-free polarity interchange – Both PC and APC versions support AB polarity swap
No fiber crossover required during polarity reversal
Integrated push-pull boot for insert/remove operations in high-density panels
Compact length – 56.1 mm total connector length

PRODUCT INFORMATION

DATASHEET.pdf

View

Download

FEATURES

Tool-free polarity interchange – Both PC and APC versions support AB polarity swap
No fiber crossover required during polarity reversal
Integrated push-pull boot for insert/remove operations in high-density panels
Compact length – 56.1 mm total connector length

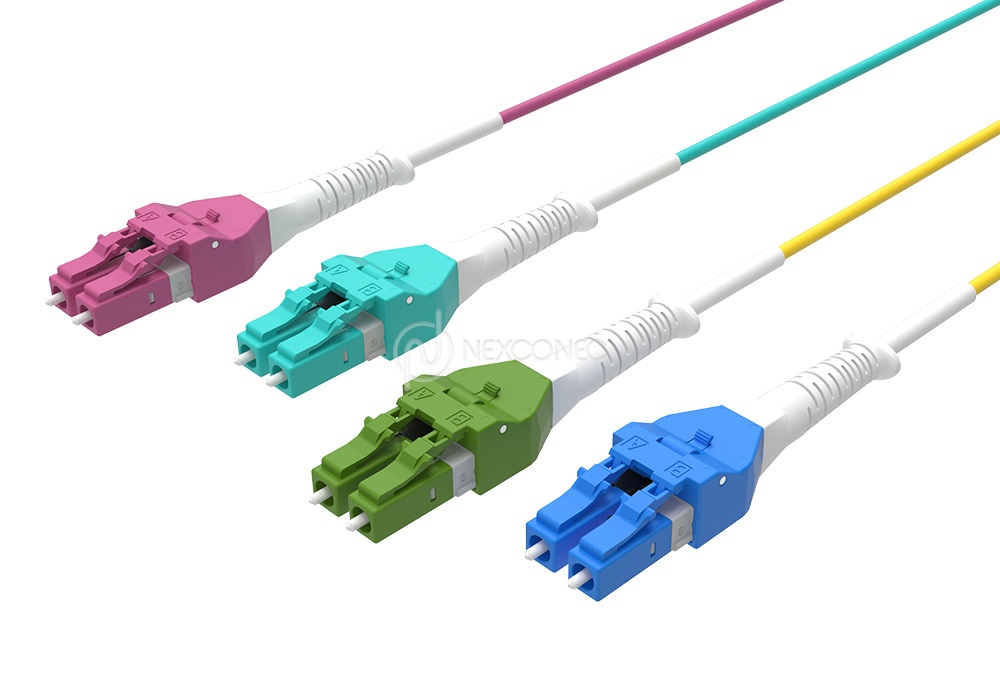

High-performance materials with multiple color options for port identification
RoHS, REACH, TSCA, and IEC 61300 compliant

APPLICATIONS

Telecommunication networks
High-density data center patching
SAN, LAN, and backbone cabling
Polarity-sensitive duplex links (e.g., 40G/100G parallel optics)

SINGLE FERRULE CONNECTOR SPECIFICATIONS

Parameters	IL – Max	IL – Typical	RL (UPC)	RL (APC)
SM – Standard	≤ 0.30 dB	≤ 0.20 dB	> 55 dB	> 65 dB
SM – Premium	≤ 0.15 dB	≤ 0.12 dB	> 55 dB	> 65 dB
MM – Standard	≤ 0.30 dB	≤ 0.18 dB	> 28 dB	N/A
MM – Premium	≤ 0.15 dB	≤ 0.08 dB	> 28 dB	N/A

PATCH CORD SPECIFICATIONS

Parameters	Unit	Value
Connector Type		LC Uniboot Push-Pull Boot
Cable Outer Diameter	mm	2.0
Tensile Strength (Long Term)	N	40
Tensile Strength (Short Term)	N	80
Crush Resistance (Long Term)	N/100mm	100
Crush Resistance (Short Term)	N/100mm	400
Min. Bending Radius (Static)	mm	30D (Static) / 60D (Dynamic)
Storage Temperature	°C	-20 ~ +60
Operating Temperature	°C	-20 ~ +60
Flammability Rating		UL 94V-0

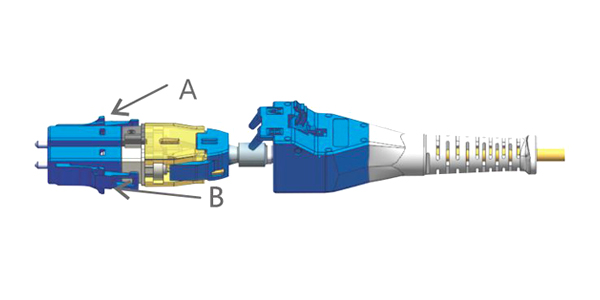

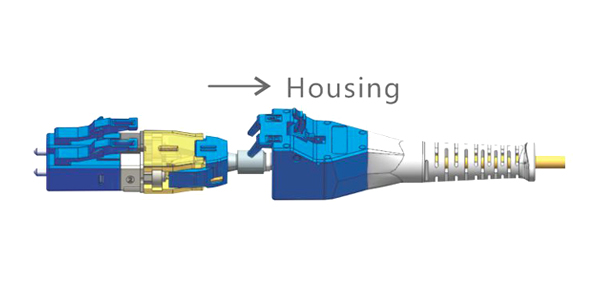

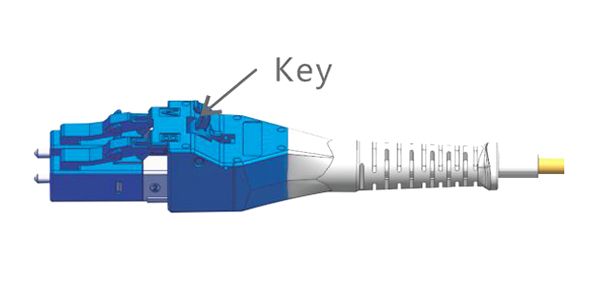

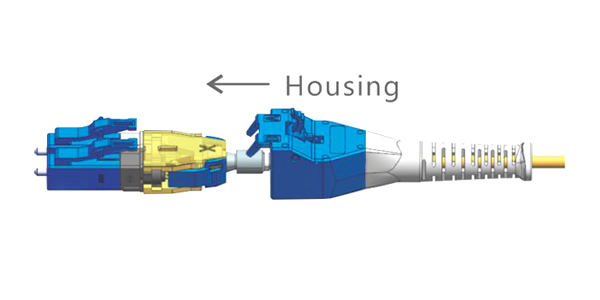

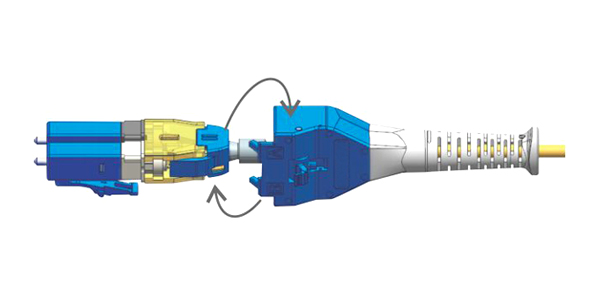

Polarity Swap		A ↔ B (180° rotation, tool-free)
Insertion/Removal		Push-pull boot actuation
Standards		RoHS, REACH, TSCA, IEC 61300
Cable Weight	Kg/Km	7.6 Kg
