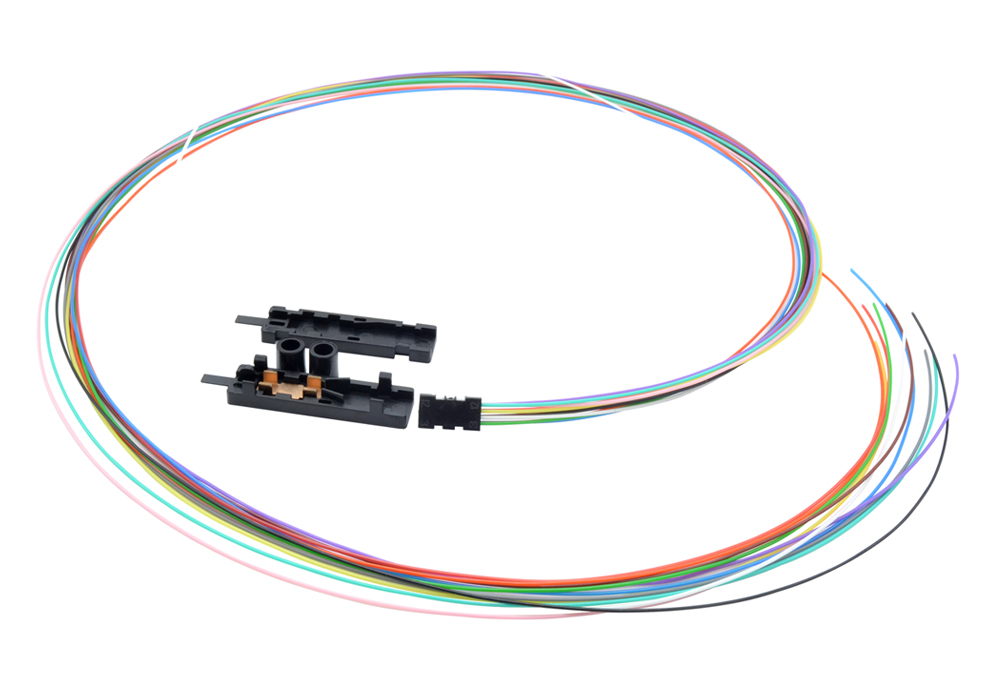

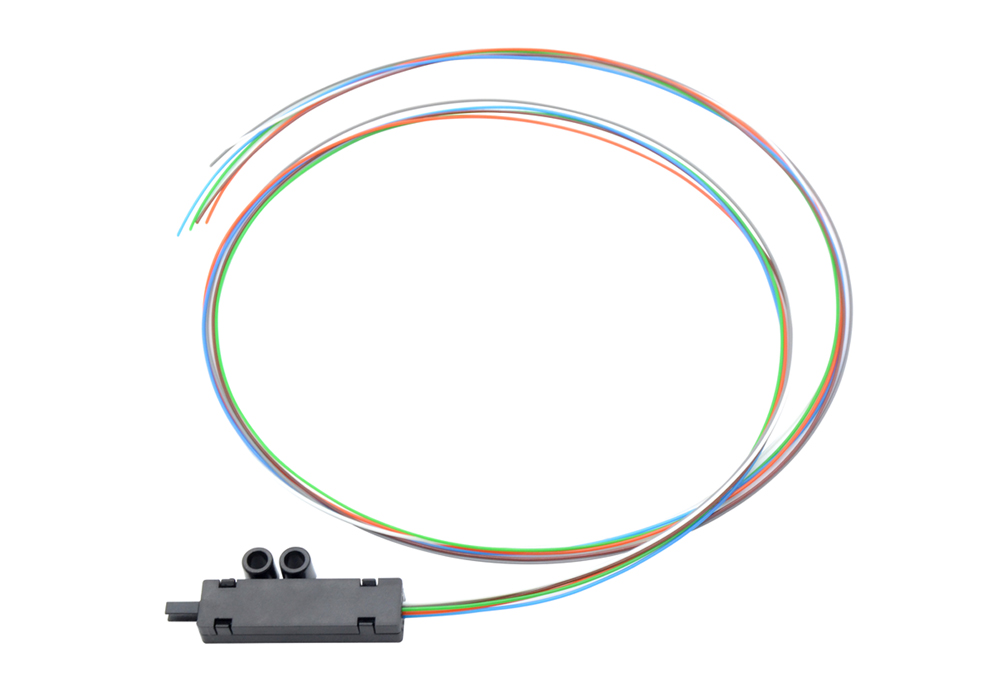

FAN-OUT KIT - FANKxx
NEXCONEC® Indoor buffer tube Fanout-Out Kits provide the ultimate solution for the field installation of connectors for the termination of 6, 12 and 24 fiber buffer tubes. These kits provide the most compact, easy to install fan-out solution. The compact design requires no additional hardware than the required for termination tight-buffered cables. The 900μm fanout assembly is color coded to match the fiber color scheme.
PRODUCT HIGHLIGHTS
- Designed for the quick and simple termination of loose tube and micro distribution (250μm bare fibers)
- Fiber Assembly unit protects fiber transition
- Separates and routes fibers into the fiber assembly unit’s buffer tubes, allowing secure and easy installation
- Colored furcation tubing in Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, and Aqua
- Ideal for point-to-point cabling of multiple fiber strands for a variety of applications
FEATURES
- Designed for the quick and simple termination of loose tube and micro distribution (250μm bare fibers)
- Fiber Assembly unit protects fiber transition
- Separates and routes fibers into the fiber assembly unit’s buffer tubes, allowing secure and easy installation
APPLICATIONS
- Colored furcation tubing in Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, and Aqua
- Ideal for point-to-point cabling of multiple fiber strands for a variety of applications
| Parameters | Value |
|---|---|
| Fiber Count | Max. 24 Core |
| Fan-out Length | 1500 mm |
| Fan-out Diameter | 900μm |
| Fan-out Color | 12 Colors |
| Temperature Range | -20 ~ +70°C |
| Part Number | Product Description |
|---|---|
| FANK6 | Fan-Out Kit Indoor 6 Fibers 1.5M Legs Colored |
| FANK12 | Fan-Out Kit Indoor 12 Fibers 1.5M Legs Colored |
| FANK24 | Fan-Out Kit Indoor 24 Fibers 1.5M Legs Colored |
