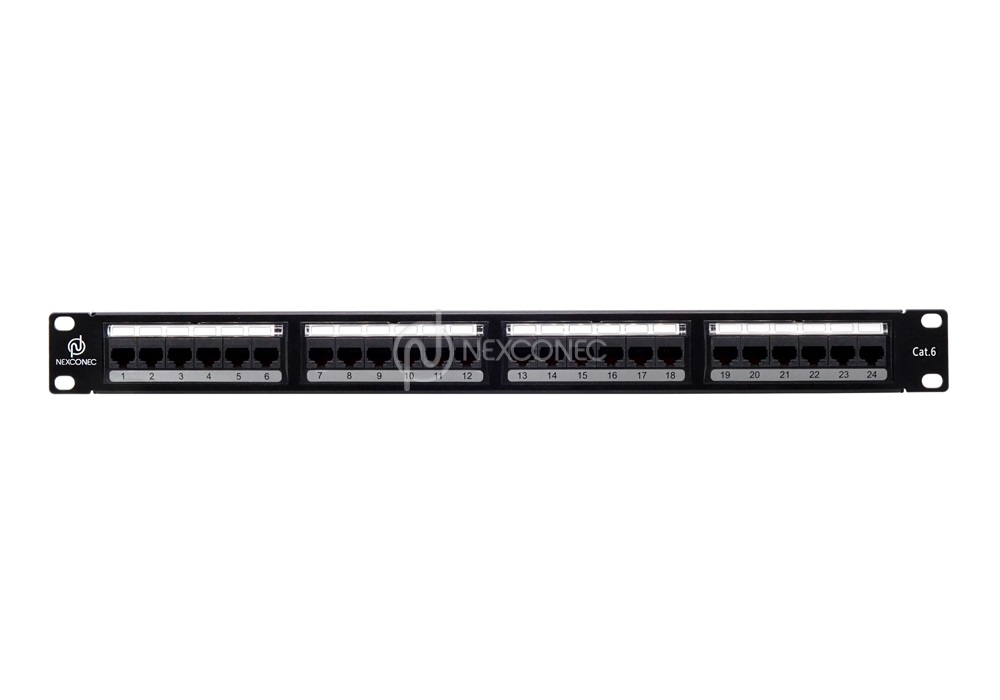

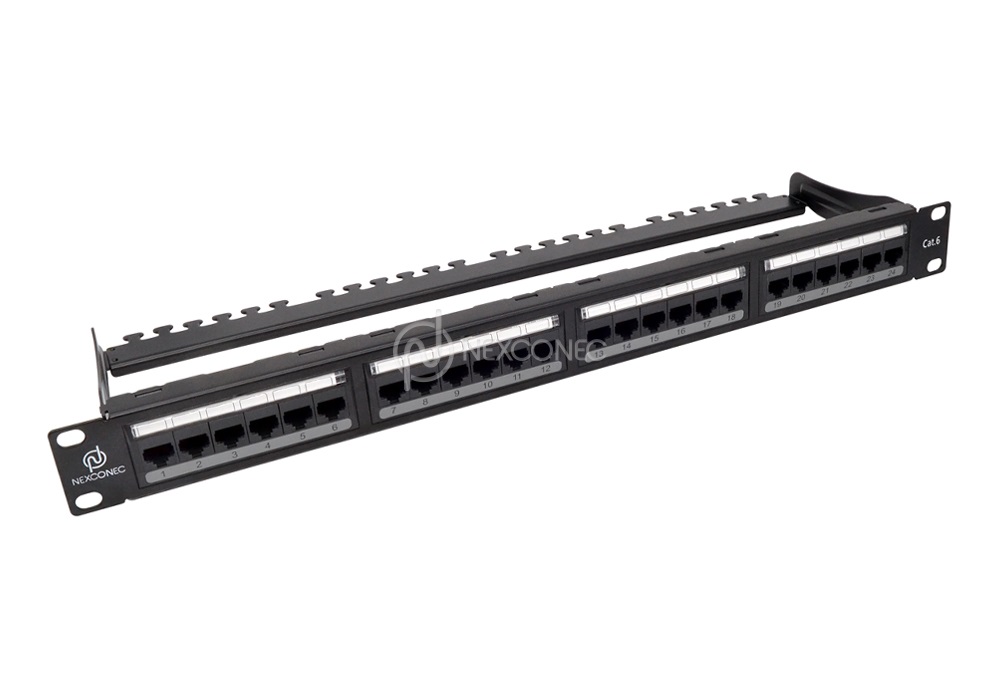

CAT6 UTP PCB Patch Panel - CM61UP
NEXCONEC Category 6 Printed Circuit Board (PCB) Unshielded Twisted Pair (UTP) patch panels conform to class E performance. Backwards compatible with category 5e distribution systems. The PCB is fully sealed for extra protection, and in-line IDC blocks. Wiring diagram, assists termination to either 568A or B wiring standards. Available in 1U 24 ports or 2U 48 ports. All panels are supplied with rear cable management bars and fixings.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA performance requirements

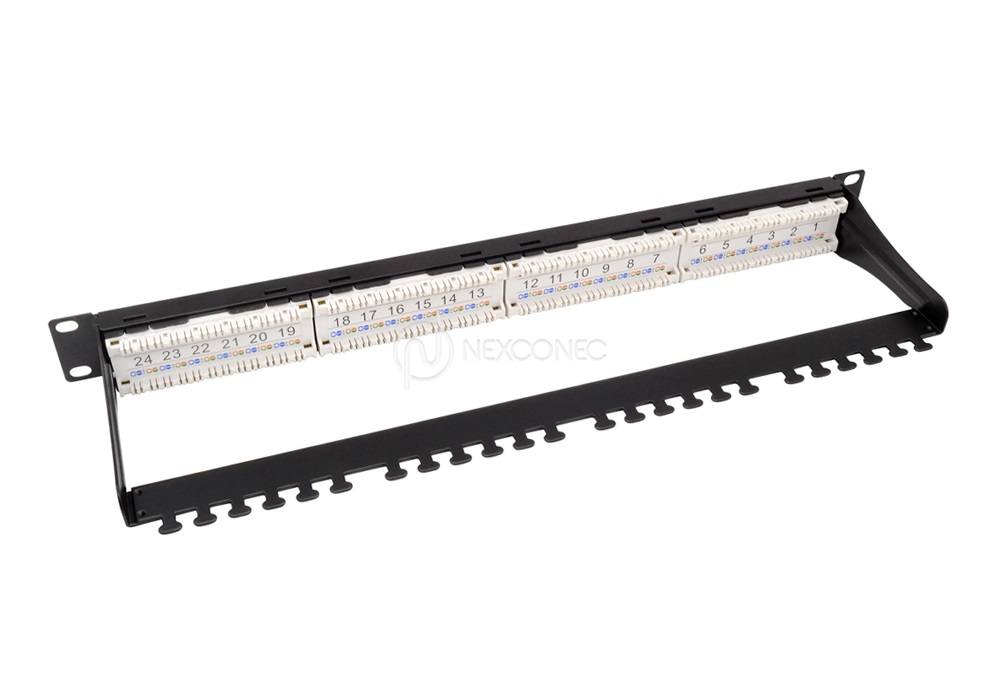

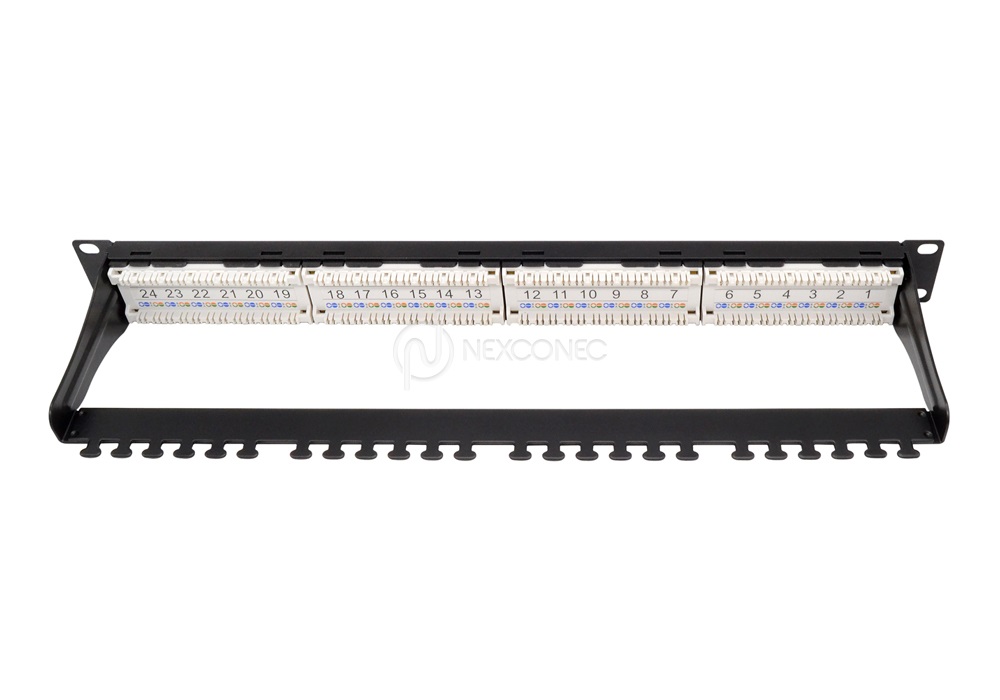

- 110 style IDC punch down type
- 19’’ rack mountable

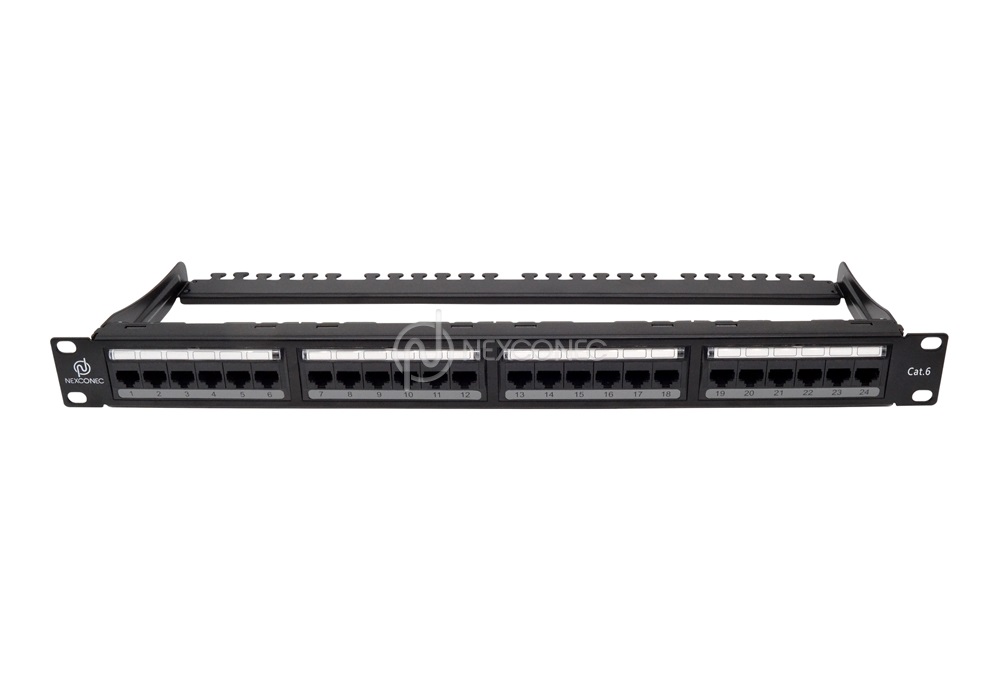

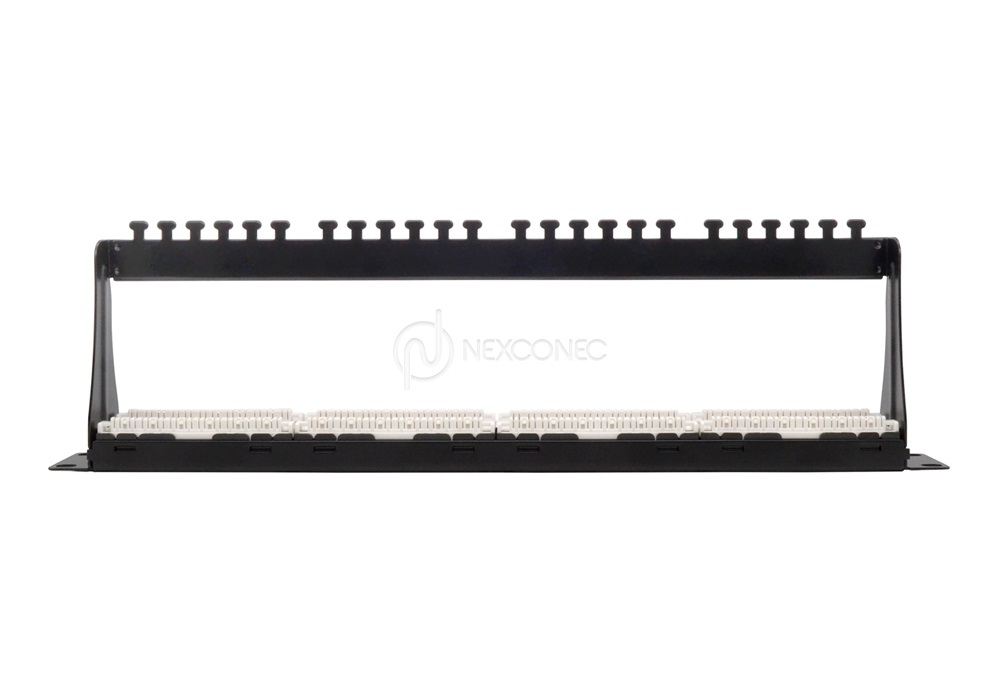

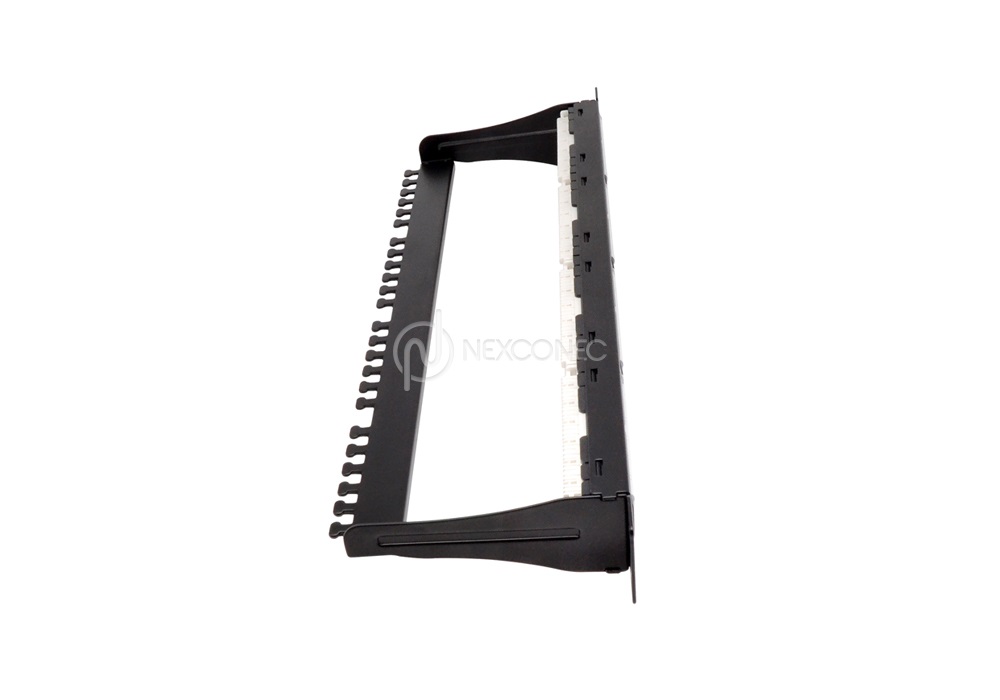

- Supplied with rear cable manager
- Available in 1U 24port and 2U 48port
- Removable port identification labelling
- Supports category 6 (Class E) networks running up to 250MHz applications
- Backwards compatible with category 5e distribution systems
| Parameters | Value |
|---|---|
| Height | 44.4mm |
| Width | 482.6mm |
| Housing Material | PBT + 15% GF UL94V-0 |
| IDC Material | Phosphor Bronze Stamp Pin 0.35mm |
| Contact Material | PC UL94V-0 Contact: Bronze + Nickel Plating |
| RJ45 Jack Life | Min. 750 Insertions |
| IDC Life | Min. 200 Terminations |
| Termination Wiring | TIA-568A or TIA-568B |
| Operating Temperature | -10°C / +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7, ETL Verified |
| RoHS | Compliant |
| Warranty | 12 Months |
| Depth | 134mm |
| Panel Frame | Carbon Steel, Powder Coating |
| Part Number | Product Description |
|---|---|
| CM61UP | NEXCONEC CAT6 1U 24port UTP PCB Patch Panel |
| CM62UP | NEXCONEC CAT6 2U 48port UTP PCB Patch Panel |
