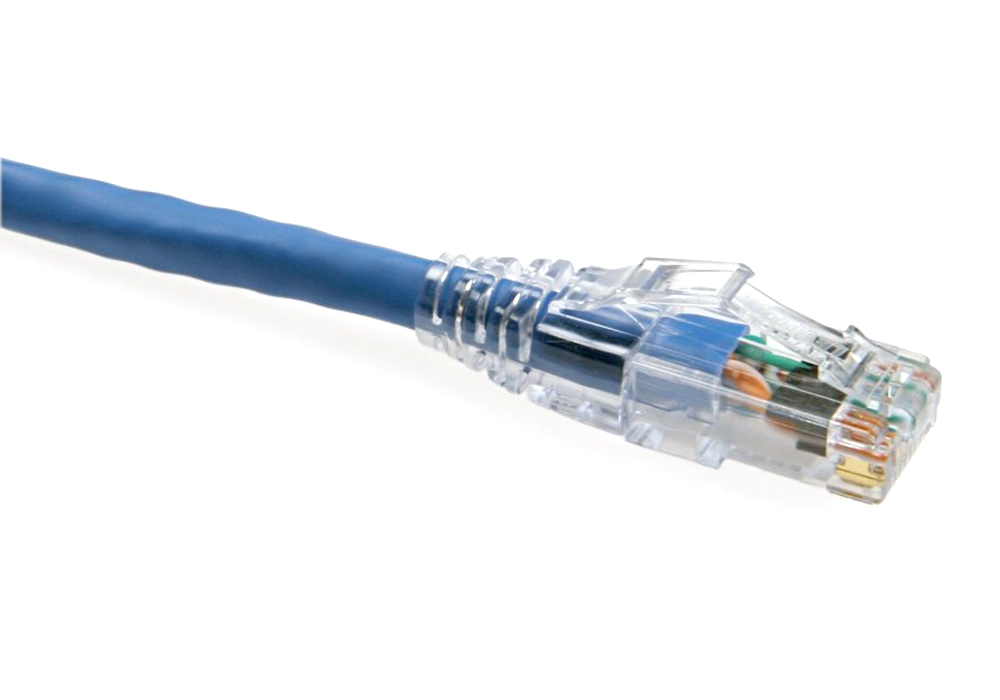

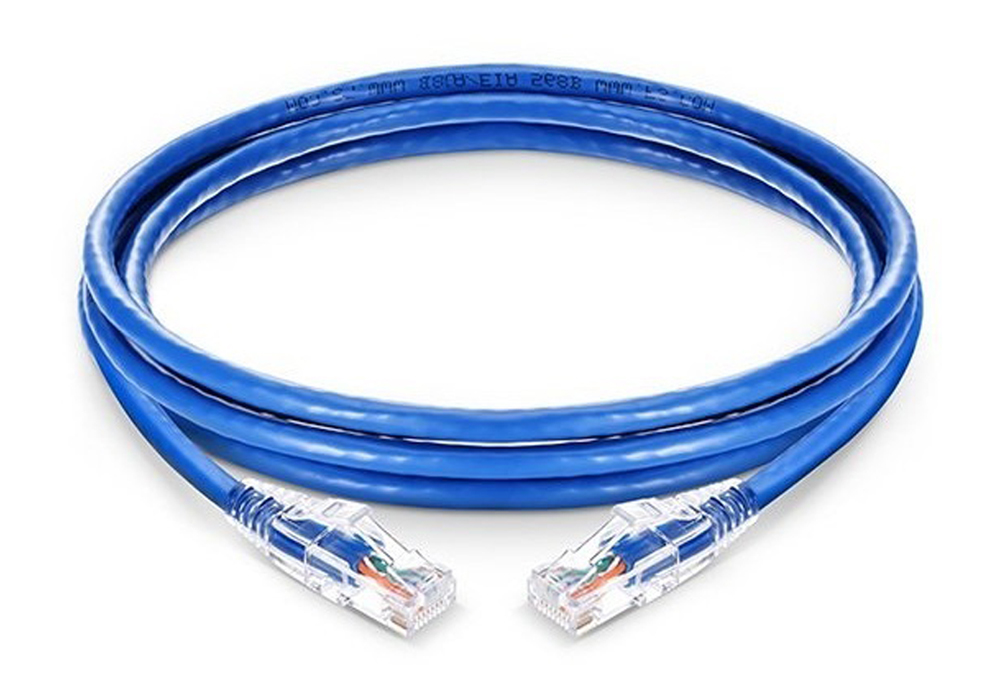

CAT.6 U/UTP PATCH CORD - CA6UxxLM00
NEXCONEC® Category 6 U/UTP patch cords are specifically designed and manufactured to deliver robust standards-based performance ensuring optimum bandwidth for today’s high-speed network applications.
Each Category 6 U/UTP patch cord exceed the minimum specified performance for Category 6 U/UTP patch cords and support all CLASS E applications.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA performance requirements
- Gold plated contact pins
- 24AWG premium grade copper conductor
- Support application with IEEE 802.3bt PoE++ Type 4 up to 20Mtrs
- Snag-less Connectors
- ETL certified channel test
- Supports category 6 (Class E) networks running up to 250MHz applications
- Connection between wall outlets or equipment
| Parameters | Unit | Value |
|---|---|---|
| Cable OD | mm | 6.0±0.15mm |
| Insulators Diameter | mm | 0.98±0.05mm |
| Termination Wiring | TIA-568B (Nexconec Standard) *See Cable Wiring Scheme on Datasheet for other wiring method request |
|
| Operating Temperature | ℃ | -20℃ ~ +75℃ |
| PoE Application | IEEE 802.3bt PoE++ Type 4 up to 20Mtrs | |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7, ETL Verified | |
| RoHS Compliance | Compliant | |
| Flame Retardant | IEC 60331-25, IEC 60332-1-1, IEC 60332-102 | |
| Warranty | 12 Months | |
| Conductor | 24AWG stranded copper | |
| Insulators Material | PE - Polyethylene |
| Part Number | Product Description |
|---|---|
| CA6UxxLM00 | Nexconec CAT6 U/UTP Patch Cord xx 00mtr LSZH |
| CA6UxxCM00 | Nexconec CAT6 U/UTP Patch Cord xx 00mtr CM |
| CA6UxxPM00 | Nexconec CAT6 U/UTP Patch Cord xx 00mtr PVC |
