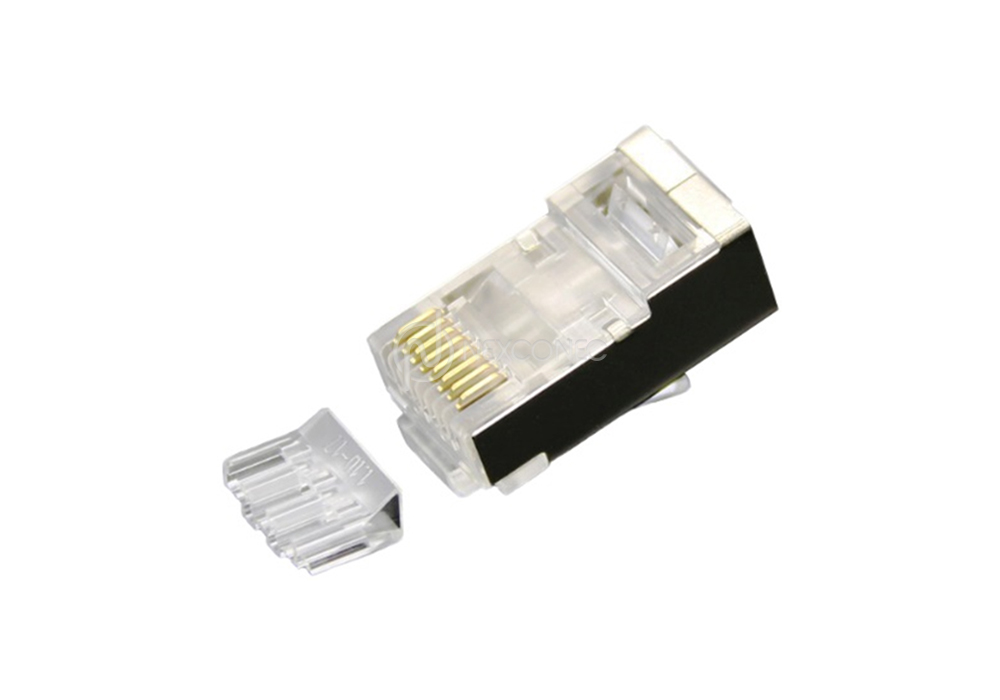

CAT.6 STP RJ45 CONNECTOR PLUG - CCRJ6Sx
NEXCONEC® Category 6 RJ45 plug exceeds the transmission line performance requirements of IEC and TIA for CLASS E/Category 6 systems. Each Category 6 RJ45 plug supports all applications designed for CLASS E networks, as defined within ISO/IEC 11801 (2nd Edition):2010 including ATM 1200, 1000BASET (Gigabit Ethernet) and 1G FCBASE-T.
FEATURES AND APPLICATIONS
- Easy and fast termination
- Fits all keystone jacks
- Suitable for shielded patch cord cables
- With wiring bar (guide) for easier termination on field
- Support Class E/category 6 standards networks
- Terminates 22AWG to 26AWG cables
| Parameters | Value |
|---|---|
| Shell Material | PC UL 94V-0, plus Metal shell |
| Contact Pins | Phosphor Bronze Gold over Nickel Plating |
| Termination Wiring | Support both T568A and T568B |
| Endurance Test | Min. 1000 Insertions |
| Plug Tension | Min.70 N in 1 minute |
| Part Number | Product Description |
|---|---|

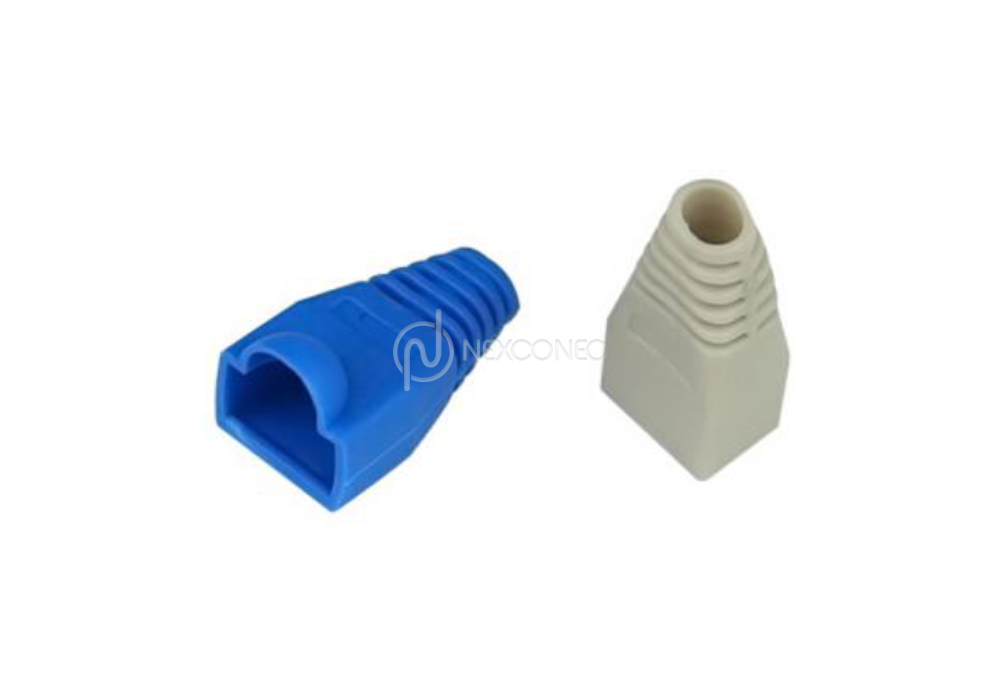

| CCRJ6SW | NEXCONEC CAT6 STP RJ45 Plug White Boot |
| CCRJ6SG | NEXCONEC CAT6 STP RJ45 Plug Grey Boot |
| CCRJ6SB | NEXCONEC CAT6 STP RJ45 Plug Blue Boot |
