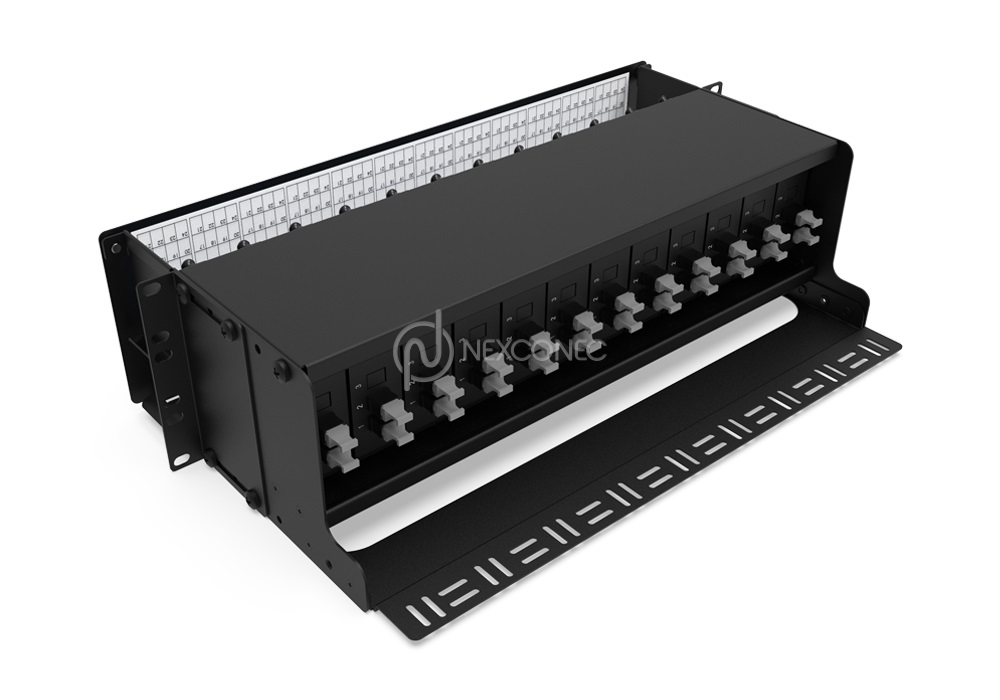

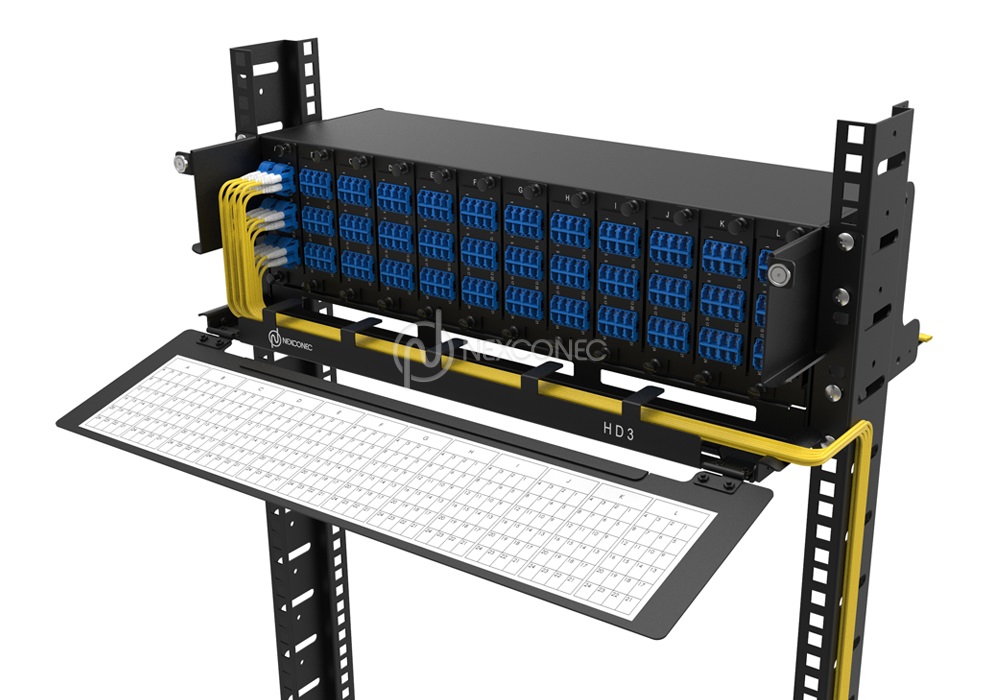

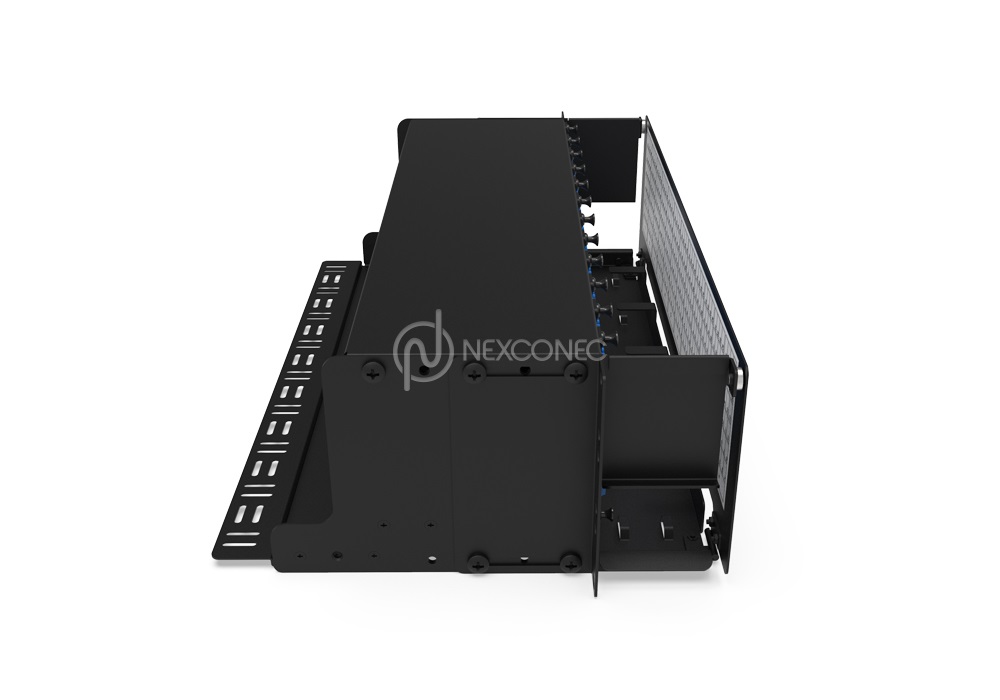

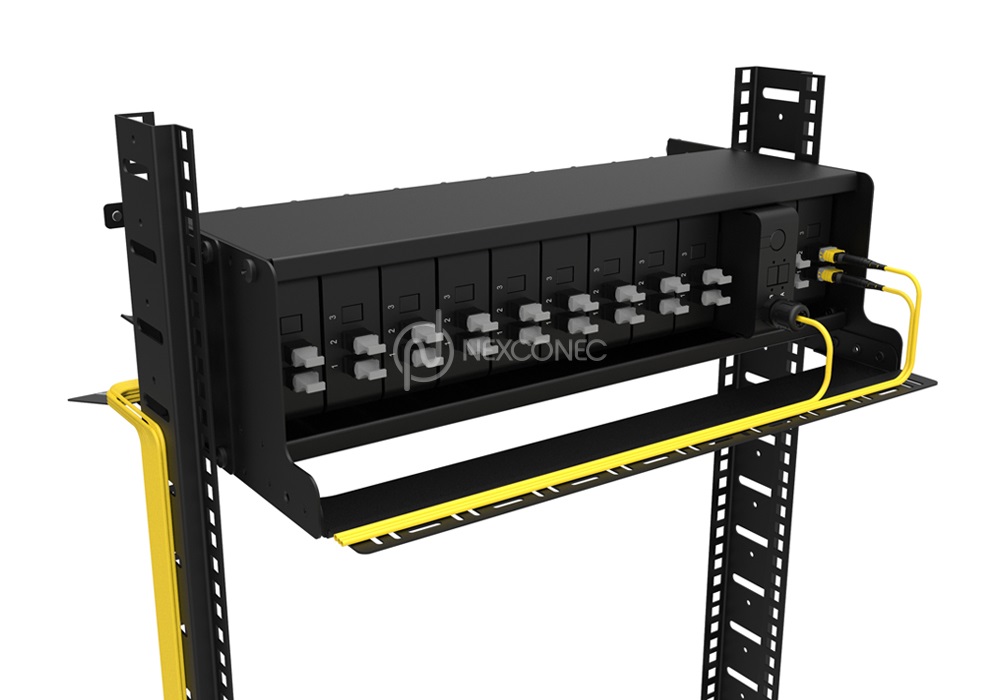

3U 12 Slots HD Modular Fixed Frame (Up to 288FO) - HD3

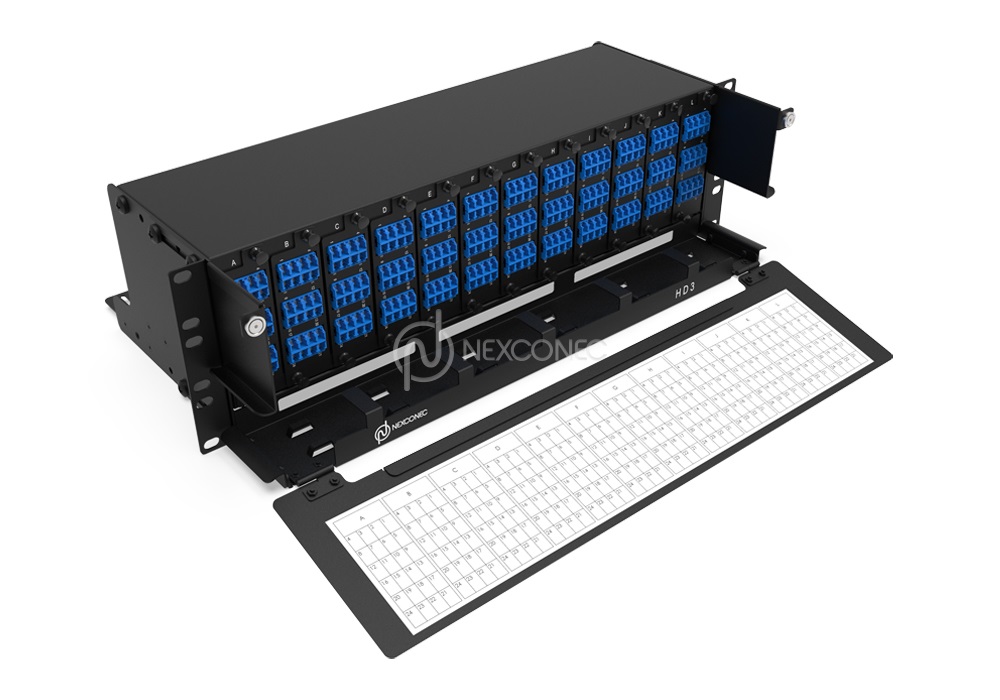

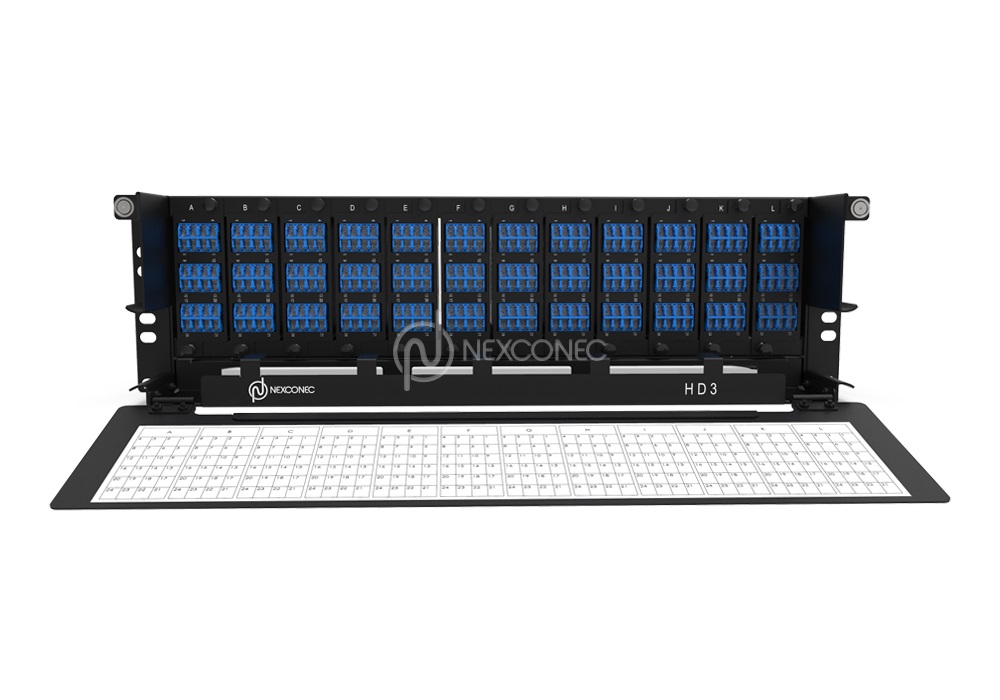

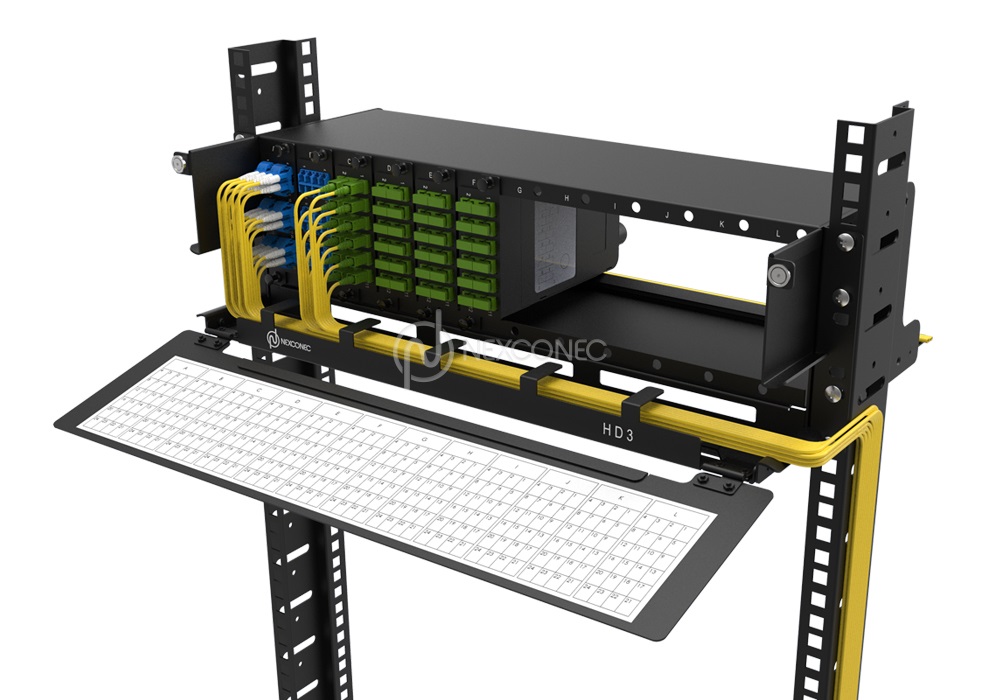

NEXCONEC® HD3 High Density fiber optic 3U fixed frame allows to scale up to 12 HD cassettes for a total of 288FO with LC configuration. Shallow depth of 280mm only to fit MMR 300mm Depth ODF.
Modular panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru Plates, Next-Gen Transition modules 100G/40G to 25G/10G, or conventional splicing. Multi-functional chassis which allow easy access during installation or re-work with no disturbance of the existing cables or fibers.

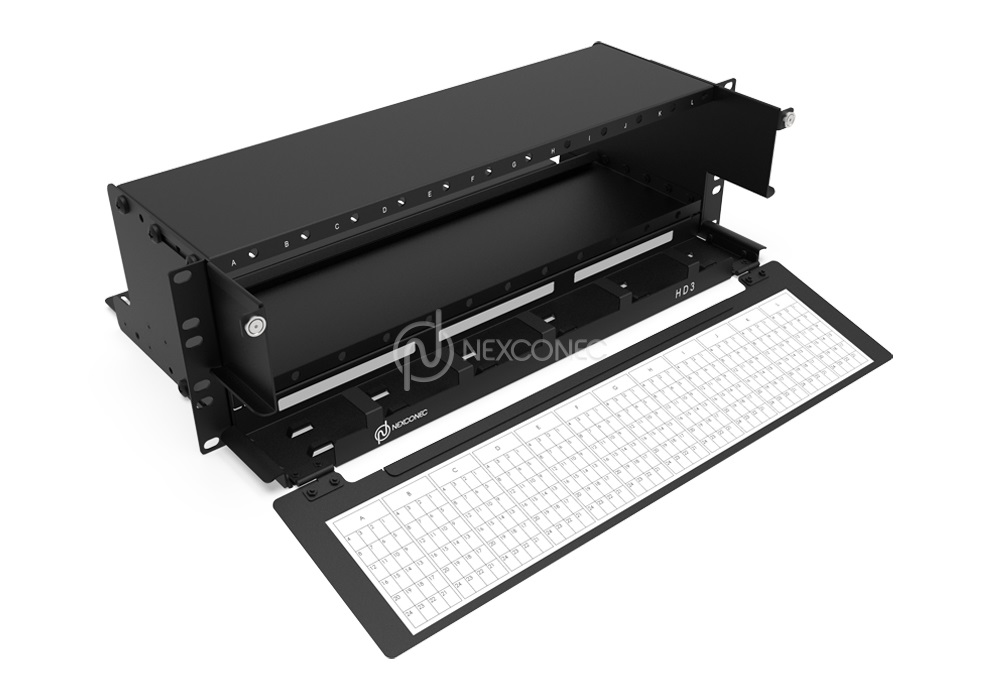

Frame is supplied unloaded and the modules and plates are supplied separately.
PRODUCT HIGHLIGHTS
- 12 Slots HD in 3U space
- Compact size for installation shallow-depth racks
- Up to 288FO in LC, 144FO in SC

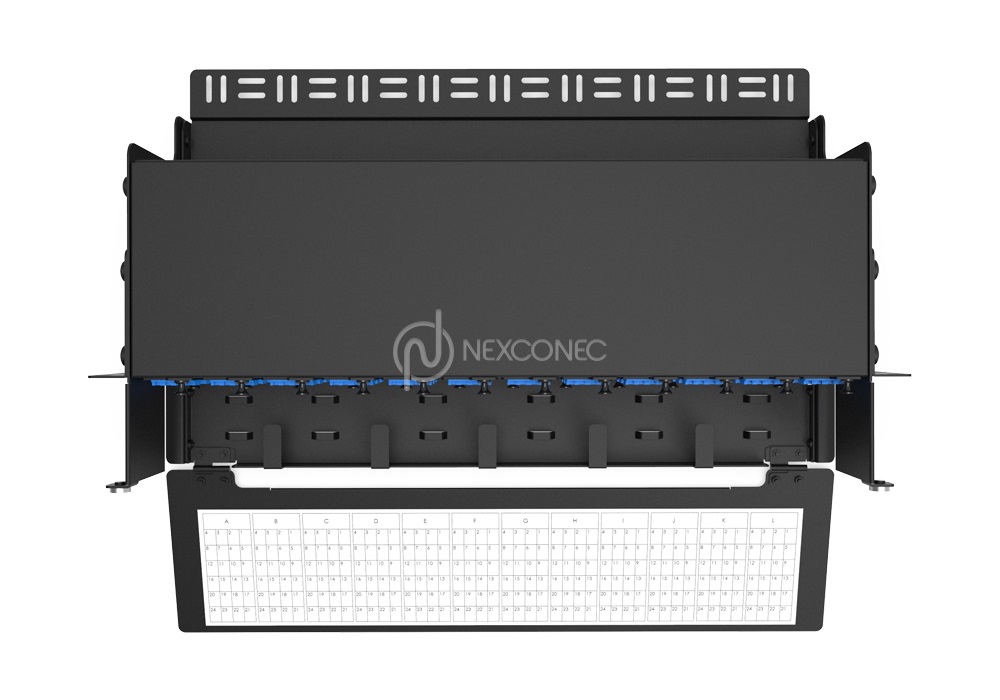

- Fully integrated fiber management with Facilitated patch cord installation
- Modular with MTP®/MPO, Splicing Cassette or Adapter plates or copper module
FEATURES
- 12 Slots HD in 3U space
- Compact size for installation shallow-depth racks
- Up to 288FO in LC, 144FO in SC
- Fully integrated fiber management with Facilitated patch cord installation
- Individually labelled ports
- Modular with MTP®/MPO, Splicing Cassette or Adapter plates or copper module
APPLICATIONS
- Datacenter storage area network & Central Office, POP
- Indoor application
- Enterprise / Campus
SPECIFICATIONS

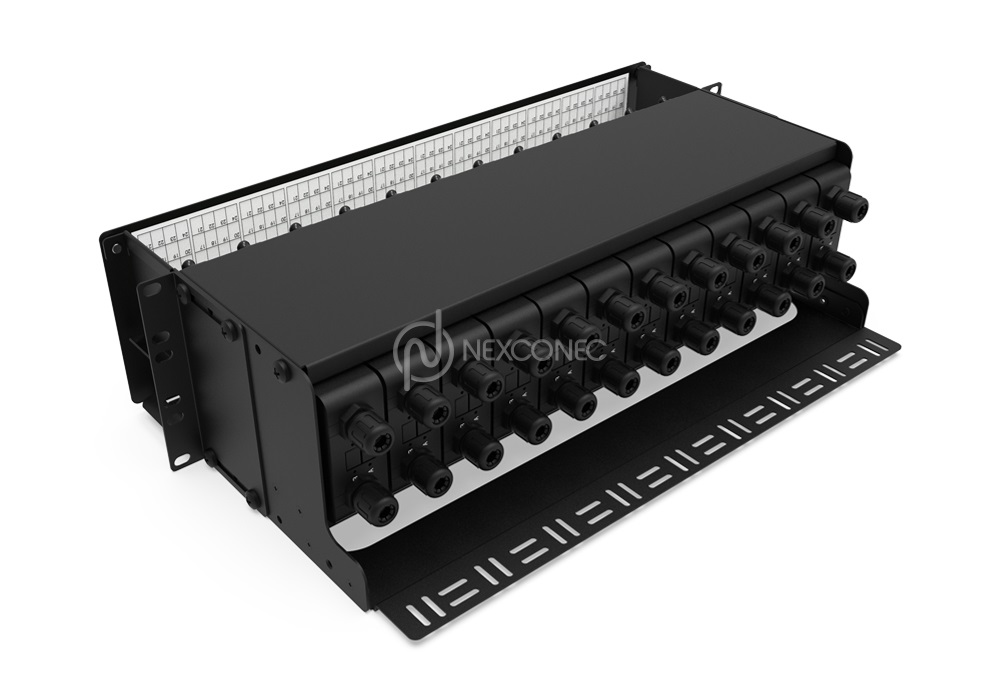

| Parameters | Value |
|---|---|
| Mounting Type | Rack 19” |
| Opening Type | Fixed Chassis |
| Access Type | Front Access |
| Front Cable Management | Hinged Metal Door with patch cord bottom management |
| Cable Entry Direction | Rear, left and right |
| Rear Cable Management | Yes |
| Height Unit | 3U |
| Slot Type | HD Modules and HD Plates |
| Number of Slots | 12 Slots |
| Fiber Capacity | Up to 288FO in LC, 144FO in SC |
| Material | Cold Rolled Steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Lockable | No (optional) |
| Dimensions (W x D x H) | 483 x 280 x 132 mm |
| Net Weight | 3.6 Kg |
| Material Compliant | RoHS, REACH / SVHC |
| Telecommunication Standards | TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754 |
| Part Number | Product Description |
|---|---|
| HD3 | 3U 12 Slots HD Modular Fixed Frame - Unloaded (Including Front Management) |
