2U Enclosure 6 slots LGX - MP3PP02

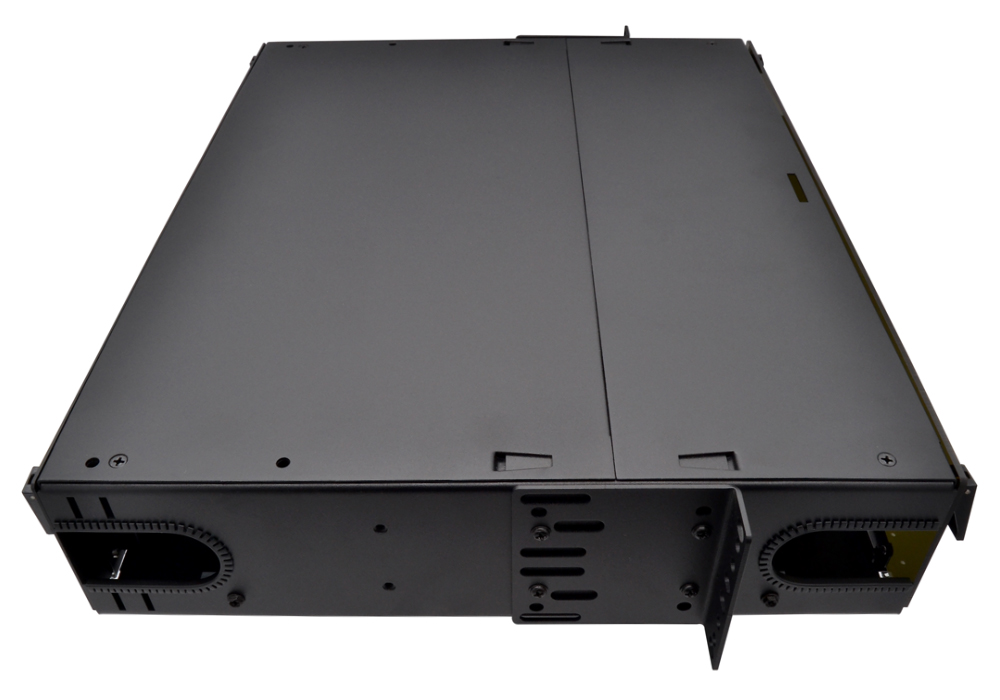

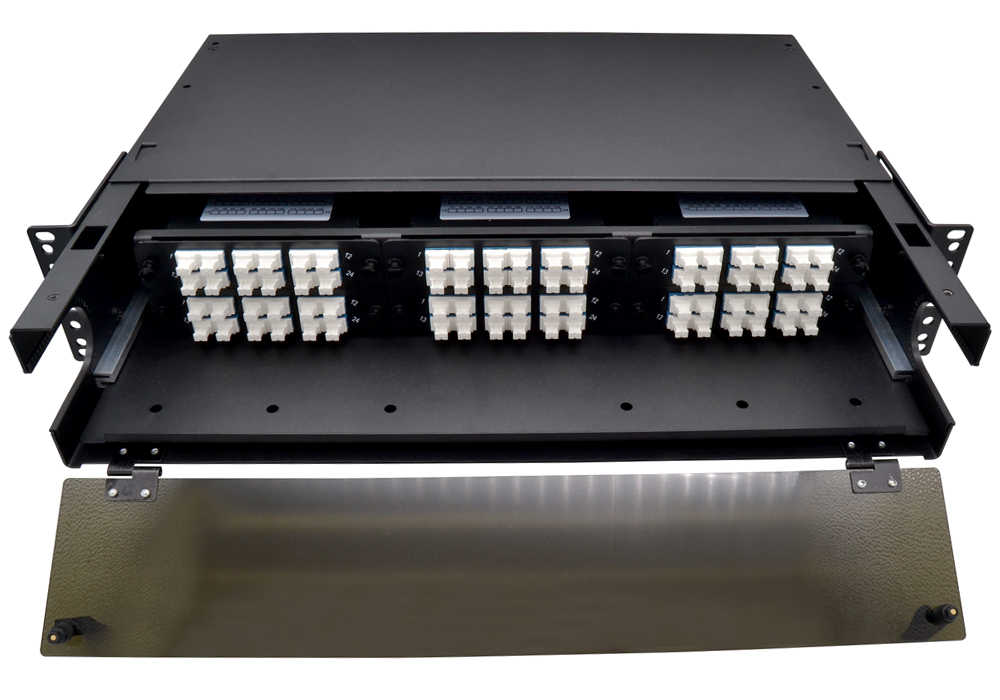

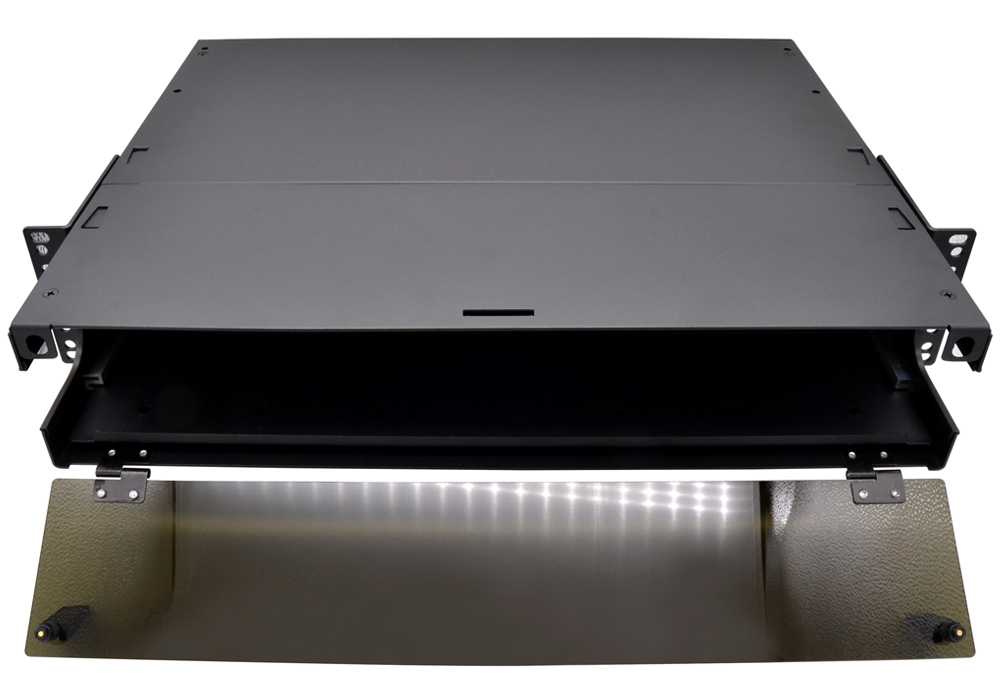

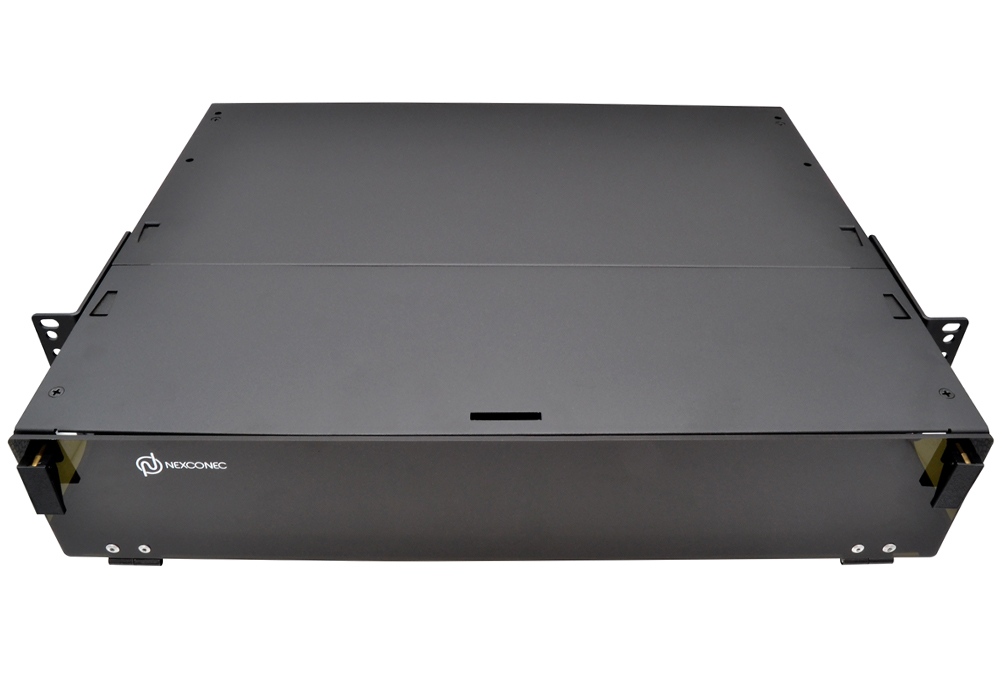

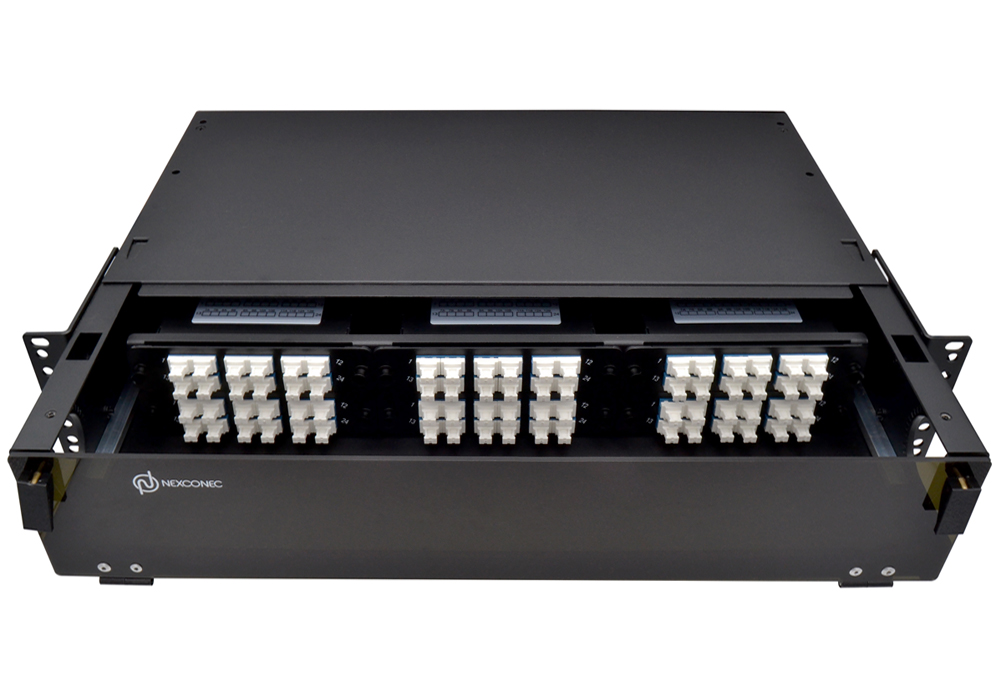

NEXCONEC® 2U Rack Mount Enclosure accepts 6 LGX pass-thru adapter plates for a total of 144FO in LC configuration (72FO in SC). Modular panel for multi-application with MTP®/MPO System, Pre-terminated cables or conventional splicing. Easy front access with hinged front and rear removable doors as well as lid.

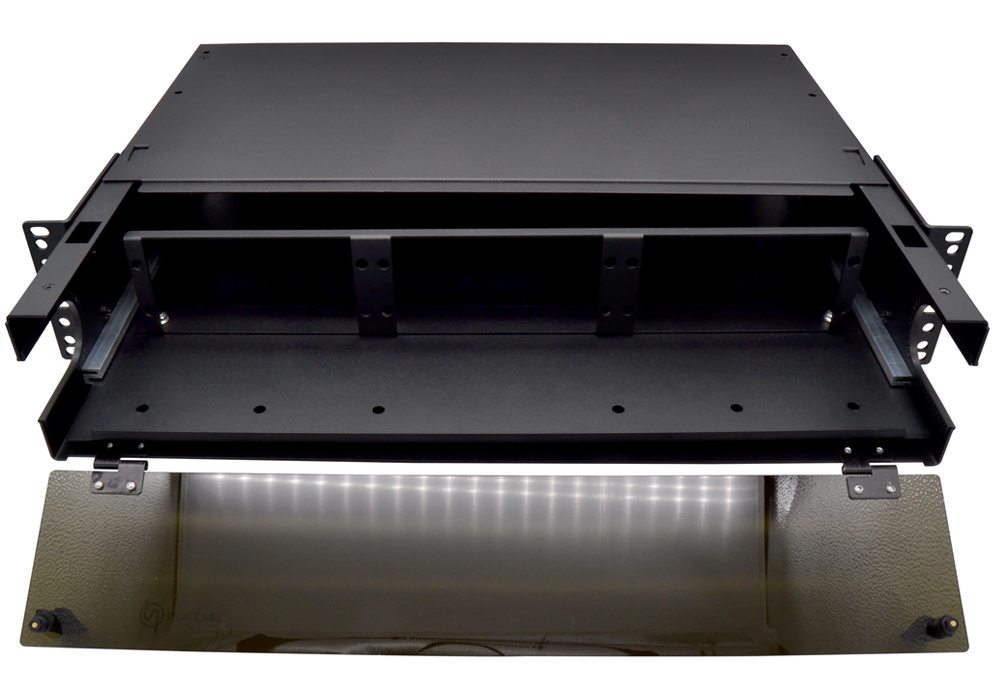

Panel is supplied unloaded and the modules and plates are supplied separately.
PRODUCT HIGHLIGHTS
- 6 Slots LGX in 2U space
- Up to 144FO in LC / 72FO in SC

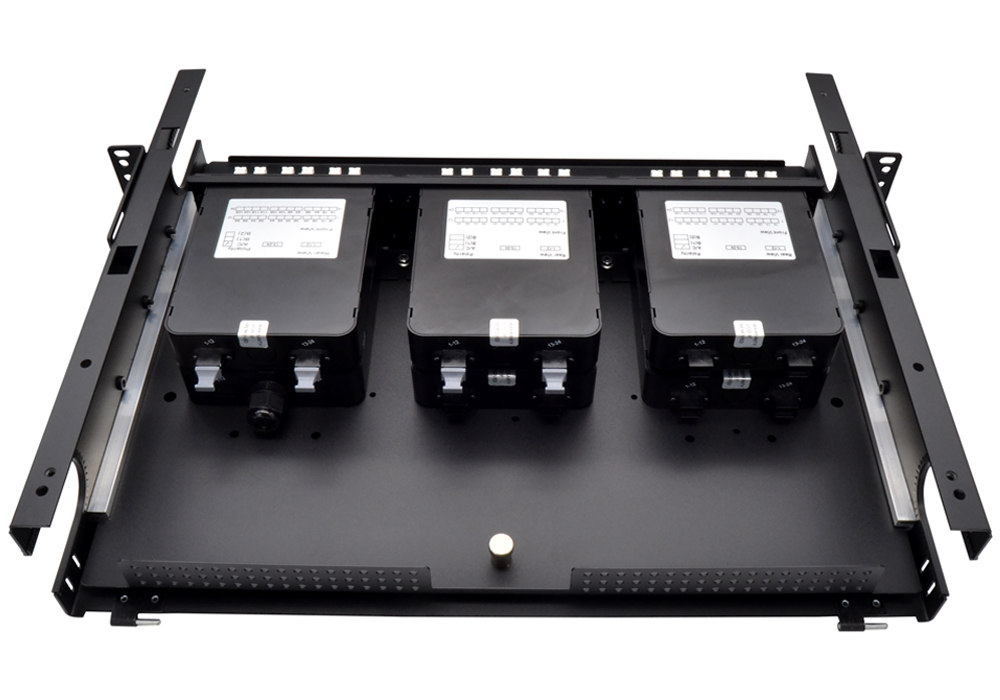

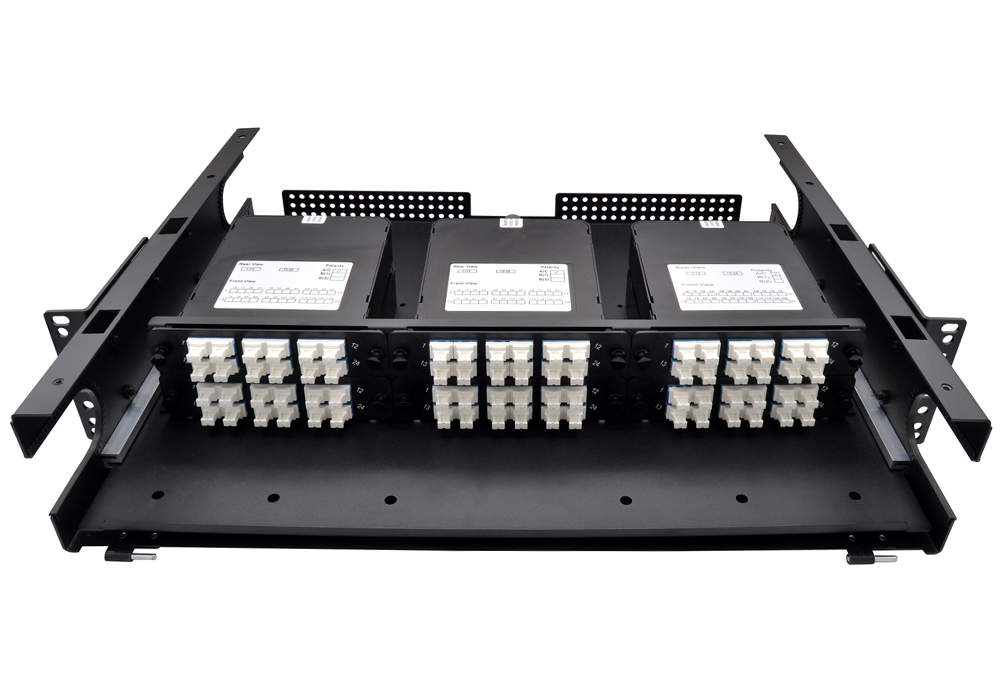

- Modular with LGX MTP®/MPO Cassette or Adapter plates
- Slide-out tray with spring loaded latch
- RoHS, REACH and SVHC
- Accepts Indoor and Outdoor Pre-terminated cables, MTP®/MPO Modules and Splicing
FEATURES
- 6 Slots LGX in 2U space
- Up to 144FO in LC / 72FO in SC
- Modular with LGX MTP®/MPO Cassette or Adapter plates
- Slide-out tray with spring loaded latch
- RoHS, REACH and SVHC
APPLICATIONS
- Enterprise network & Datacenter
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables, MTP®/MPO Modules and Splicing
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Rack 19” and optional bracket for 23” |
| Opening Type | Slide-out tray with spring loaded stop latch |
| Access Type | Front & Rear access, Removable top cover |
| Front Cable Management | Hinged drop-down door |
| Cable Entry Direction | Left and Right |
| Rear Cable Management | Rear Hinged drop-down door |
| Height Unit | 2U |
| Slot Type | LGX Modules and LGX Plates |
| Number of Slots | 6 Slots |
| Fiber Capacity | 144FO in LC / 72FO in SC |
| Material | Cold Rolled Steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H) | 482 x 350 x 88 mm |
| Net Weight | 7.5 Kg |
| Material Compliant | RoHS, REACH / SVHC |
| Part Number | Product Description |
|---|---|
| MP3PP02 | 2U Rack Mount Enclosure 6 Slots LGX - Unloaded |
