1U 4 Slots HD Modular Sliding Panel - MP4PP03

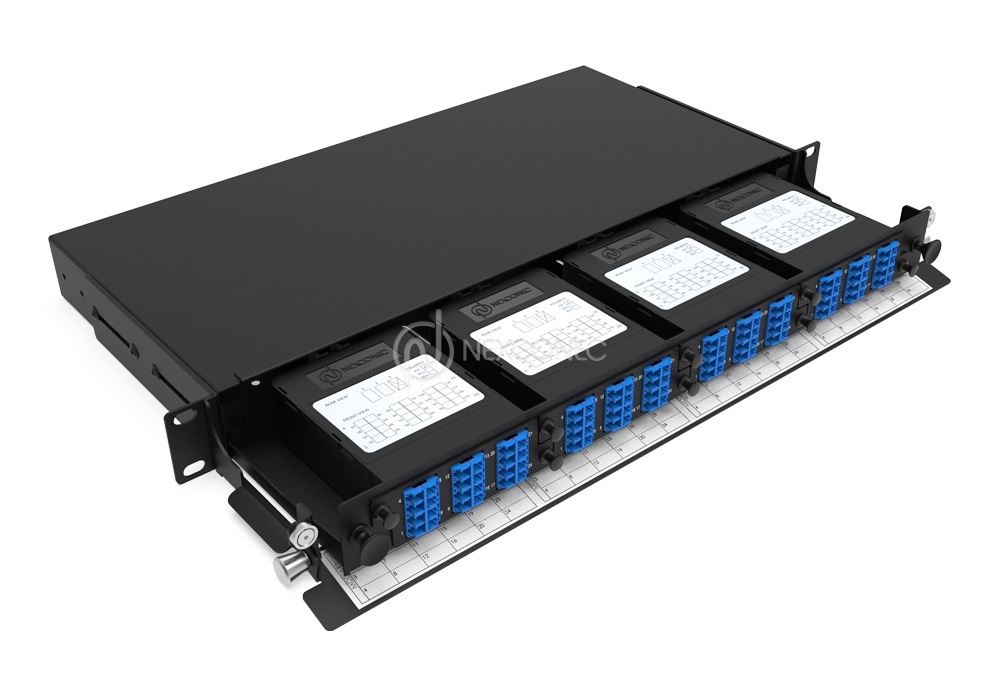

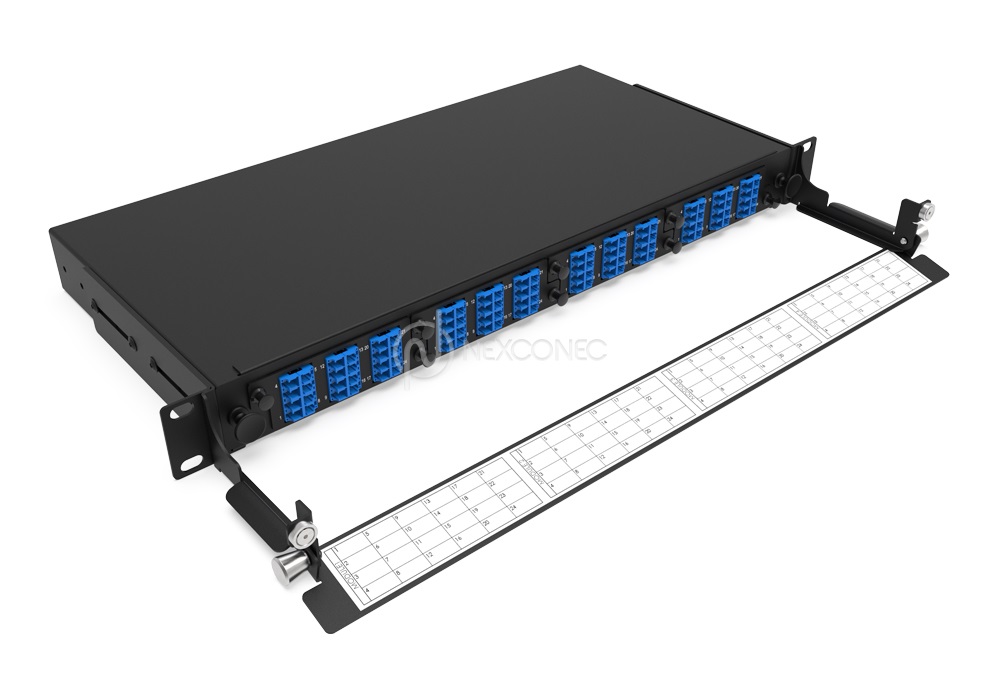

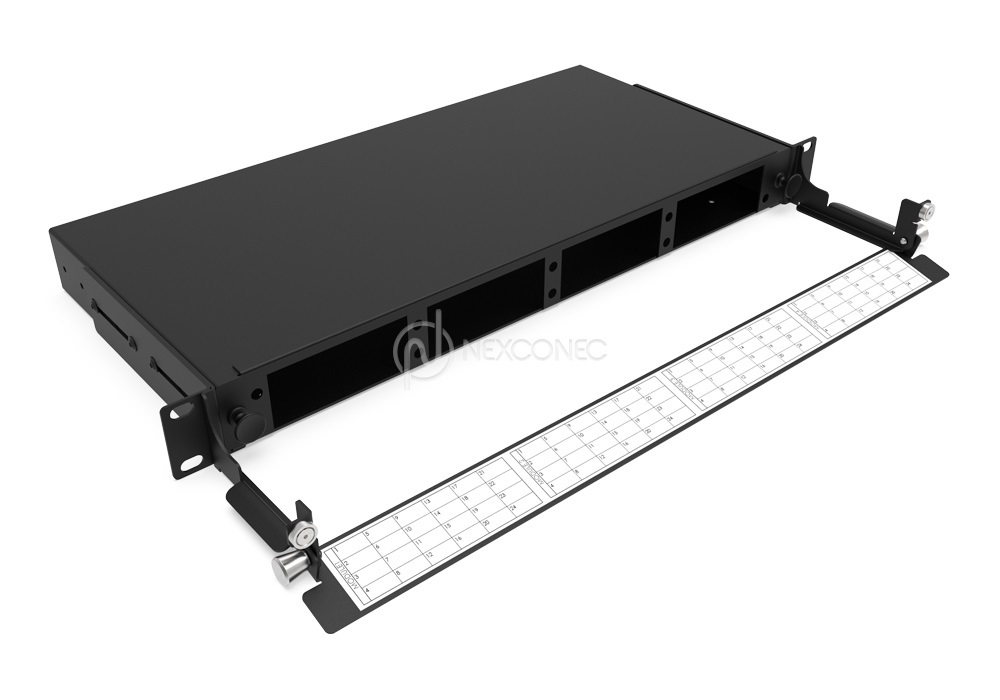

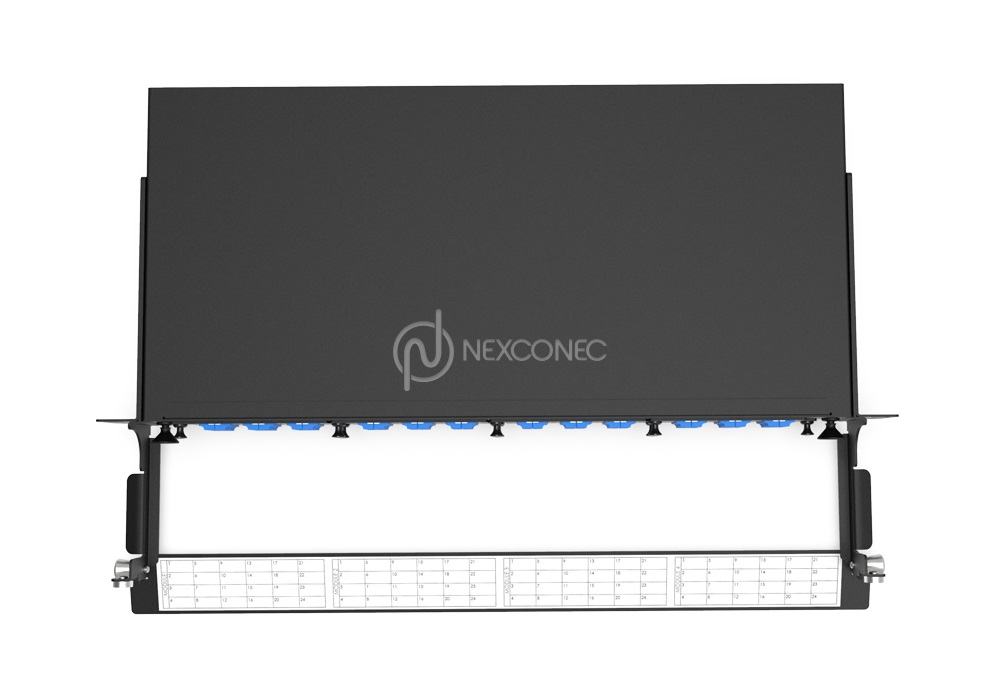

NEXCONEC^® high density modular sliding patch panel accepts up to 4 HD Modules or HD pass-thru adapter plates for a total of 96FO in LC or 48FO in SC configuration. HD optical fiber modular panel for multi-application with MPO System, Pre-terminated cables or conventional splicing.

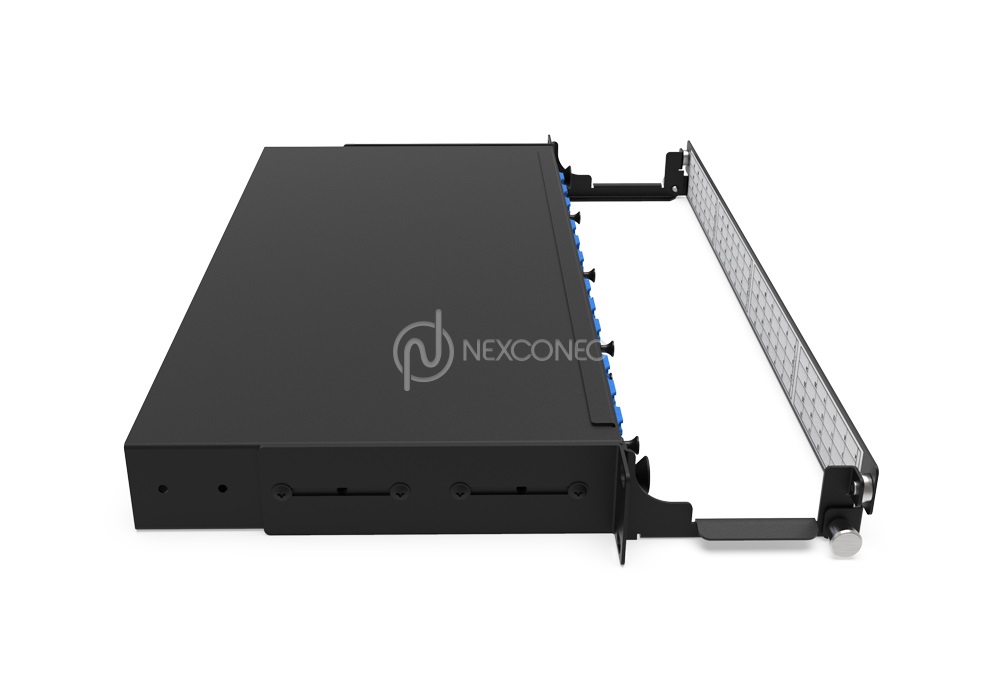

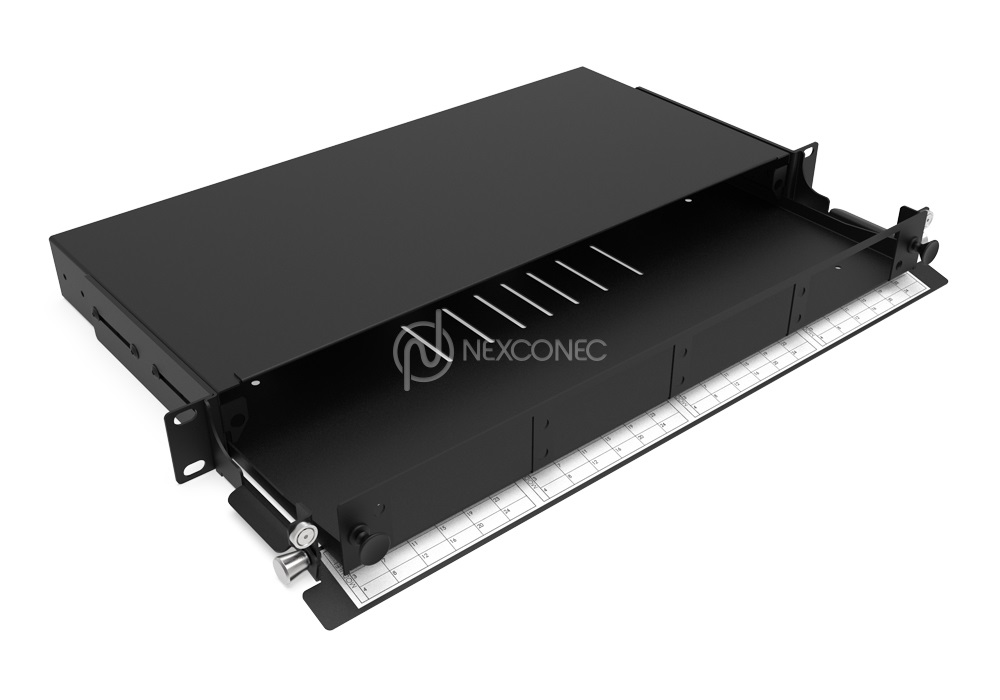

Easy front access with hinged cable management bar which provides protection of the patch cords as well as labelling. Sliding patch panel is supplied unloaded and the modules and adapters plates are supplied separately.

PRODUCT HIGHLIGHTS

4 Slots HD in 1U space
Up to 96FO in LC or 48FO in SC
Modular Flexibility and Robust Construction
Modular with MPO, Splice Cassettes or Adapter plates
RoHS, REACH and SVHC
Accepts Indoor and Outdoor Pre-terminated cables, MTP^®/MPO trunks and Splicing

PRODUCT INFORMATION

DATASHEET.pdf	View	Download
TECHNICAL DRAWING.pdf	View	Download

FEATURES

4 Slots HD in 1U space
Up to 96FO in LC or 48FO in SC
Modular Flexibility and Robust Construction
Modular with MPO, Splice Cassettes or Adapter plates
Easy Installation & Access
RoHS, REACH and SVHC

APPLICATIONS

Datacenter & Enterprise network
Indoor application
Accepts Indoor and Outdoor Pre-terminated cables, MTP^®/MPO trunks and Splicing

SPECIFICATIONS

Parameters	Value
Mounting Type	Rack 19”
Opening Type	Sliding tray with 45° open working angle
Access Type	Front access
Front Cable Management	Removable drop-down door
Cable Entry Direction	Rear

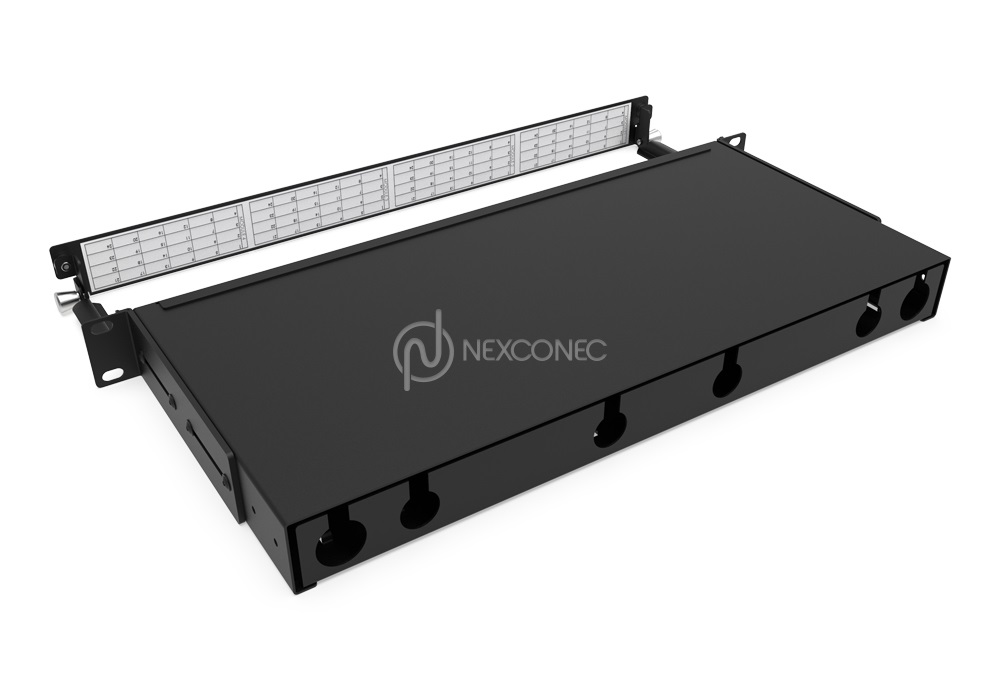

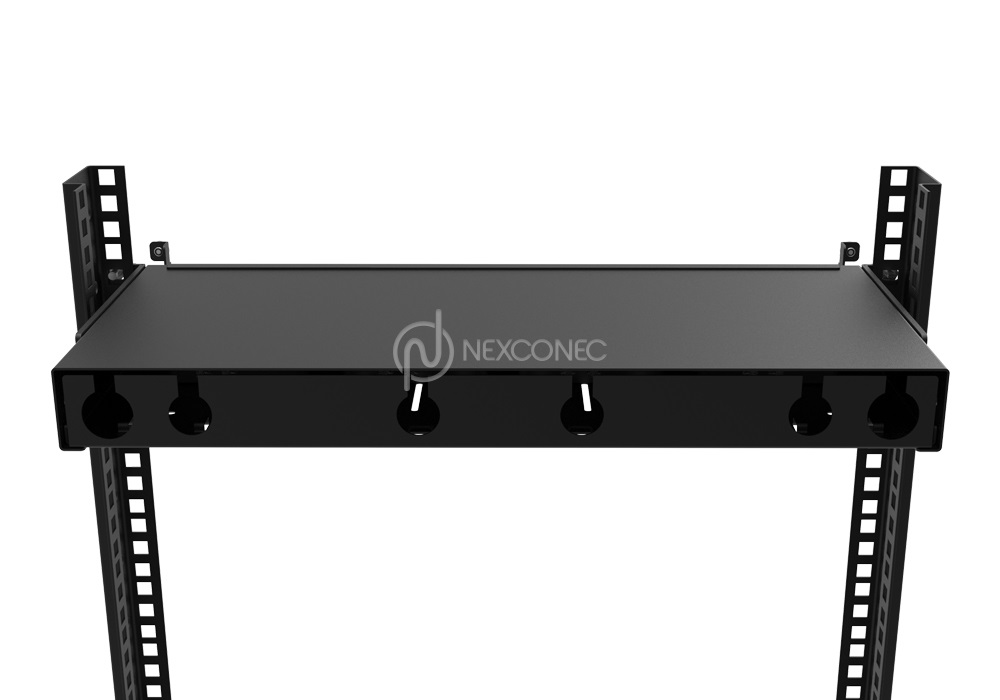

Rear Cable Management	6 Cable entries
Height Unit	1U
Slot Type	HD Modules and HD Plates
Number of Slots	4 Slots
Fiber Capacity	96FO in LC / 48FO in SC
Material	Metal Part: Cold Rolled Steel \| Plastic Part: PC+ABS
Housing Color	Metal Part: Black (RAL 9004) \| Plastic Part: Grey Blue (RAL 5008)
Application	Indoor IP20
Lockable	No
Dimensions (W x D x H)	485 x 296.8 x 44 mm
Net Weight	3KG
Material Compliant	RoHS, REACH / SVHC
