1U 4 Slots HD Modular Fixed Frame - MP4PP01

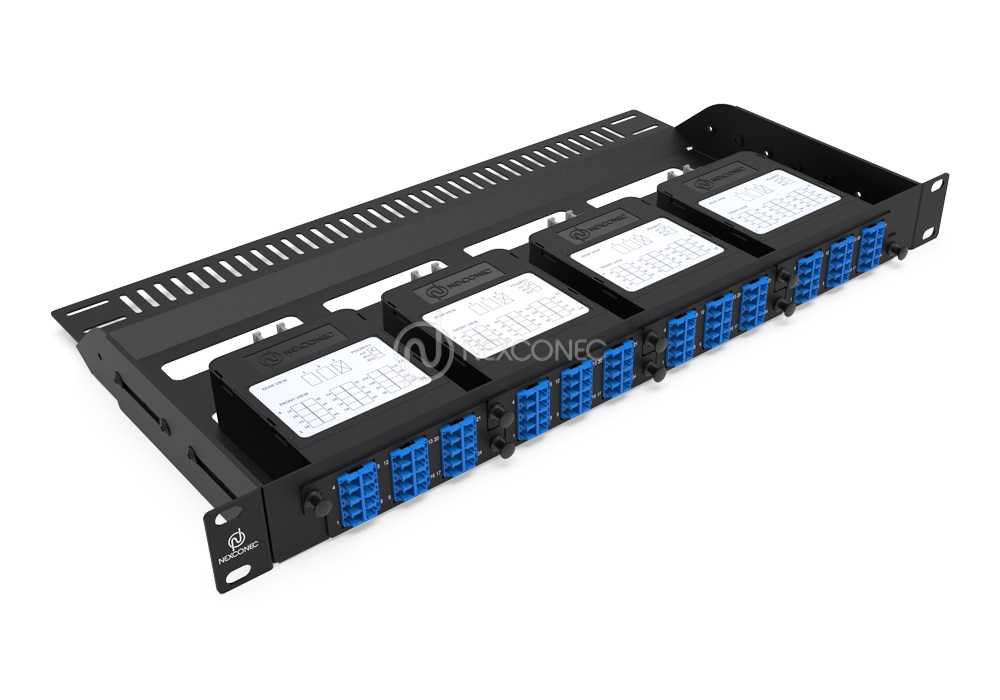

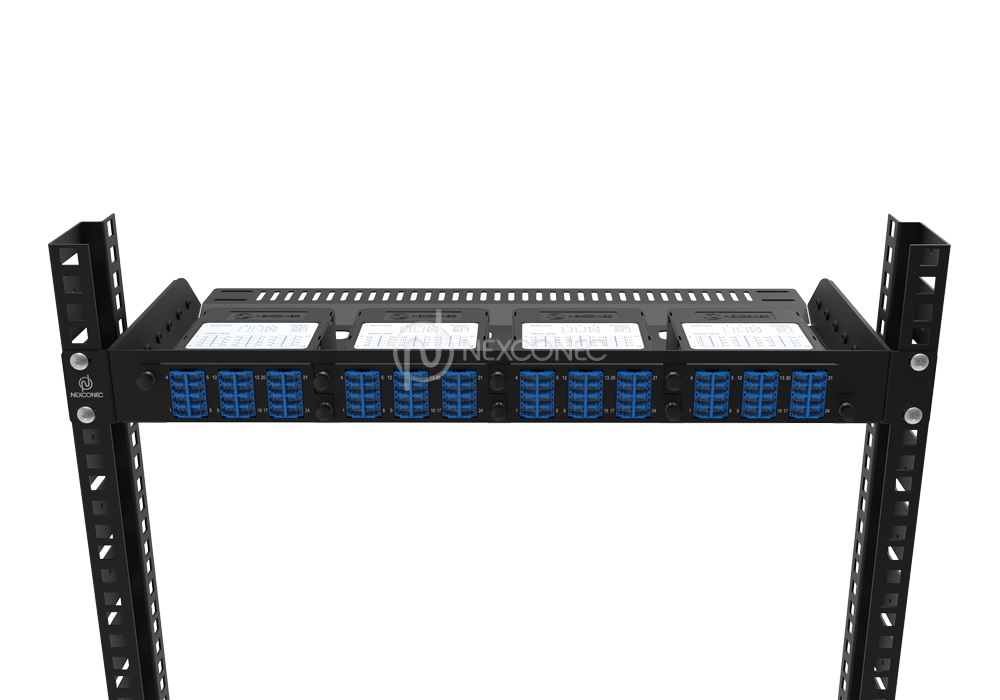

The NEXCONEC^® high-density 1U modular fixed frame is designed to optimize fiber management in space-constrained environments. Featuring four dedicated HD slots, this rack-mountable chassis supports up to four HD Modules or HD passthrough adapter plates, enabling a maximum fiber capacity of 96 fibers when fully loaded with LC configurations.

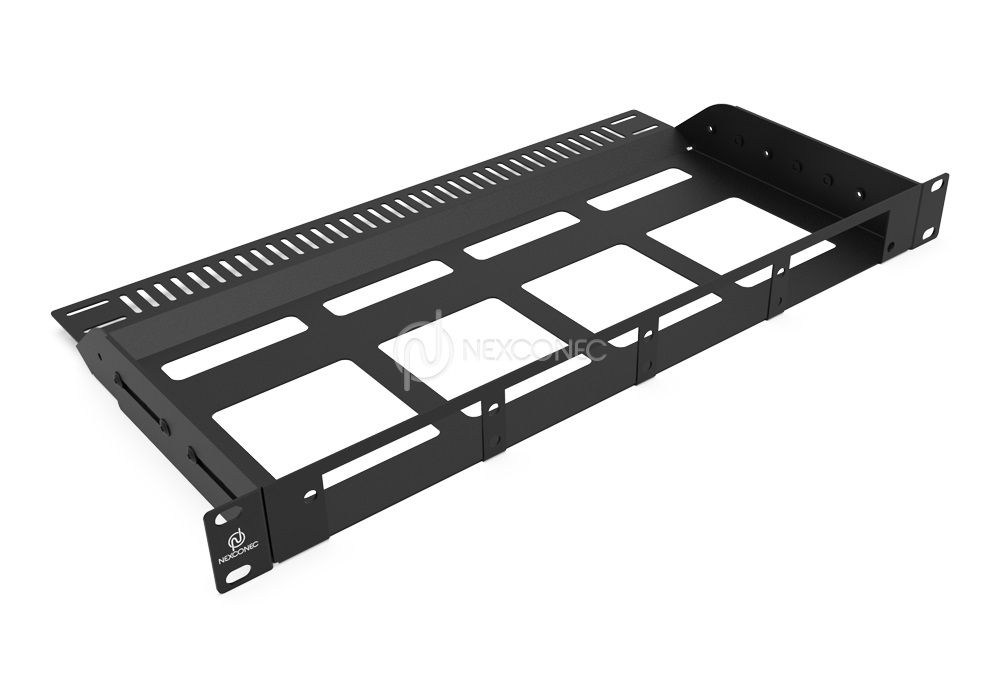

Panels are supplied unloaded and the modules and plates are supplied separately.

PRODUCT HIGHLIGHTS

4 Slots HD in 1U space
Up to 96FO in LC
Modular Flexibility and Robust Construction
Modular with MPO Cassette or Adapter plates
RoHS, REACH and SVHC
Accepts Indoor and Outdoor Pre-terminated cables, MTP^®/MPO trunks and Splicing

PRODUCT INFORMATION

DATASHEET.pdf	View	Download
TECHNICAL DRAWING.pdf	View	Download
VISIO.vsdx		Download

FEATURES

4 Slots HD in 1U space
Up to 96FO in LC
Modular Flexibility and Robust Construction
Modular with MPO Cassette or Adapter plates
Easy Installation & Access
RoHS, REACH and SVHC

APPLICATIONS

Datacenter & Enterprise network
Indoor application
Accepts Indoor and Outdoor Pre-terminated cables, MTP^®/MPO trunks and Splicing

SPECIFICATIONS

Parameters	Value
Mounting Type	Rack 19”
Opening Type	Fixed
Access Type	Front access
Front Cable Management	Optional - Removable drop-down door
Cable Entry Direction	Rear
Rear Cable Management	Support bar
Height Unit	1U
Slot Type	HD Modules and HD Plates
Number of Slots	4 Slots
Fiber Capacity	96FO in LC
Material	Cold Rolled Steel
Housing Color	Black
Application	Indoor IP20
Lockable	No
Dimensions (W x D x H)	482 x 239.9 x 43.4 mm
Net Weight	2KG
Material Compliant	RoHS, REACH / SVHC
