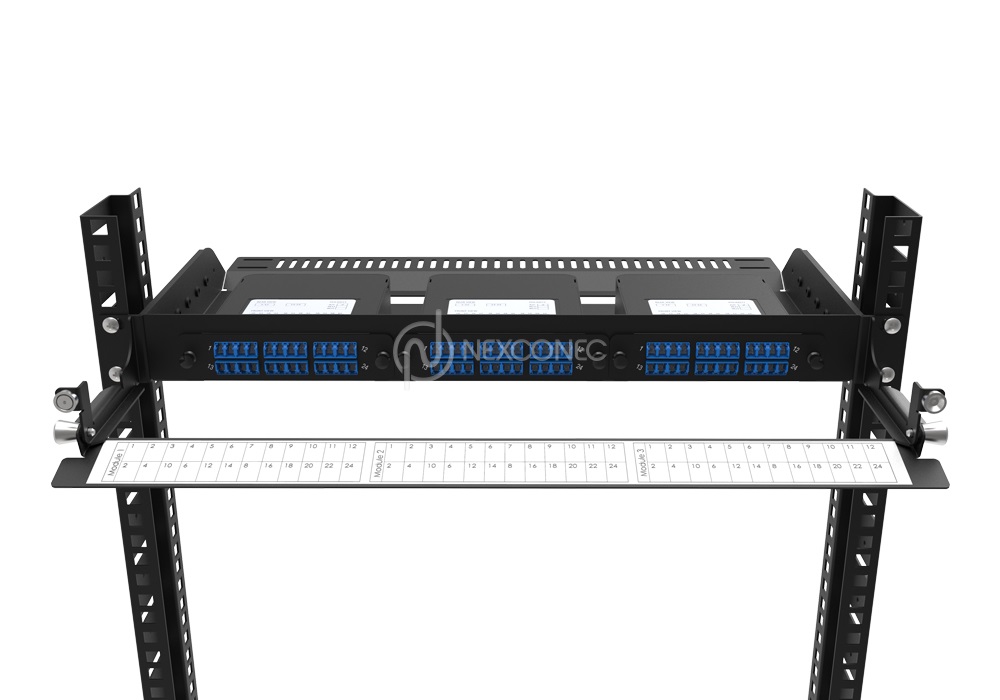

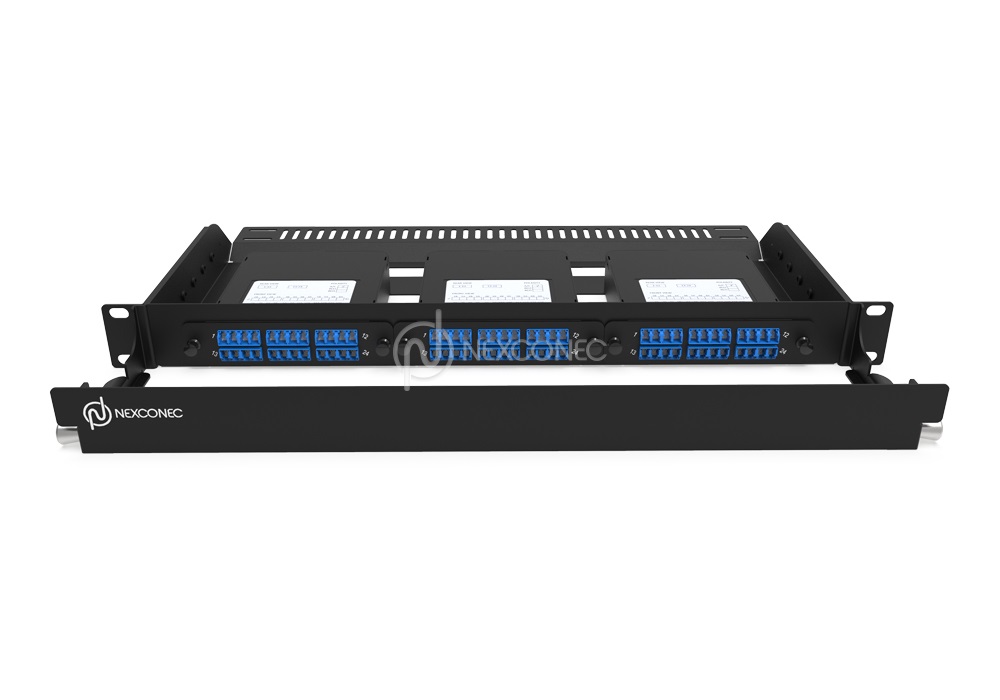

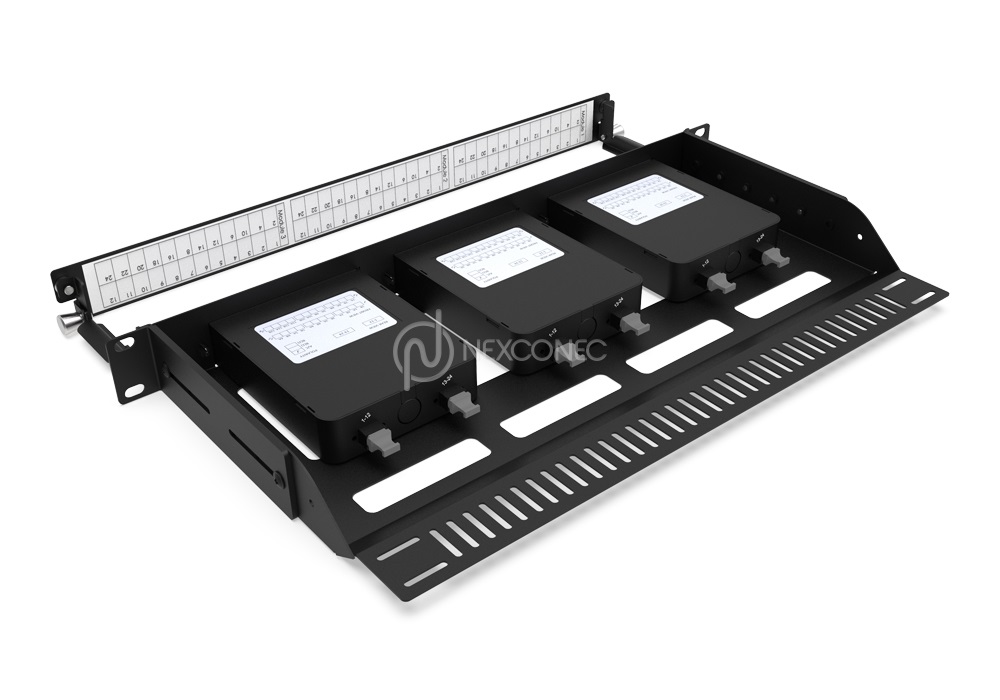

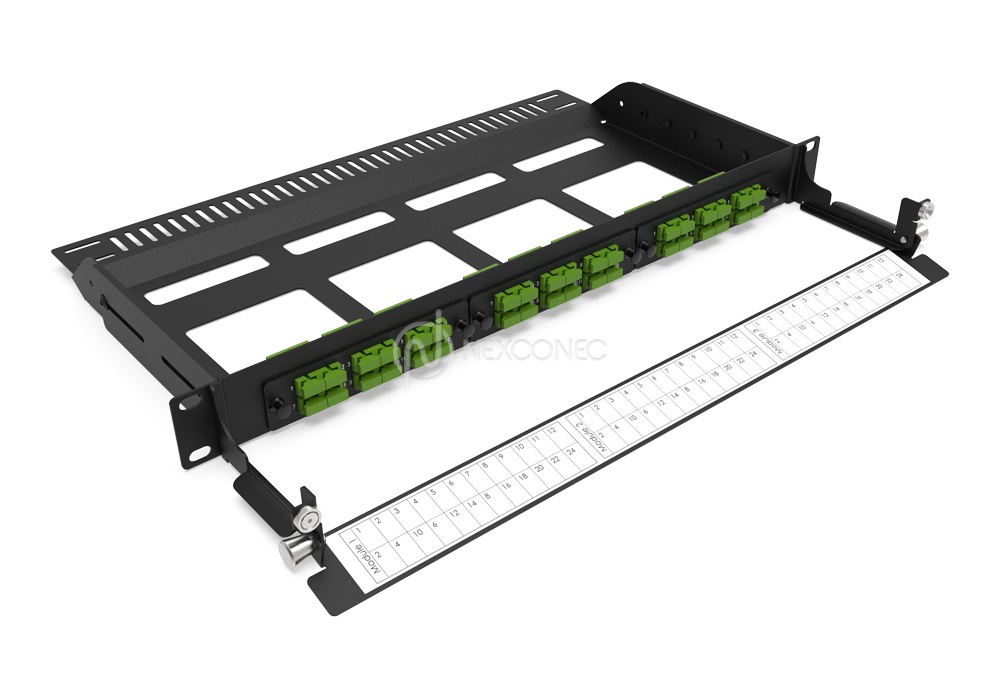

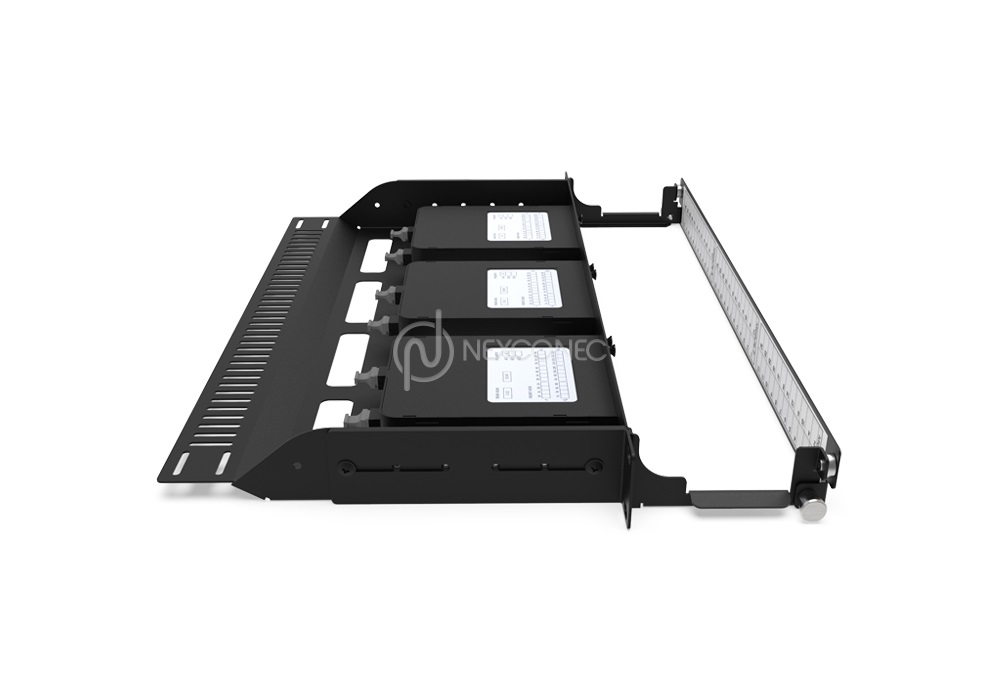

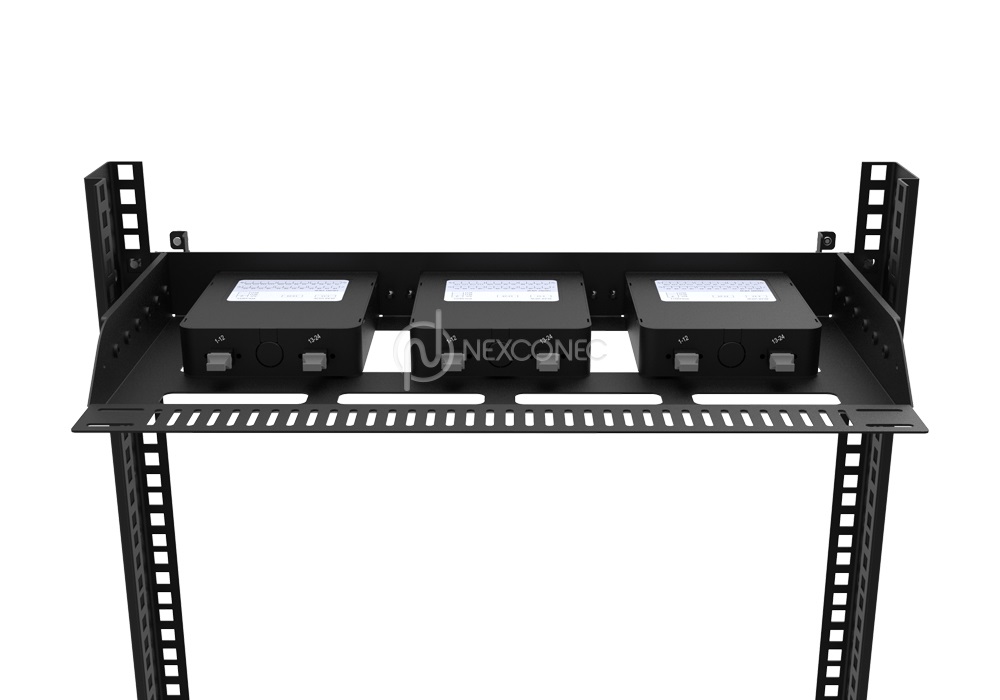

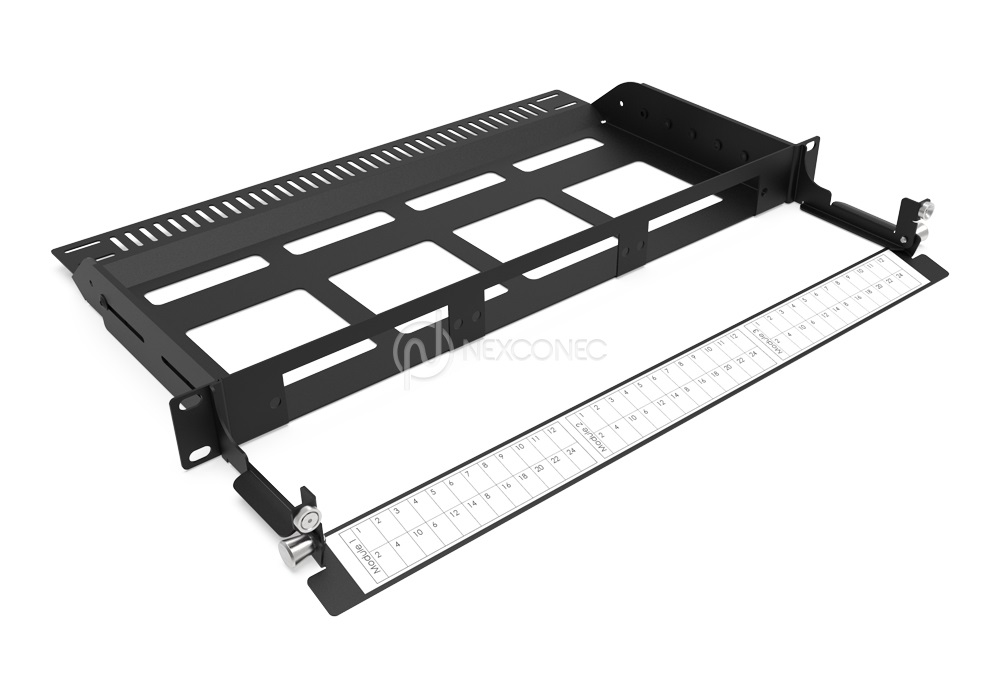

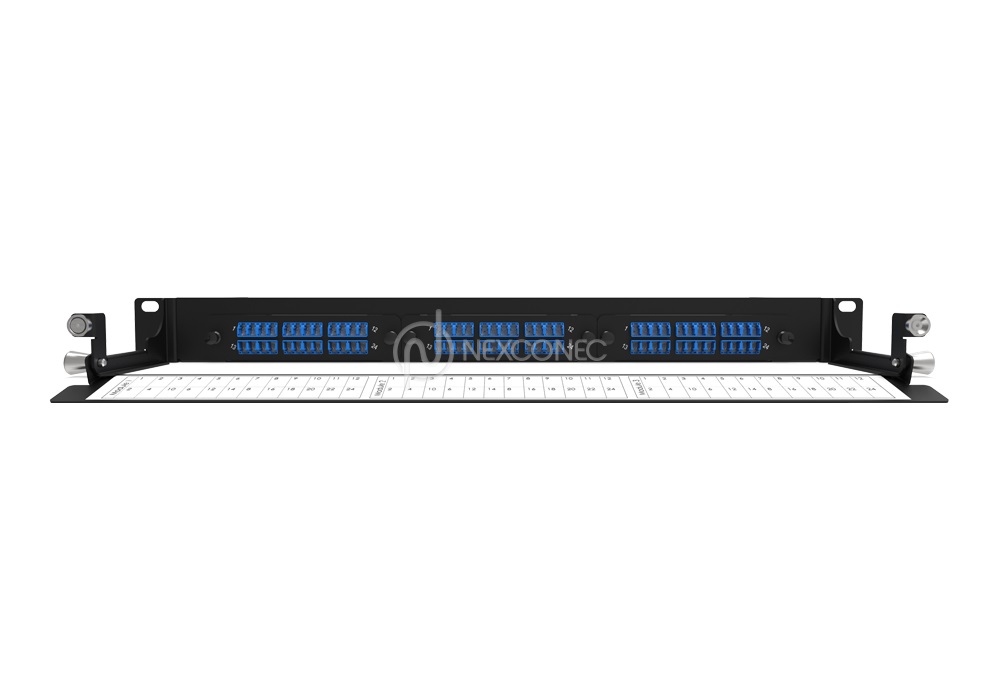

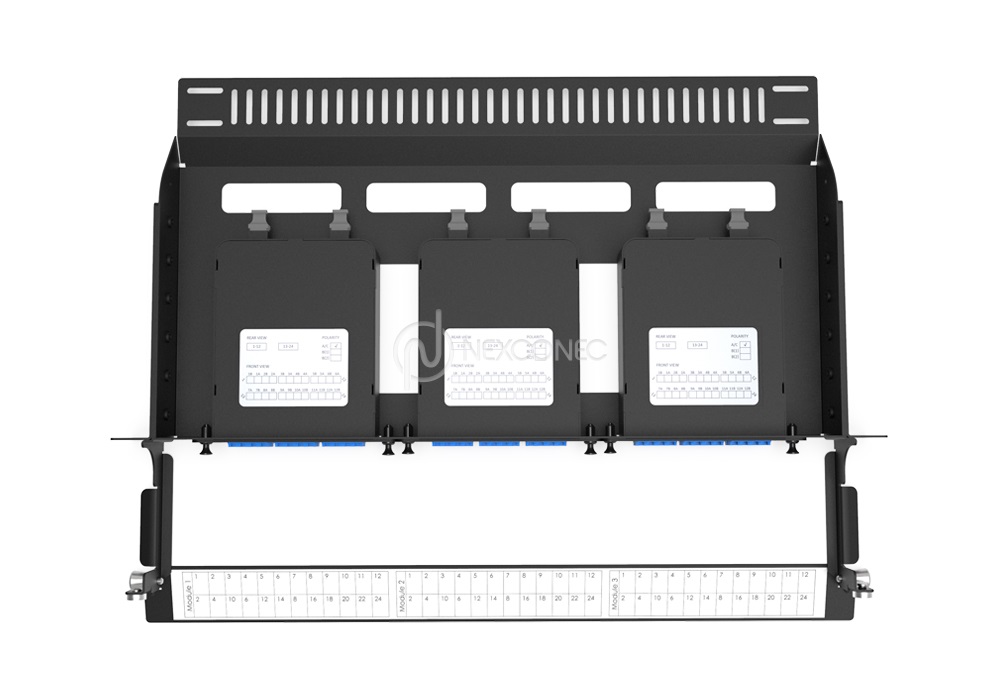

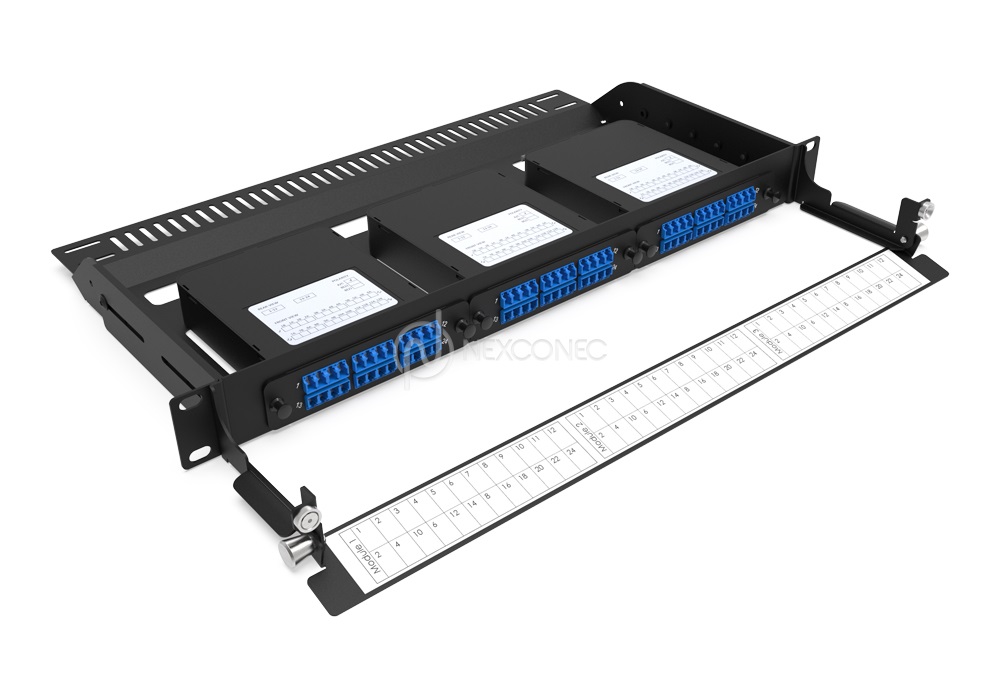

1U 3 Slots LGX Modular Fixed Frame - MP3PP07
NEXCONEC® high density fiber optic modular fixed frame is designed to provide housing for connections from an incoming preterm or trunks on the rear to patch cords on the front. The Open frame allows for quick and easy installation. It accepts up to 3 LGX Pass Thru Adapter Plates, MTP®/MPO Cassettes or Splice Cassettes.
Panel is supplied unloaded and the modules and plates are supplied separately.
PRODUCT HIGHLIGHTS
- 3 Slots LGX in 1U space
- Up to 72FO in LC / 36FO in SC
- Modular Flexibility and Robust Construction
- Modular with MPO, Splice Cassettes or Adapter plates
- Channel to route the patch cords to the rear of the rack within the 1U space
- RoHS, REACH and SVHC
FEATURES
- 3 Slots LGX in 1U space
- Up to 72FO in LC / 36FO in SC
- Modular Flexibility and Robust Construction
- Modular with MPO, Splice Cassettes or Adapter plates
- Channel to route the patch cords to the rear of the rack within the 1U space
- RoHS, REACH and SVHC
APPLICATIONS
- Datacenter & Enterprise network
- Indoor applications
- Accepts Indoor and Outdoor Pre-terminated cables, MTP®/MPO trunks and Splicing
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Rack 19” |
| Opening Type | Fixed |
| Access Type | Front access |
| Front Cable Management | Removable drop-down door |
| Cable Entry Direction | Rear |
| Rear Cable Management | Support Bar |
| Height Unit | 1U |
| Slot Type | LGX Modules and LGX Plates |
| Number of Slots | 3 Slots |
| Fiber Capacity | 72FO in LC / 36FO in SC |
| Material | Metal Part: Cold Rolled Steel | Plastic Part: PC+ABS |
| Housing Color | Metal Part: Black (RAL 9004) | Plastic Part: Grey Blue (RAL 5008) |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H) | 482 x 331.45 x 43.10 mm |
| Net Weight | 2.3 kg |
| Material Compliant | RoHS, REACH / SVHC |
| Part Number | Product Description |
|---|---|
| MP3PP07 | 1U 3 Slots LGX Modular Fixed Frame - Unloaded (Including Front Management) |
