1U 3 Slots LGX Sliding Patch Panel - MP3PP05

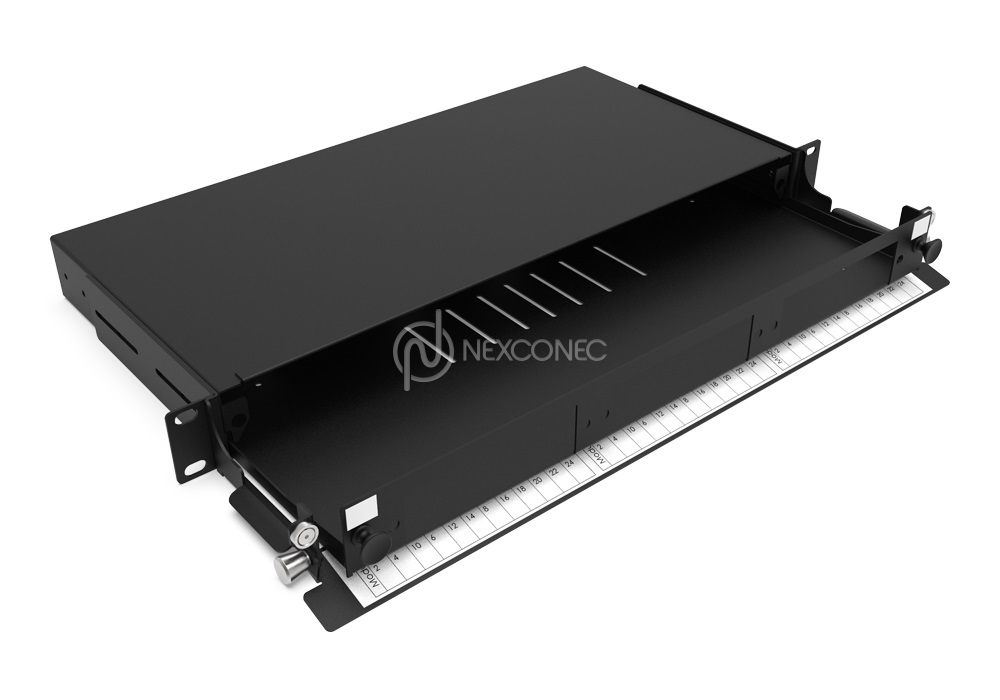

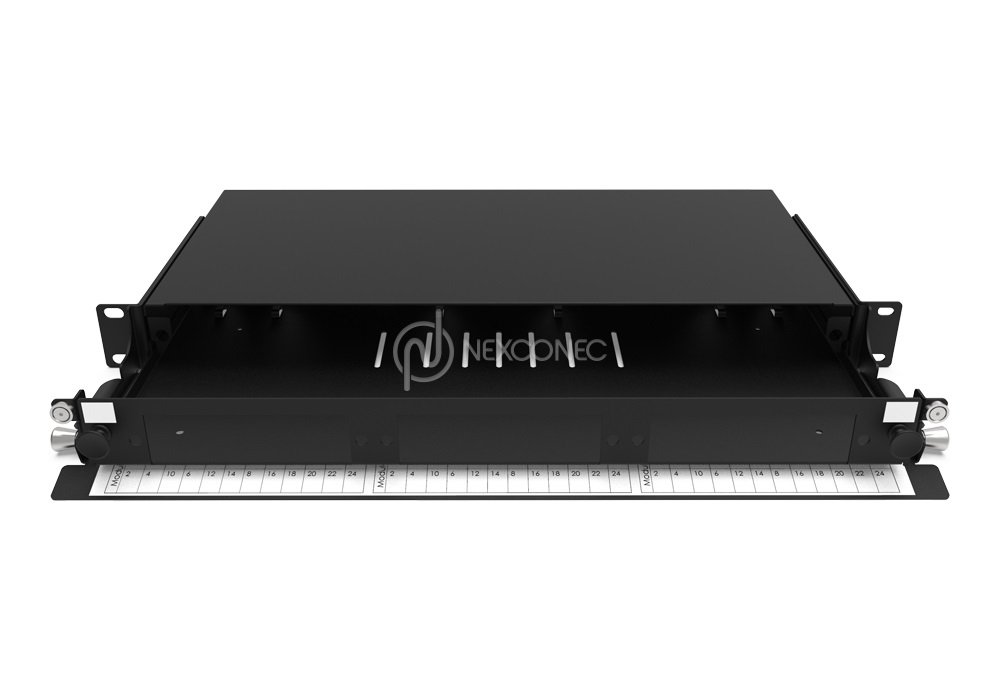

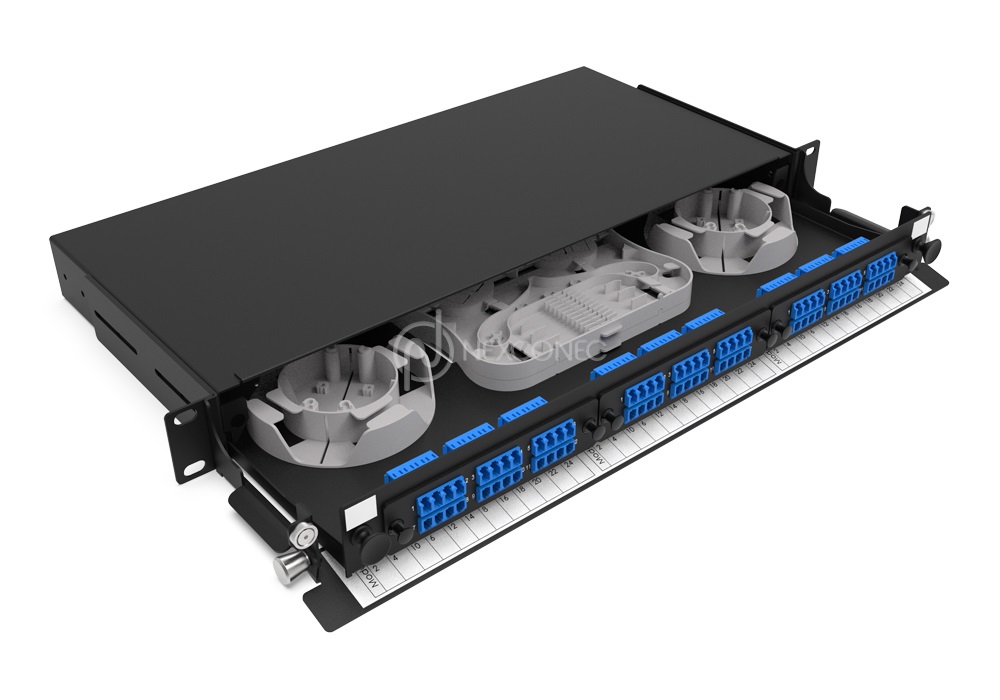

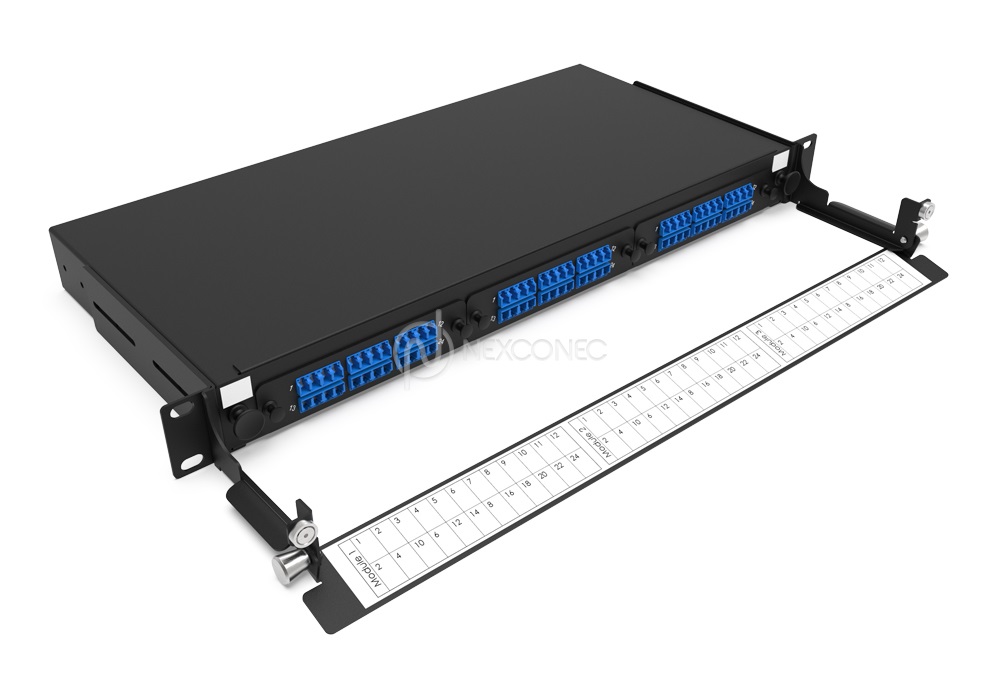

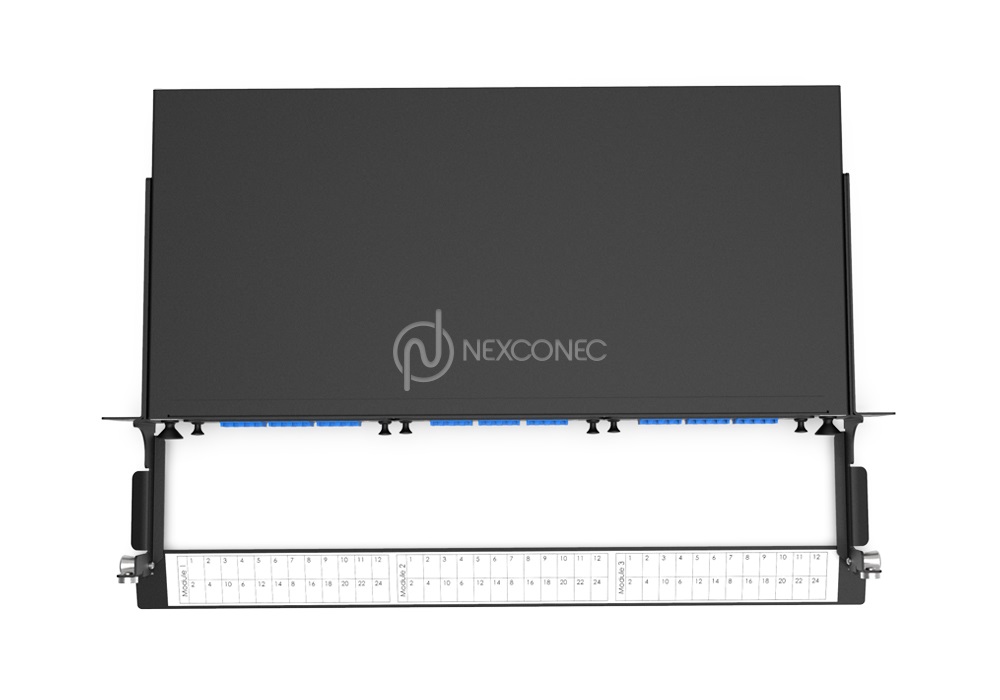

NEXCONEC^® sliding patch panel accepts 3 LGX pass-thru adapter plates for a total of 72FO in LC/36FO in SC configuration. Modular panel for multi-application with MTP^®/MPO System, Pre-terminated cables or conventional splicing. Easy front access with hinged cable management bar which provides protection of the patch cords as well as labelling.

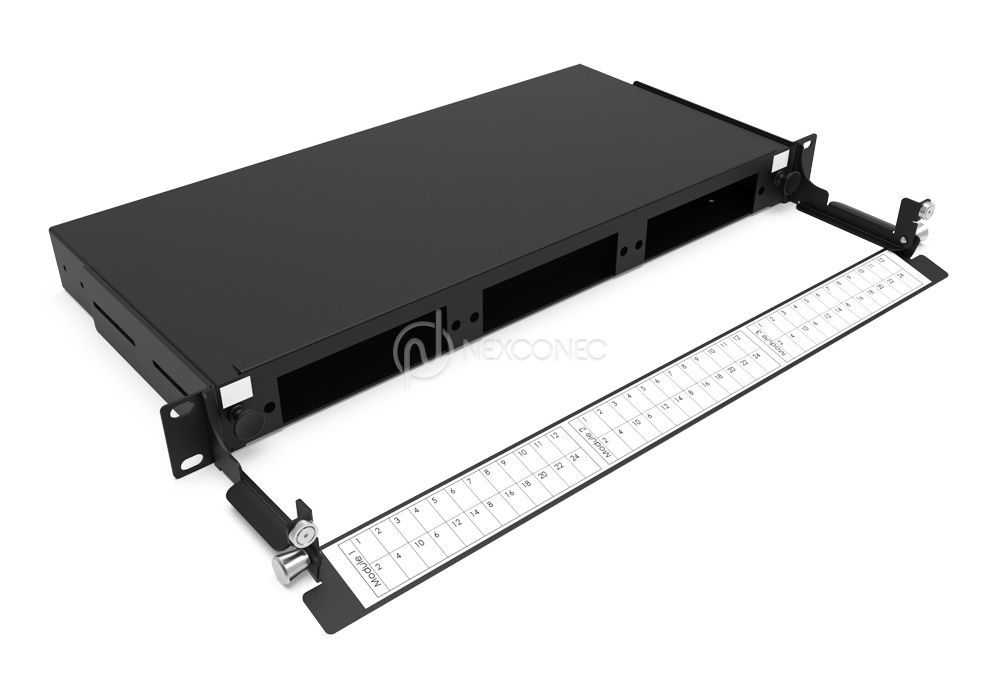

Panel is supplied unloaded and the modules and plates are supplied separately.

PRODUCT HIGHLIGHTS

3 Slots LGX in 1U space

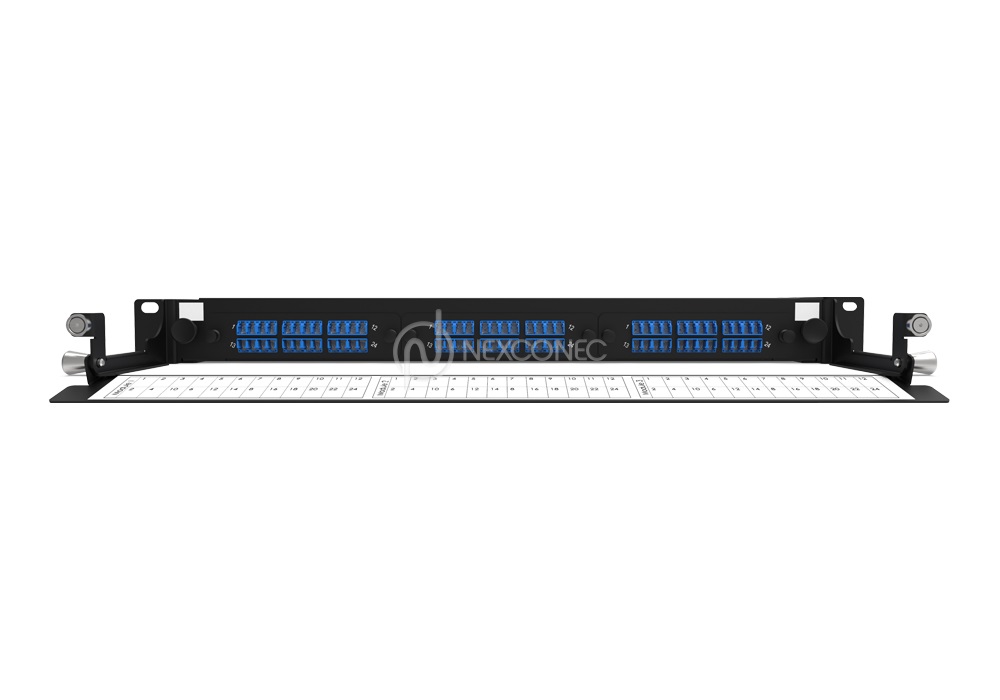

Up to 72FO in LC / 36FO in SC
Modular Flexibility and Robust Construction

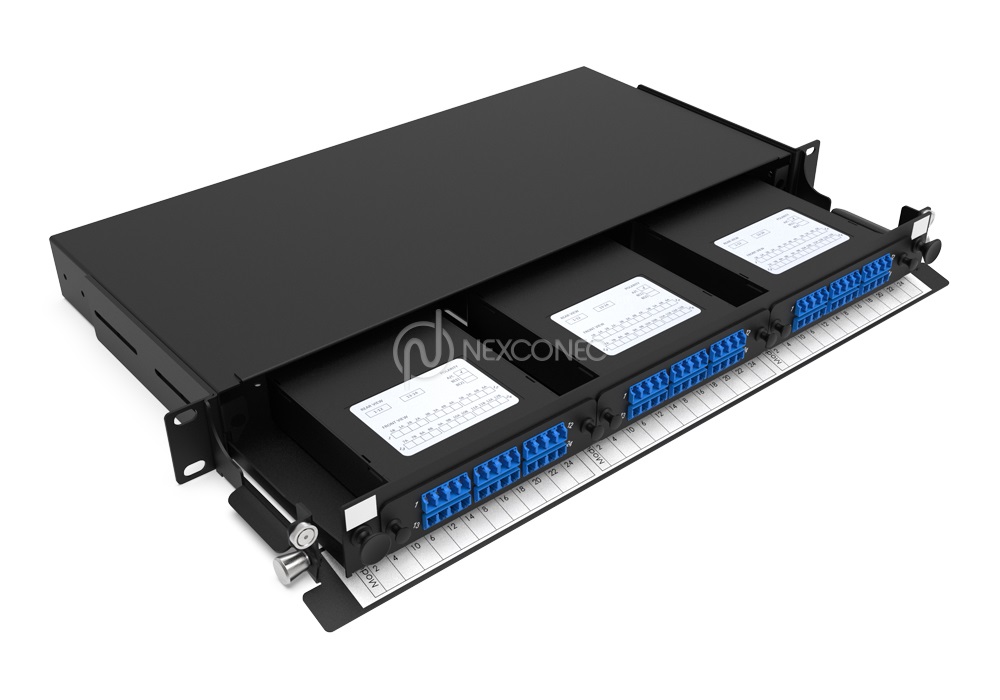

Modular with MPO, Splice Cassettes or Adapter plates
RoHS, REACH and SVHC
Accepts Indoor and Outdoor Pre-terminated cables, MTP^®/MPO trunks and Splicing

PRODUCT INFORMATION

DATASHEET.pdf	View	Download
TECHNICAL DRAWING.pdf	View	Download

FEATURES

3 Slots LGX in 1U space
Up to 72FO in LC / 36FO in SC
Modular Flexibility and Robust Construction
Modular with MPO, Splice Cassettes or Adapter plates
RoHS, REACH and SVHC

APPLICATIONS

Enterprise network & Datacenter
Indoor applications
Accepts Indoor and Outdoor Pre-terminated cables, MTP^®/MPO trunks and Splicing

SPECIFICATIONS

Parameters	Value

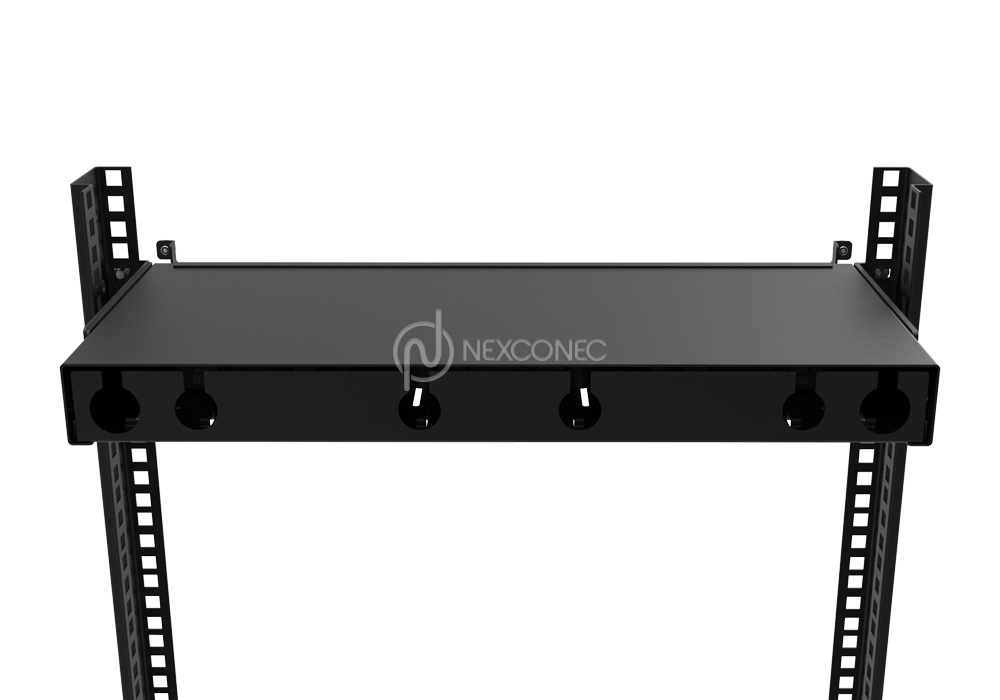

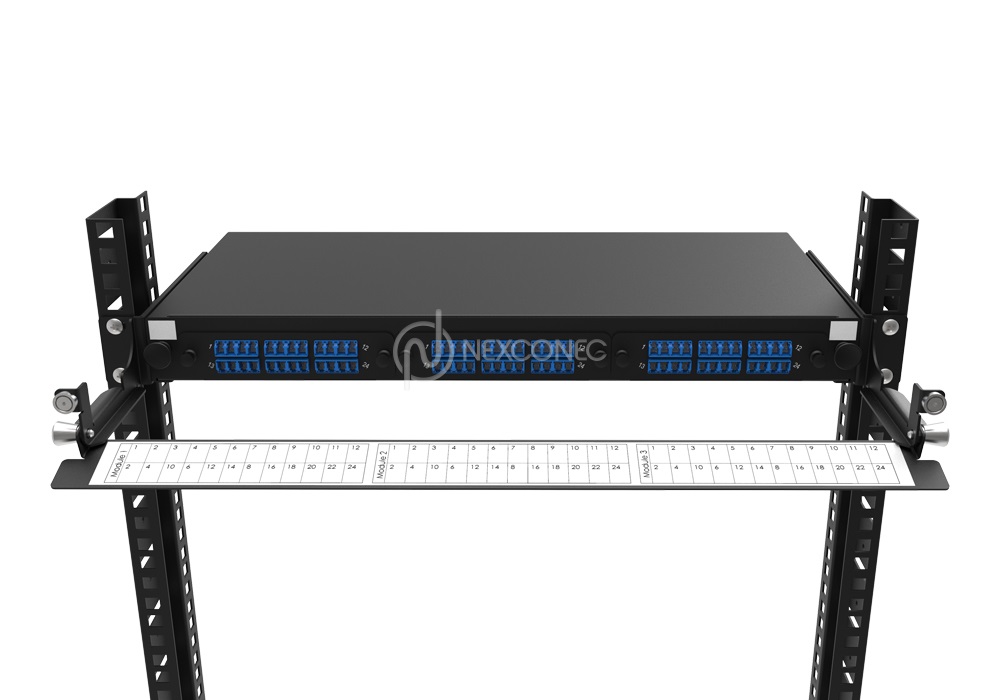

Mounting Type	Rack 19”
Opening Type	Sliding Tray
Access Type	Front access

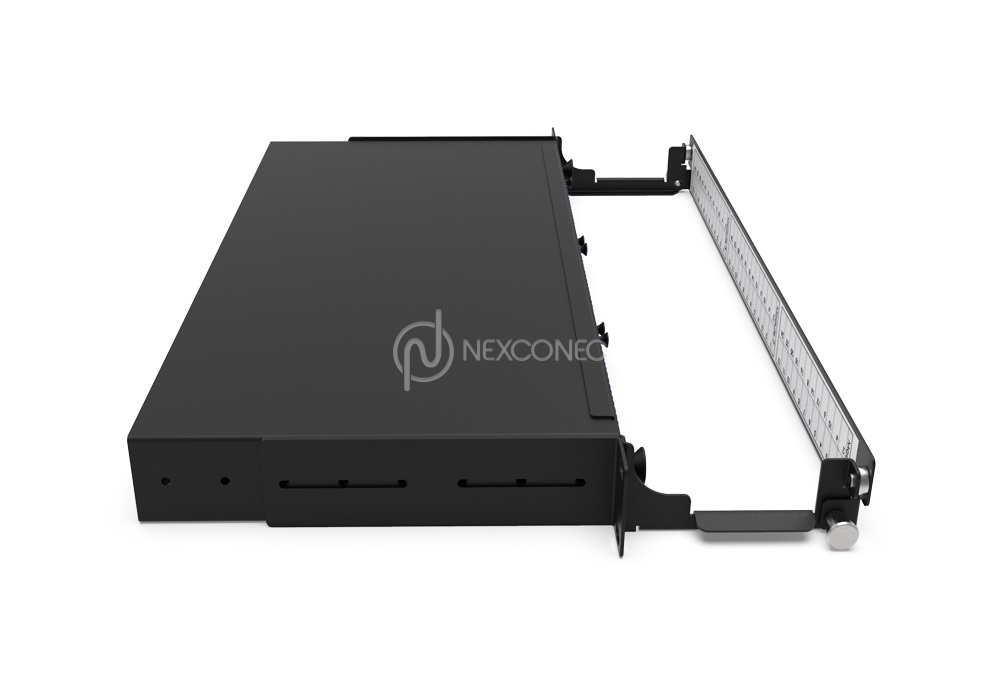

Front Cable Management	Removable drop-down door
Cable Entry Direction	Rear

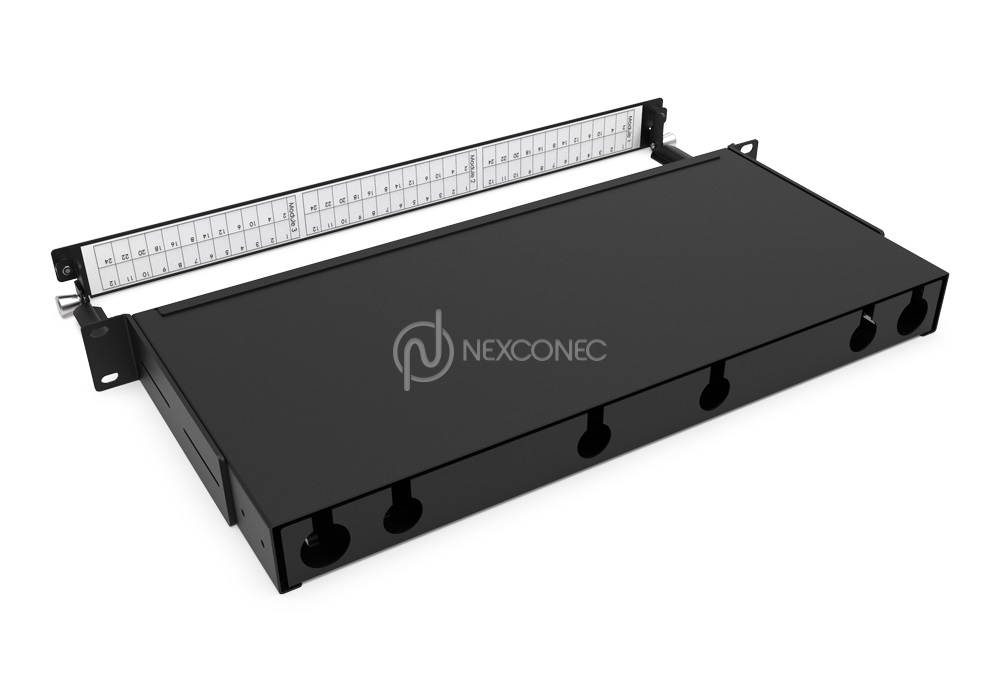

Rear Cable Management	6 Cable entries
Height Unit	1U
Slot Type	LGX Modules and LGX Plates
Number of Slots	3 Slots
Fiber Capacity	72FO in LC / 36FO in SC
Material	Metal Part: Cold Rolled Steel \| Plastic Part: PC+ABS
Housing Color	Metal Part: Black (RAL 9004) \| Plastic Part: Grey Blue (RAL 5008)
Application	Indoor IP20
Lockable	No
Dimensions (W x D x H)	485 x 296.8 x 44 mm
Net Weight	3 Kg
Material Compliant	RoHS, REACH / SVHC
